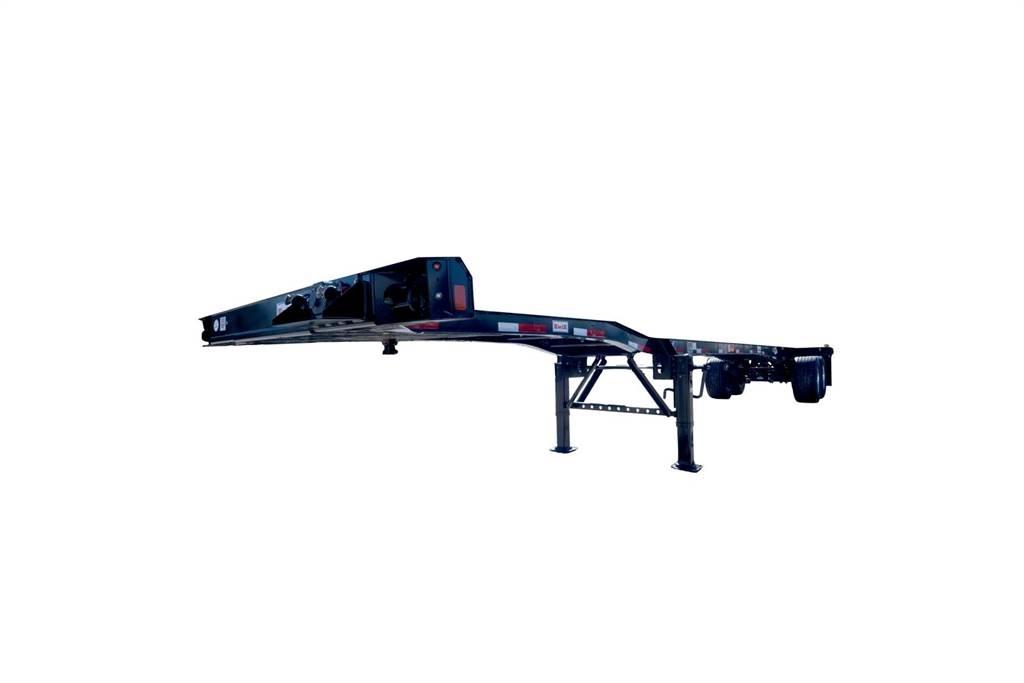

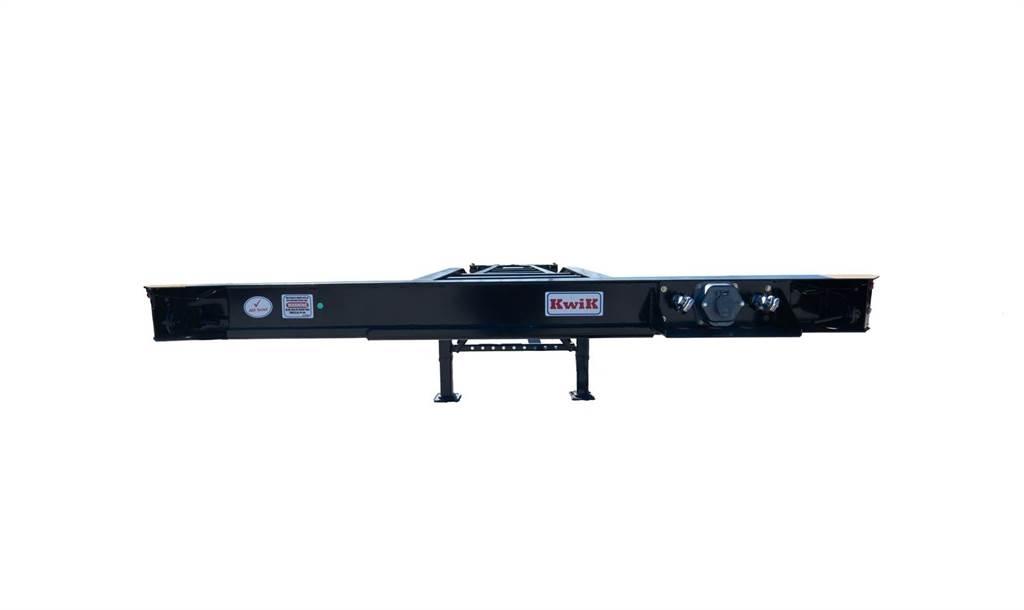

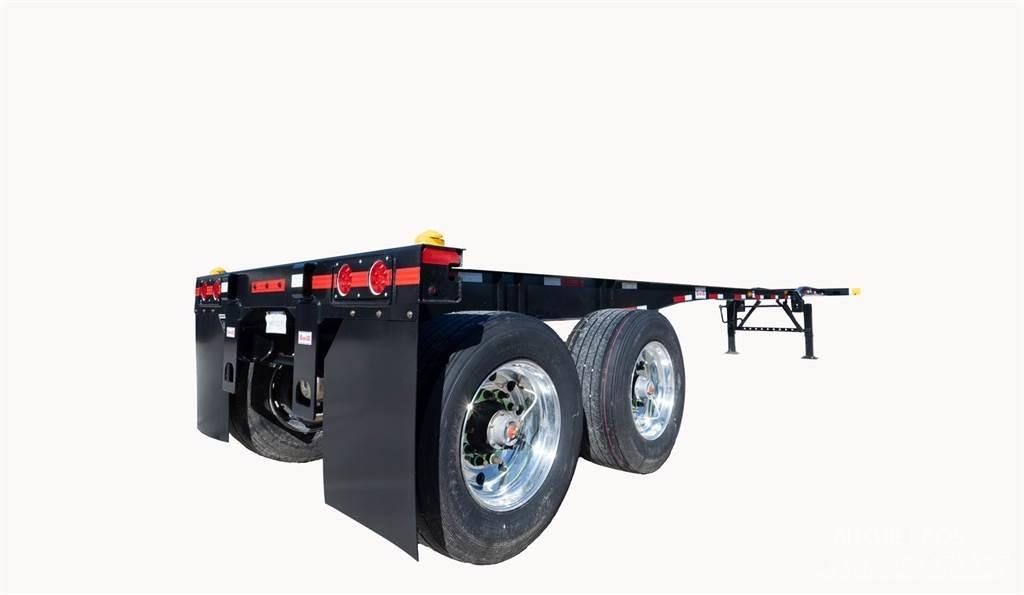

KWIK EQUIP Demountable trailers
KWIK EQUIP Demountable trailers
KWIK EQUIP Demountable trailers
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Demountable trailers
Brand / model
KWIK EQUIP
Year of Production
2024
Location
Houston, Texas
Country
United States
Mascus ID
913FC2F9

ITEM DETAILS

Internal stock no.
194024ULK
Extra information
41ft long Lightweight Tandem axle spring suspension chassis with hub-piloted Aluminum Super Single disc wheels and Super Single radial tires PURPOSE: Designed to carry high cube 40ft container, up to 64,000 lb (conditions apply) CONTAINERS: (1) 40ft HC Container STANDARD DIMENSIONS: LENGTH: 41’ WIDTH: 96” FIFTHWHEEL HEIGHT: 47’ KINGPIN SETTING: 26” AXLE SPREAD: 49” REAR DECK HEIGHT: 48” TARE WEIGHT: 4,400 LB (+/- 3%) (Chassis only) FRAME RATING: 65,500 LB GVWR: 65,000 LB (Chassis, Container & Net Payload) GCWR w/o Permit: 80,000 LB (Chassis, Container, Net Payload & Tractor) GCWR w/ Permit: 84,000 LB (Chassis, Container, Net Payload & Tractor) STANDARD SPECIFICATIONS / FEATURES: MAIN BEAMS: Fabricated beams, Flanges and webs are of high-grade strength steel CROSSMEMBERS: Fabricated / formed KING PIN: 1/4” plate with 2” diameter king pin. TWISTLOCKS: Standard front Pin locks and rear Non-retractable twistlocks LANDING GEAR: 2-speed 14” travel with cushion foot SUSPENSION: 49” Spread Tandem Axle Overslung with Fabricated Undermount Hangers AXLES: 71 ½” Track, 5” Round, 22,500 lbs capacity, with 49” centers HUBS & DRUMS: Light weight hubs and drums – 10-hole Hub Piloted BRAKES: 16 ½” X 7” quick-change brakes with non-asbestos lining WHEELS: (4) 8.25 X 22.5 10-hole SUPER SINGLE ALUMINUM DISC Wheels TIRES: (4) 445/50R22.5 Super Single tires BRAKE SYSTEM: Standard Valve System for service and emergency brakes. 2S/1M ABS system ELECTRICAL SYSTEM: 12v w/modular wiring and plug type connectors. 7-way pin electrical plug for ABS System. Sealed wiring harnesses. LED Lights with flange mounts PAINT: Zinc rich primer with Topcoat Urethane finish COLOR: BLACK (Standard) MISCELLANEOUS: 24x30 KWIK Mudflaps, logos, decals, Conspicuity Striping, Trucklite Registration Holder, etc., ADDNL FEATURES:  Metal Dock Bumpers  PSI Tire Pressure System  Loose Lug nut indicatorsShow more
