BIK FC-67

Price excl. GST

POA

Compnay LOGO
Images9

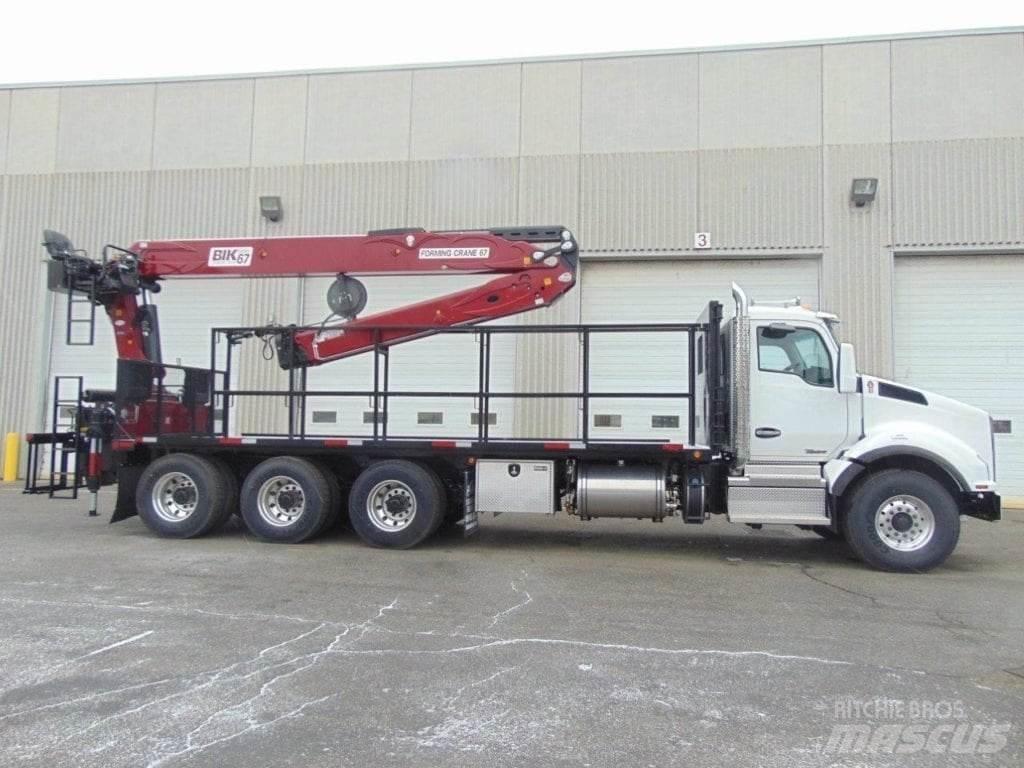

BIK FC-67 Truck mounted cranes

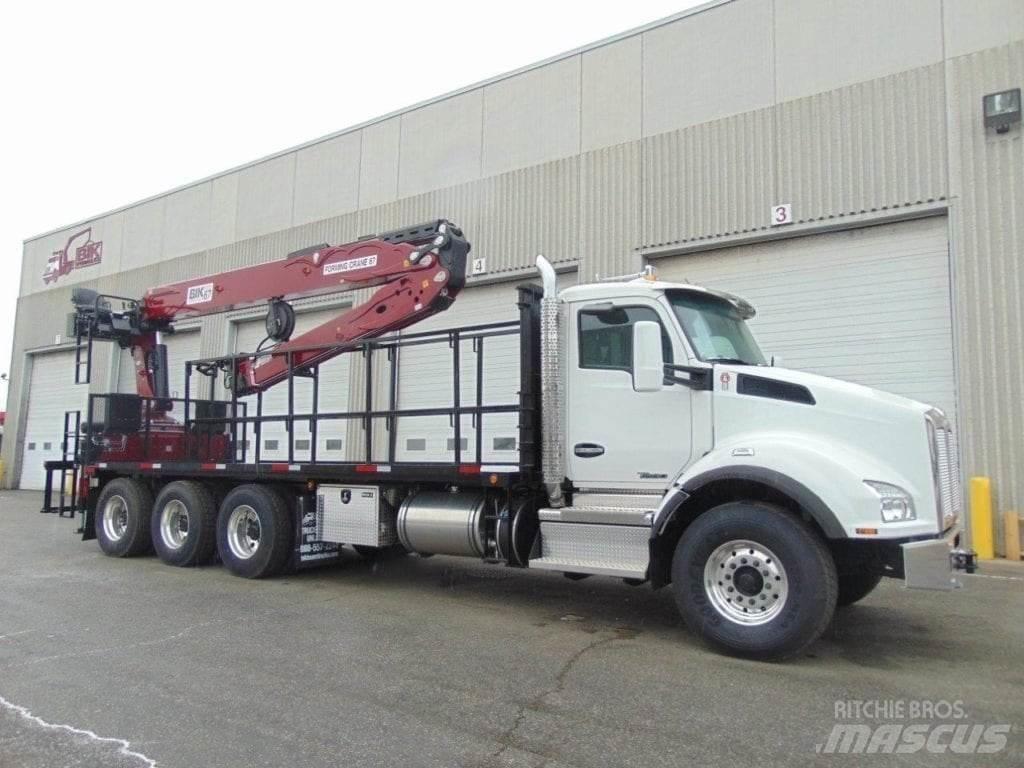

BIK FC-67 Truck mounted cranes
BIK FC-67 Truck mounted cranes
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Truck mounted cranes
Brand / model
BIK FC-67
Condition
New/unused
Location
Milford, Massachusetts
Country
United States
General grade
1
2
3
4
5
Mascus ID
F5E6594B

ITEM DETAILS

Internal stock no.
FC-67
Extra information

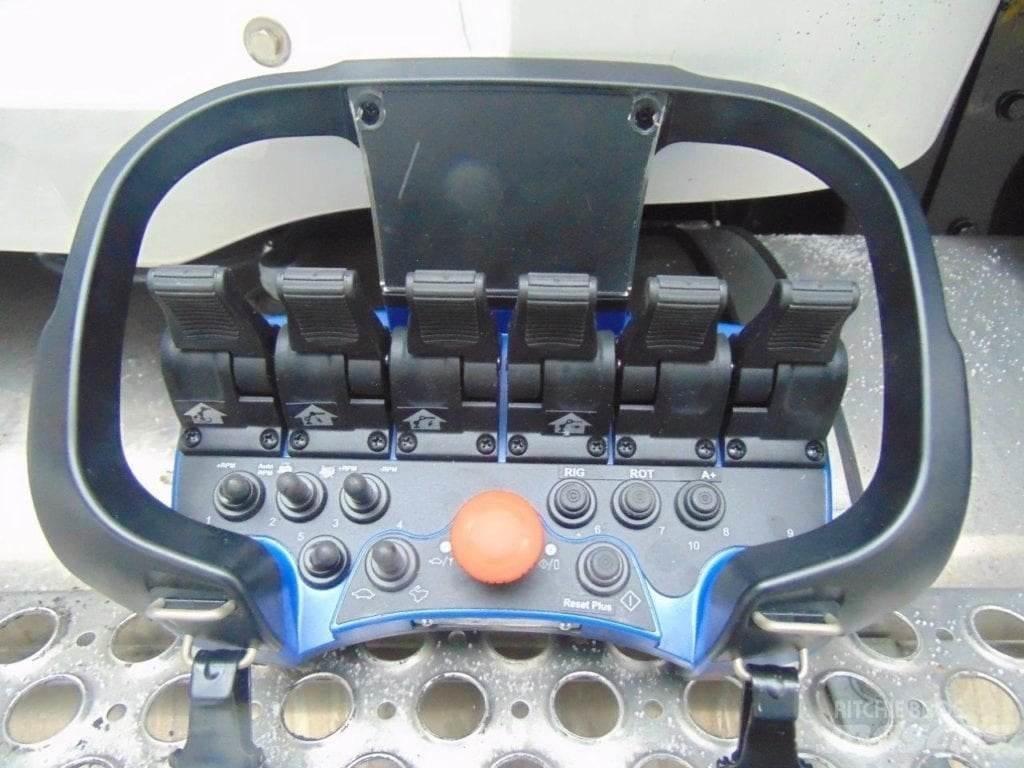

BOOM DETAILS New – BIK Series Forming Crane FC-67 Unloader –  4 Hydraulic Extensions, (simulated 70’ rearward reach w/reverse mount)   Horizontal Capacities 7,400 lb ... 28’ 3,100 lb ... 55′ 2,500 lb ... 62′ 2,200 lb ... 67′ Internal cylinders on all boom extensions, Outer boom cylinder guard Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout Extra Wide Stabilizers – 24’ 3” span,  hydraulic out and down type Flanged holding valves, double acting check valve for the down movement of the stabilizers Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom DANFOSS Valve – At Top Seat Level controls  full access catwalk Hydraulic hook rotator  with T-hook at end of boom SCANRECO Proportional Radio Remote Control  Included: 2-batteries, in-cab charger, and back-up cord, Load Tested & Installed end of frame on pre-engineered sub base. DECK DETAILS New  – 23’ 4”  x 102” LOW PROFILE Steel Checker plate Flat Deck With Center Divider Checker plate steel deck surface 60” + headboard with two sets of straps and winches ahead of the headboard 2” lip around deck for form cage handling 3” cross members side welded for low profile deck Expanded metal removable rear tailboard Winch bar holder and winch bar, ladder, reflectors and 5-side lights Integrated torque box with X-bracing and sheer plating mount to frame for optimum stability Primed/painted gloss black. TRUCK DETAILS New – Kenworth T880 Tri-Drive 4-axle  truck:    89,000 lbs GVWR Cab white   Paccar 485 HP  – 1,650 ft/lb torque, Jake Brake Eaton Ultrashift Plus 18 spd automated trans 20,000 LB front  steer axle with  425 / 65R22.5 tires on Aluminum Rims 69,000 LB Rears on Hendrickson Primax Suspension with 11R22.5 tires on aluminum outer rims 54” spread at ta Double Frame Truck features include:    A/C, Tilt/Telescopic steering,  power windows & locks,  AM/FM/MP-3 w/bluetooth, air driver’s seat and  standard pass seat, cruise,  htd mirrors, stainless exterior sun visor, Air ride cab, 4-wheel lock ups, trailer air tow package, Chromed Front and side Grille & Bumper, 100 gal alum fuel tank,  etc.. Options Included: (1) x 36” Aluminum Toolbox  installed,    – Wireless Proportional radio remoTE LED spot lighting on the boom 1” drawplate at rear (for possible pintle hook) Junction box at top seat for full engine controls   Show more

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts United States
