INFO

Type of Product Group
Pedestrian stacker
Brand / model

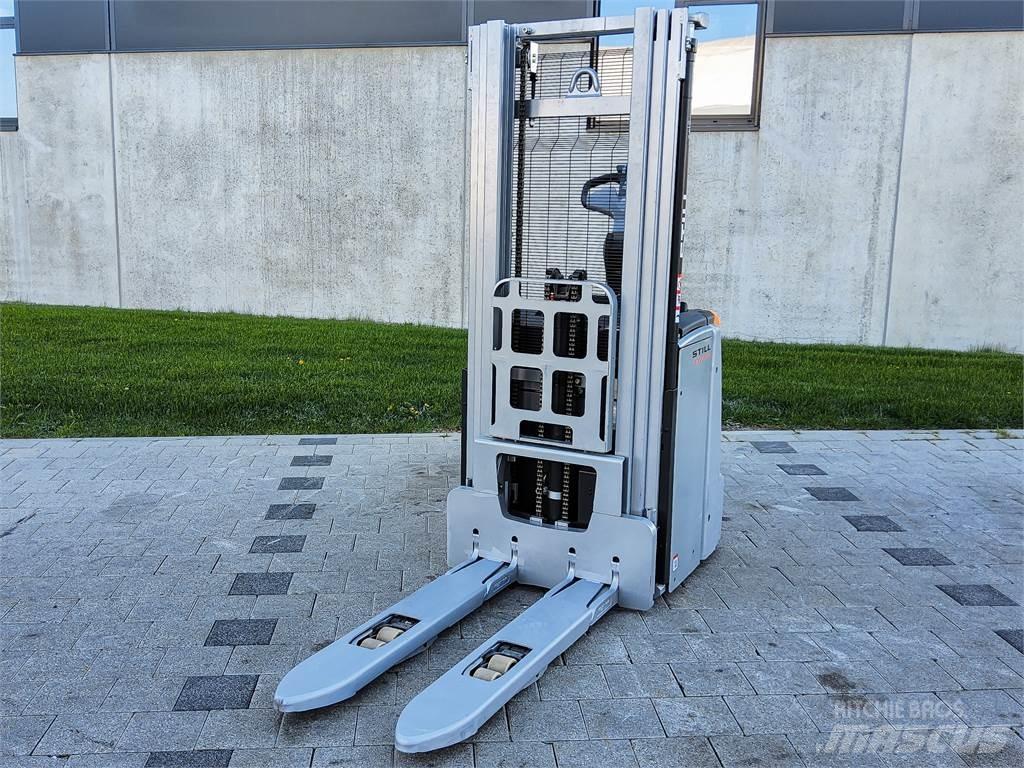

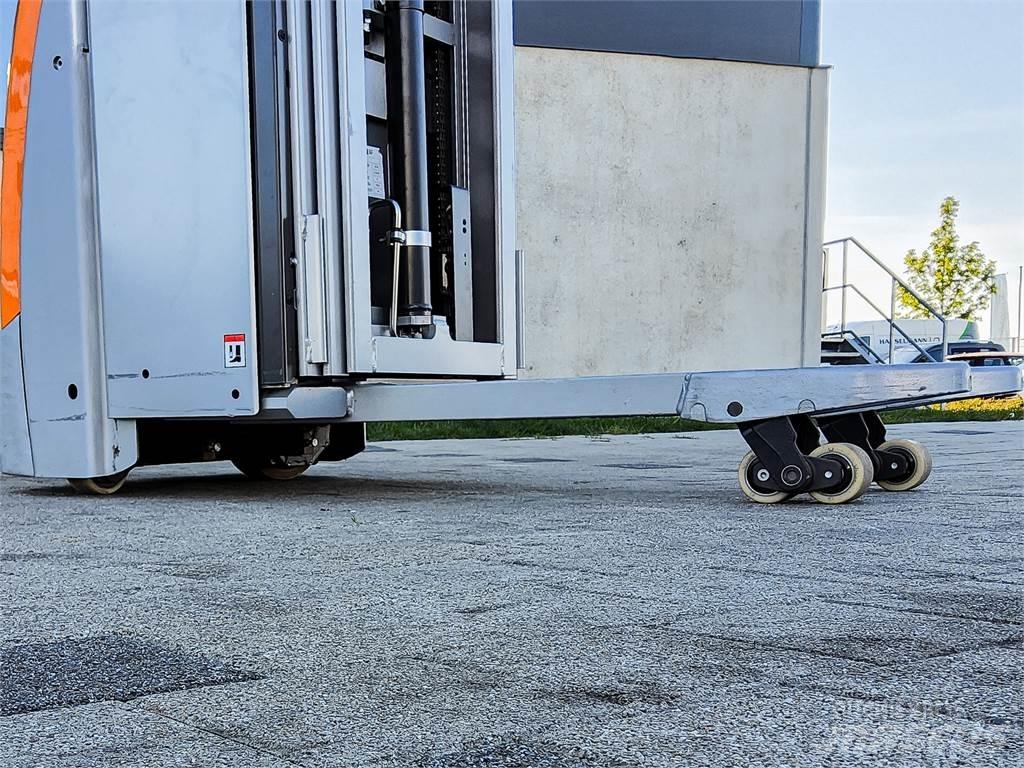

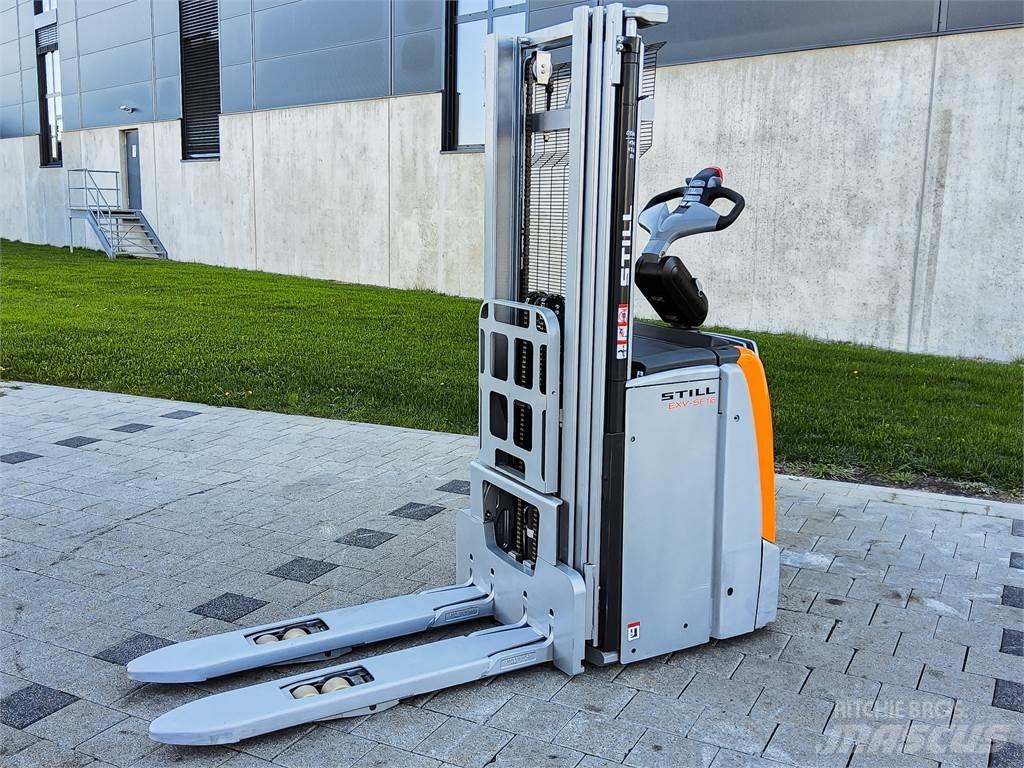

Still EXV SF16i
Year of Production
2022
Hours of operation
228 h
Country
Germany
Mascus ID
818D7945

ITEM DETAILS

Power type
Electric
Internal stock no.
g06398
Maximum lift capacity
1,600 kg
Maximum lift height
4,350 mm
Power Output
2.21 kW (3 hp)
Extra information
· Bedienung Geh/Stand · Nenntragfähigkeit 1600 (2000)kg · Lastschwerpunktabstand 600 mm · Lastabstand 724/646 mm · Achslast mit Last antriebsseitig/lastseitig 979/1850 kg · Achslast ohne Last antriebsseitig/lastseitig 962/268 kg · Bereifung Polyurethan · Reifengröße antriebsseitig mm ⌀ 230 x 90 · Reifengröße lastseitig mm ⌀ 85 x 85 (⌀ 85 x 60) · Stützrollengröße mm ⌀ 150 x 50 · Spurweite antriebsseitig/lastseitig 534// 380/500 mm · Höhe Deichselgriff in Fahrstellung min./max. 1175/1380 · mm · Gabelhöhe gesenkt mm 86 · Arbeitsgangbreite bei Palette 800 x 1200 längs 2390 / · 2777 mm · Wenderadius 1507/1894 mm · Fahrgeschwindigkeit mit/ohne Last km/h 4,0/4,0 6,0/6,0 8,0/10,0 · Hubgeschwindigkeit mit/ohne Last m/s 0,15/0,30 · Senkgeschwindigkeit mit/ohne Last m/s 0,40/0,35 · Max. Steigfähigkeit kB 5 mit/ohne Last %: 10,0/22,0 · Betriebsbremse Elektromagnetisch · Fahrmotor, Leistung S2 = 60 min kW 2,3 · Hubmotor, Leistung bei S3 = 15 % kW 3,2 · Batterie nach DIN 43531/35/36 A, B, C, nein 2PzS · Batteriespannung/Nennkapazität K V/Ah 24/230 · Li-Ion: 24/205 · Batteriegewicht ±5 % (herstellerabhängig) kg 212 · Energieverbrauch nach DIN EN 16796 kWh/h 0,84 · Art der Fahrsteuerung AC-Steuerung · Schalldruckpegel (Fahrerohr) dB(A) ≤66Show more
