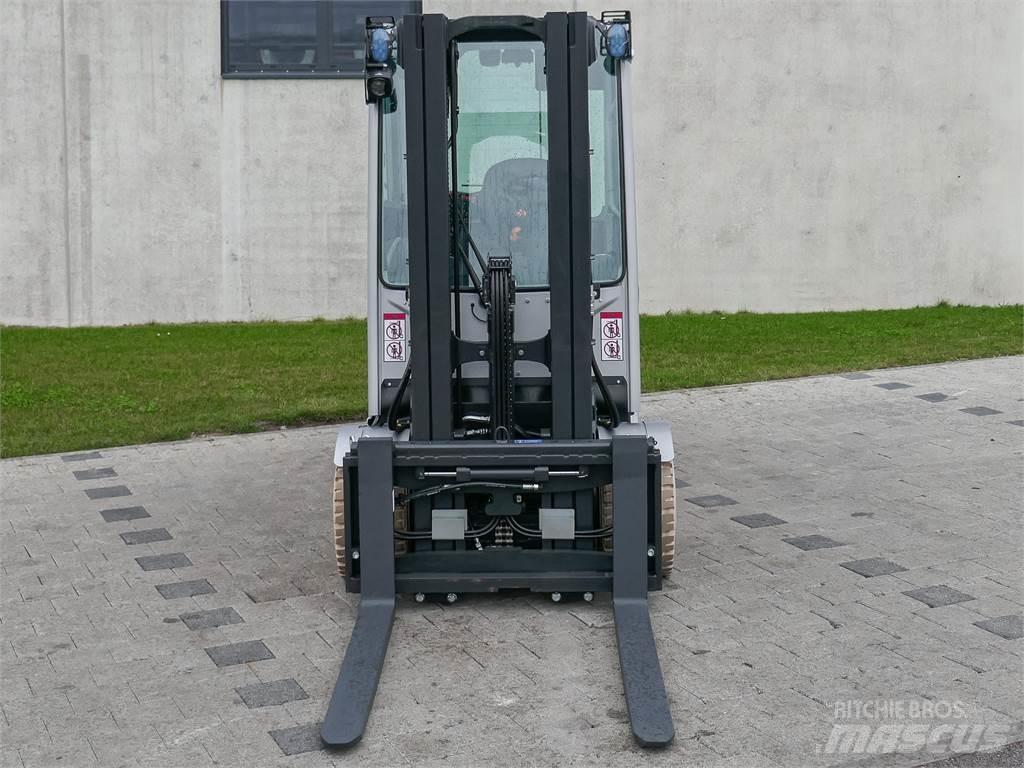

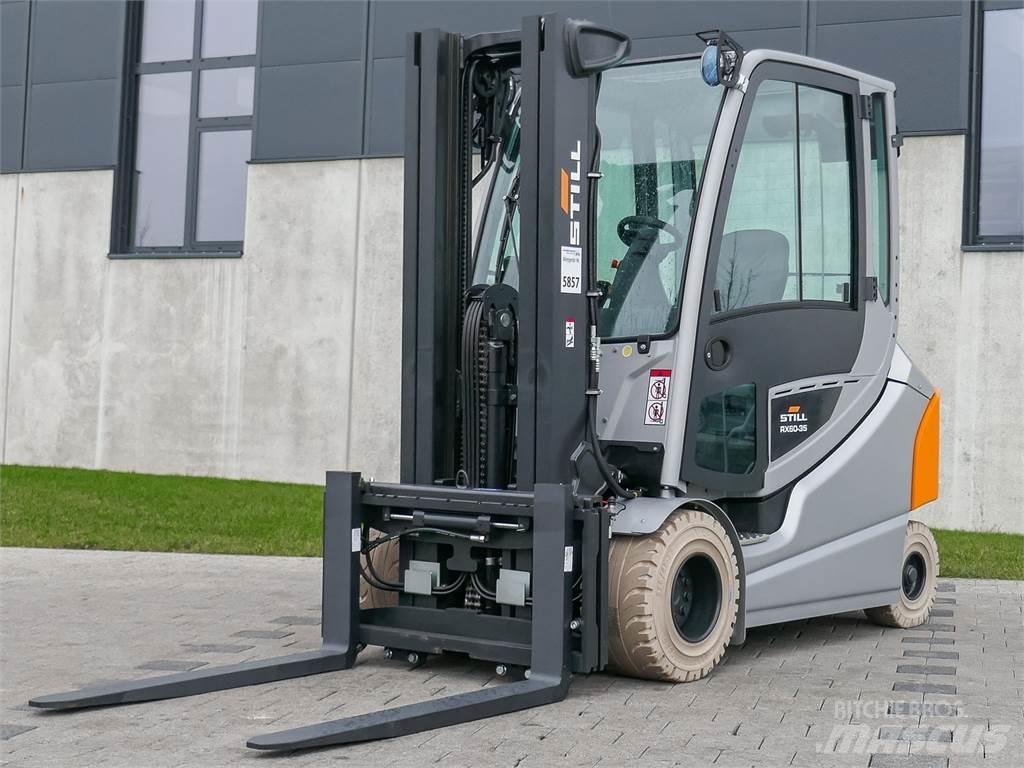

Still RX 60-35 L
Price excl. GST
POA
Print
INFO
Type of Product Group
Electric forklift trucks
Brand / model
Still RX 60-35 L
Year of Production
2023
Hours of operation
126 h
Country
Germany
General grade
1
2
3
4
5
Mascus ID
B984B2A8
ITEM DETAILS
Internal stock no.
5857
Maximum lift capacity
3,500 kg
Maximum lift height
4,680 mm
Free lift
1,560 mm
Drive height
2,190 mm
Lift mast
Triplex
Fork length
1,200 mm
Cabin
Closed cabin

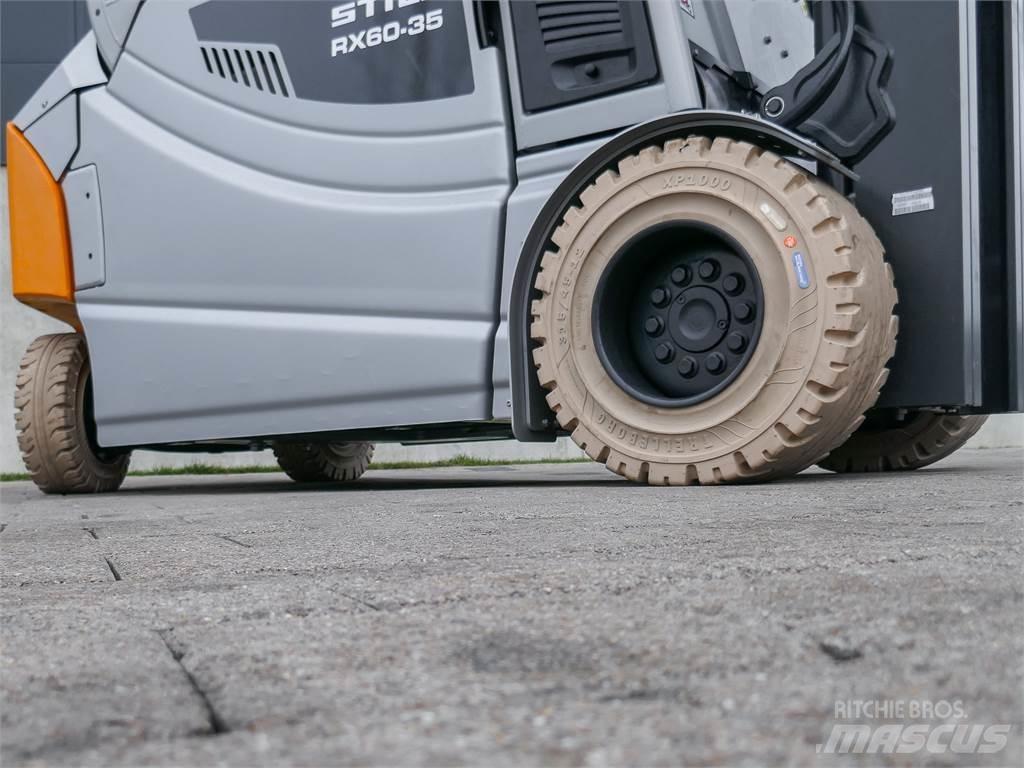

Tyre type
Super elastic
Engine
Electric - Elektro
Power Output
16.9 kW (23 hp)
Transport weight
3,998 kg
Transport dimensions (LxWxH)
2400 x 1320 x 2190 mm
Front tyre size
315/45-12
Rear tyre size
18x7-8
Attachments
3. Ventil, 4. Ventil, Arbeitsscheinwerfer hinten, Arbeitsscheinwerfer vorn, Heizung, Vollkabine, Safety Light, Safety Pilot,
Extra information
- Bedienung Sitzgerät
- Tragfähigkeit/Last 3500kg
- Lastschwerpunkt 500 mm
- Lastabstand 468 mm
- Achslast mit Last vorn/hinten kg 8042/958
- Achslast ohne Last vorn/hinten kg 2662/2838
- Spurweite vorn/hinten mm 1002/900
- Neigung Hubgerüst/Gabelträger vor/zurück ° 7/7
- Arbeitsgangbreite bei Palette 1000 x 1200 quer mm 3941
- Arbeitsgangbreite bei Palette 800 x 1200 längs mm 4141
- Wenderadius 2273 mm
- Kleinster Drehpunktabstand 649 mm
- Fahrgeschwindigkeit (Blue-Q/Standard/Sprint) mit Last km/h 18/18/20
- Fahrgeschwindigkeit (Blue-Q/Standard/Sprint) ohne Last km/h 18/18/21
- Hubgeschwindigkeit (Plus*//Standard Performance) mit Last m/s 0,53//0,44
- Hubgeschwindigkeit (Plus*//Standard Performance) ohne Last m/s 0,57/0,51
- Senkgeschwindigkeit mit Last m/s 0,50
- Senkgeschwindigkeit ohne Last m/s 0,43
- Zugkraft (Plus*//Standard Performance) mit Last N 10300/7590
- Zugkraft (Plus*//Standard Performance) 4 ohne Last N 10650/8015
- Max. Zugkraft (Plus*//Standard Performance) 4 mit Last N 20900/16920
- Max. Zugkraft (Plus*//Standard Performance) 4 ohne Last N 20290/17170
- Steigfähigkeit (Plus*//Standard Performance) 4 mit Last % 17,8/12,9
- Steigfähigkeit (Plus*//Standard Performance) 4 ohne Last % 28,2/21,9
- Max. Steigfähigkeit (Plus*//Standard Performance) 4 mit Last % 24,2/20,6
- Max. Steigfähigkeit (Plus*//Standard Performance) 4 ohne Last % 2482/28,2
- Beschleunigungszeit 15 m (Plus*//Standard Performance) mit Last s 5,7/6,3
- Beschleunigungszeit 15 m (Plus*//Standard Performance) ohne Last s 5,0//5,4
- Betriebsbremse Hydraulisch betätigte Lamellenbremse
- Umschlagleistung (Plus*//Standard Performance) t/h 258/245
- Energieverbrauch bei Umschlagleistung (Plus*//Standard Performance) kWh/h 8,6/8,0
- Arbeitsdruck für Anbaugeräte bar 250
- Ölstrom für Anbaugeräte l/min 55
- Schalldruckpegel LpAZ (Fahrerplatz) dB(A) 70
- Humanschwingung: Beschleunigung nach EN 13059 m/s² 0,57
- Anhängerkupplung, Art/Typ DIN Bolzen
