Dawson EMV 300
Price excl. GST
POA
Print
INFO
Type of Product Group
Vibratory pile drivers
Brand / model
 Dawson EMV 300
Year of Production
2017
Condition
Reconditioned
Location
Etten Leur, Noord-Brabant
Country
Netherlands
General grade
1
2
3
4
5
Mascus ID
85326125
ITEM DETAILS
Internal stock no.
455XX
Last Inspection Time
2024-12-12
Amount of previous owners
2
Fits to following machines
12-35t excavators with a minimal oilflow of 130 ltr/min. at 250 bar.
Manufacturing / Serial number
455XX
Transport weight
965 kg
Engine manufacturer
Parker hydraulics
Transport dimensions (LxWxH)
1011 x 615 x 1200  mm
Tyre brand
not applicable
Condition info/guarantee
warranty expired
Front tyres remaining
not applicable
Rear tyres remaining
not applicable
Production country
United Kingdom
Delivery terms
EXW
Certificates
CE
Attachments
2m hose bundle and transport frame are included
chain to lift sheet pile is included
Fork and pin or quick hitch connection optionally available
Please note we have multiple units available and pictures might show options which are not included. Call or email us for your specific offer.
Documents
Extra information
The Dawson vibratory hammers are extremely reliable and are easy to install and operate. These high frequency vibratory hammers have a great balance beween weight and performance. The EMV 300 can be used on most excavators in the
class of 12-35t.

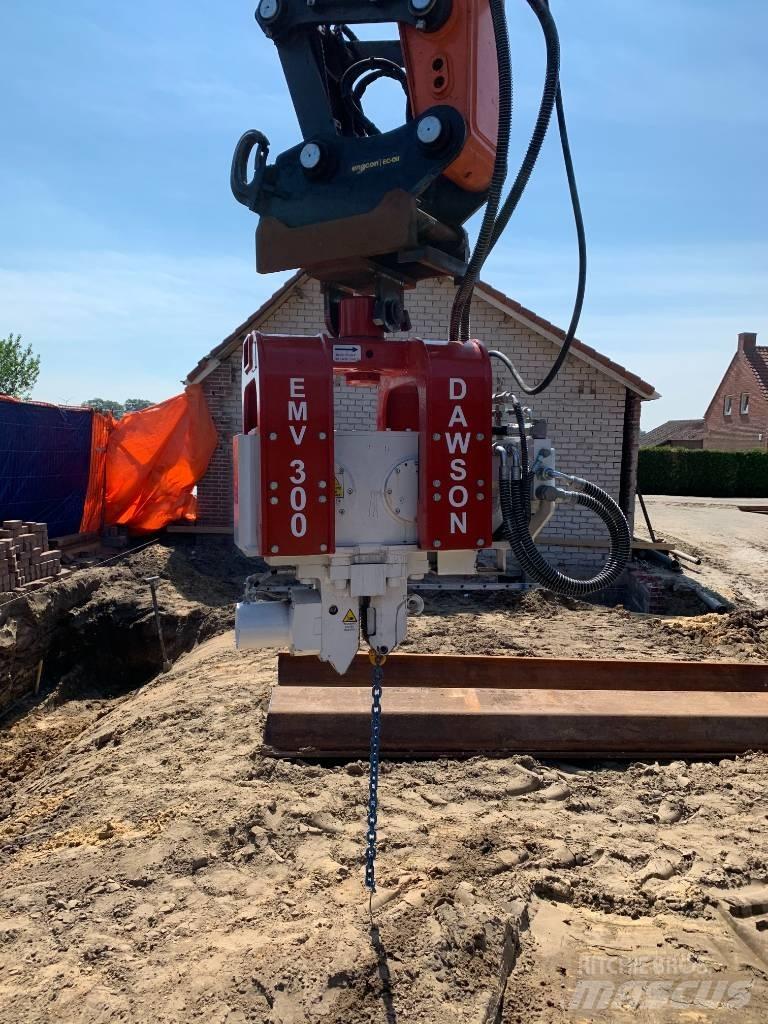

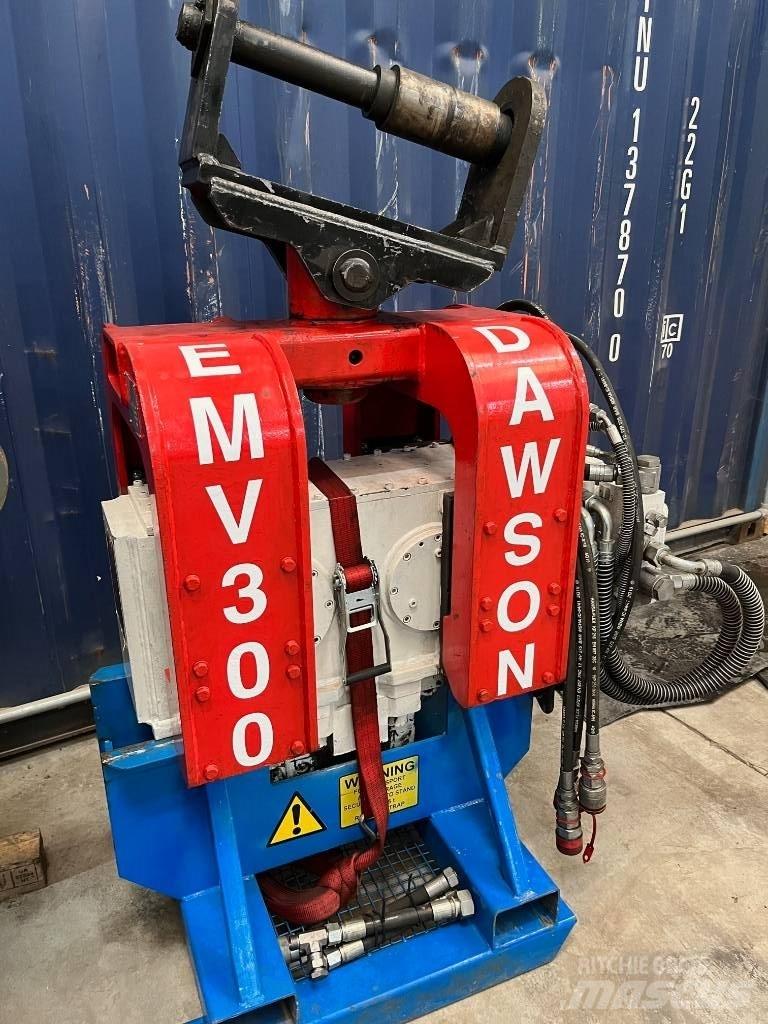

1 piece used unit Dawson EMV 300 excavator mounted vibratory hammer
Year of manufacture  2016
Static moment   4.6 kgm
Frequency    2400 rpm
Centrifugal force   300  kN
Amplitude   14.7  mm
Min. Hydraulic flow rate 130  L/min
Min. Hydraulic flow rate 250  L/min
Max. Hydraulic power  350  bar
Min. Hydraulic power   60  kW
Dynamic mass   925  kg
Total mass   965  kg
Max. pile mass  800  kg +-
Max. pull/push force  15000 kg
Clamp Force   36  ton
Excavator weight class 12-35 ton
