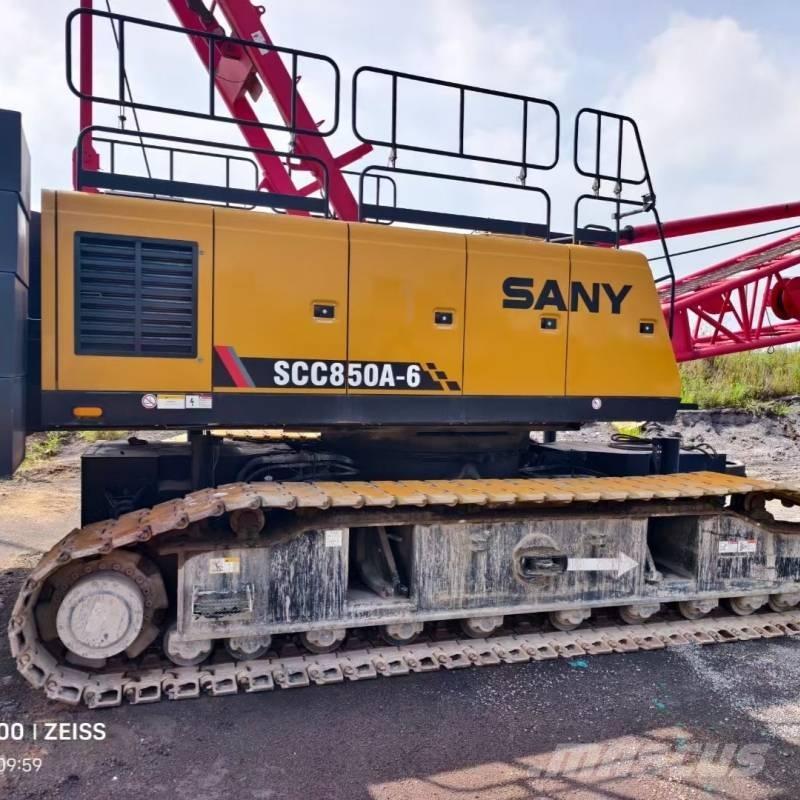

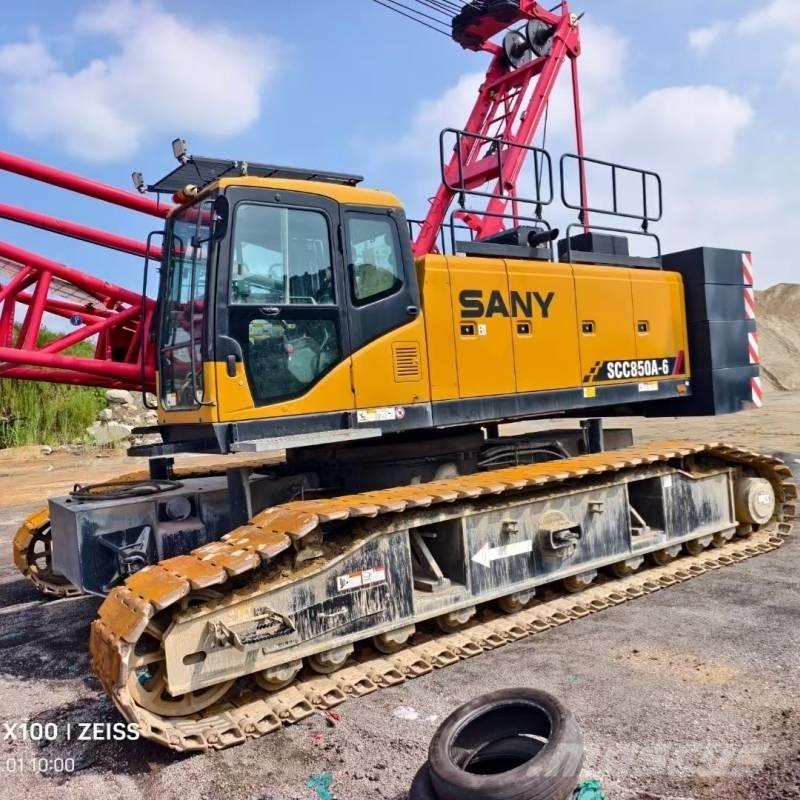

Sany SCC 850 A
Price excl. GST
Print
INFO
Type of Product Group
Track mounted cranes
Brand / model
Sany SCC 850 A
Year of Production
2021
Hours of operation
3,455 h
Country
China
General grade
1
2
3
4
5
Mascus ID
A47B2528
PRICE
Currency selection
ITEM DETAILS
Boom type
Lattice
Last Inspection Time
2025-09-03
Amount of previous owners
1
Gross Weight
59,000 kg
Maximum lift capacity
85 ton
Max lifting capacity at end of jib
20 ton
Boom length
57 m
Emission level
Stage V / Tier V
Min boom length
3 m
Jib length of crane
57 m
Maximum lift height
60 m
Crane type
Fixed jib
Original colour
Orginal
Engine manufacturer
Orginal
Carrier type
Tracked
Condition info/guarantee
1 Year
Front tyres remaining
98
Rear tyres remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Hook blocks
Extra information
起重能力:
最大额定起重量:85t
最大起重力矩:350t·m
臂架参数:
主臂长度:12-57m
副臂长度:9-18m
最长主臂 + 副臂:48m+18m
工作速度:
主、副卷扬绳速:0-135m/min
主变幅卷扬绳速(第 3 层):0-55m/min
回转速度:0-2.4rpm
行走速度:0-1.7km/h
发动机参数:
型号:潍柴 WP7(SCC850A-8)
额定功率:221kW/2200rpm(SCC850A-8)
排量:7.47L(SCC850A-8)
尺寸与重量:
主机运输尺寸(带履带架、下节臂):12500×3450×3400mm
主机运输尺寸(不带履带架和下节臂):8450×3000×3100mm
基本臂重量:75t
后配重重量:27.5t
中央配重:9.6t
液压系统:
系统最大压力:33MPa
回转系统压力:22MPa
液压油箱容量:310L
其他参数:
履带板宽度:800mm
平均接地比压(基本臂):0.082MPa
