Link-Belt LS-98A

Price excl. GST

Compnay LOGO
Images12

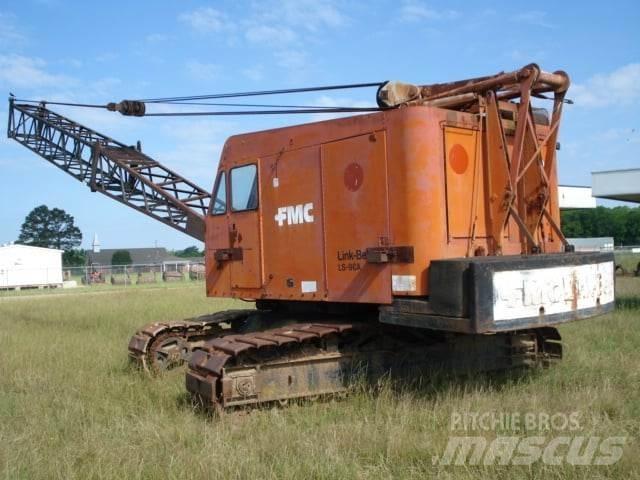

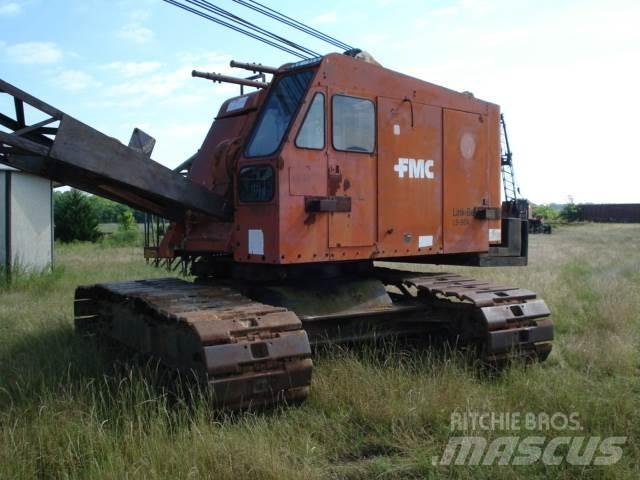

Link-Belt LS-98A Track mounted cranes
Link-Belt LS-98A Track mounted cranes
Link-Belt LS-98A Track mounted cranes
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Track mounted cranes
Brand / model
Link-Belt LS-98A
Year of Production
1977
Location
Arkansas, USA, Arkansas
Country
United States
General grade
1
2
3
4
5
Mascus ID
D2929C56

PRICE

Currency selection

ITEM DETAILS

Manufacturing / Serial number
9LRA-5201
Maximum lift capacity
40,000 kg
Maximum lift height
2,438 cm
Attachments
https://freecranespecs.com/Link-Belt/LS-98A
Extra information
1977 Link-Belt LS98A Lattice Boom Crawler Crane, CranesList ID; 75, 80' Pin connected Angle Boom- alloy steel main boom angles, all welded, lattice construction. Consisting of  base & tip sections with 2 x 20' inserts,  No Jib,  Main and Auxiliary Winches,  Boom angle indicator,  Hook Block and Ball,   Fairlead, fully revolving type with lock, barrel, sheaves, and guide rollers mounted on anti-friction bearings. A & B counterweights,  Retractable Gantry mounted to upper to support bail, boom suspension system and two boom hoist rope sheaves. 360 degree rotation,  Hendricks 1 1/2 yard bucket is available for additional cost,  11' Wide Cab with catwalks both sides,  GM4-71N Detroit Diesel Engine,  Heat treated track rollers on sintered iron bushings are sealed for maintenance-free operation,  43 shoes, 36” wide each crawler,   12'6” Overall width of crawler,  15'1" ” Overall length of crawler,  Unit has been used as a Crane not a dragline...was first used by the original owner as a crane mounted on a barge close to Houston, TX. It was later sold to a county in Arkansas that used it as a crane in their bridge building department.They owned it for 20 to 25 years, they got to where they weren't using it so they sold it to the present owner who has it for sale. The float trailer is $1,500. Additional it was used by the county to move the block, ball and boom. ... IN ARKANSAS! Show more

Craneslist

3350 E. 7th ST #512 90804 Long Beach California United States
