Type of Product Group
Skid steer loaders
Brand / model

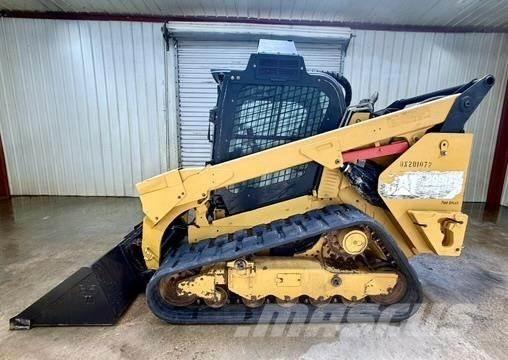

CAT 299D2 XHP
Hours of operation
2,600 h
Location
Trinidad, Texas
Country
United States
Mascus ID
E2167976

PRICE

Currency selection

ITEM DETAILS

Manufacturing / Serial number
CAT0299DTX201072
Gross Weight
5,265 kg
Power Output
78.7 kW (107 hp)
Extra information
Description: Machine Highlights Year: 2019 Make: Caterpillar Model: 299D2 XHP Cab High Flow Tipping Load: 9,450LBS Operating Weight: 11,608LBS Hours: 2600 Serial Number: CAT0299DTX201072 Engine Engine Model: Cat C3.8 DIT (Turbo) Gross Power: 110.0 HP Net Power: 107 HP Displacement: 232.0 in3 Bore: 3.9 in Stroke: 4.7 in Operating Specifications Operating Weight: 11,608.0 lb Rated Operating Capacities: 50% Tipping Load: 4725.0 lb Ground Contact Area: 2184.0 in2 Ground Pressure: 5.3 psi Tipping Load: 9300.0 lb Breakout Force, Tilt Cylinder: 7552.0 lb Breakout Force, Lift Cylinder: 6111.0 lb Hydraulic System Hydraulic Flow: Standard Hydraulic Flow: High Flow XHP Loader Hydraulic Pressure: 3335.0 psi Loader Hydraulic Flow: 23.0 gal/min Hydraulic Power: 44.0 hp Max. Loader Hydraulic Pressure: 4061.0 psi Max. Loader Hydraulic Flow: 40.0 gal/min Hydraulic Power (calculated): 94.0 hp Dimensions Length of Track on Ground: 69.6 in Overall Length of Track:89.4 in Length w/Bucket on Ground: 151.8 in Length w/o Bucket: 123.5 in Height to Top of Cab: 83.7 in Vehicle Width: 78.0 in Max. Overall Height: 158.4 in Bucket Pin Height at Max. Lift:125.6 in Bucket Pin Height at Carry Pos.: 7.9 in Reach at Max. Lift/Dump: 30.6 in Clearance at Max. Lift/Dump: 94.3 in Ground Clearance: 8.7 in Departure Angle: 30° Maximum Dump Angle: 52° Turn Radius from Ctr - Rear: 73.4 in Turn Radius from Ctr - Coupler: 58.0 in Turn Radius from Ctr - Bucket: 91.2 in Max. Reach w/Arms Parallel: 50.2 in Rack Back Angle at Max Height: 83° Bucket Pin Reach at Max Lift: 15.6 in Power Train Travel Speed Forward: 5.2 mph Travel Speed Reverse: 5.2 mph Travel Speed Reverse - 2-Speed: 8.4 mph Travel Speed Forward - 2-Speed: 8.4 mph Service Refill Capacities Cooling System: 4.1 gal Engine Crankcase: 3.5 gal Fuel Tank: 32.2 gal Hydraulic System: 14.5 gal Hydraulic Tank: 10.3 gal CATERPILLAR 299D2 XHP HIGH FLOW CAB TRACK SKID STEER LOADER, A TIPPING LOAD OF 9,450LBS AND AN OPERATING WEIGHT OF 11,608LBS! SE HABLA ESPAÑOL! FINANCING AVAILABLE! PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES! Airconditioning: 1 Coupler: 1 Enginemake: CATERPILLAR Enginemodel: C3.8DIT Fueltype: Diesel Heater: 1 Height: 83.6 Length: 125.5 Ropstype: Enclosed Width: 76 Tracktype: Rubber Shippinglength: 154.7 Shippingwidth: 76 Quickattach: 1 Bucket: 1 Shippingheight: 83.6 Shippingweight: 11608 Tipload: 9450 Counterweight: 1 Cruisespeed: 5.2 Turbo: 1Show more

Providence Equipment

4435 State Highway 274 75163 Trinidad Texas United States
