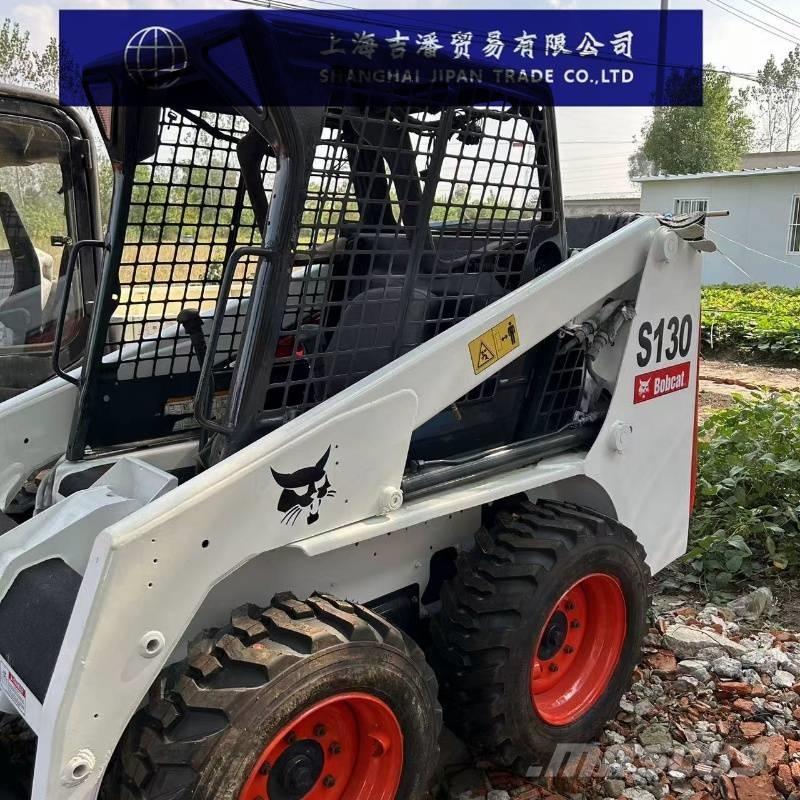

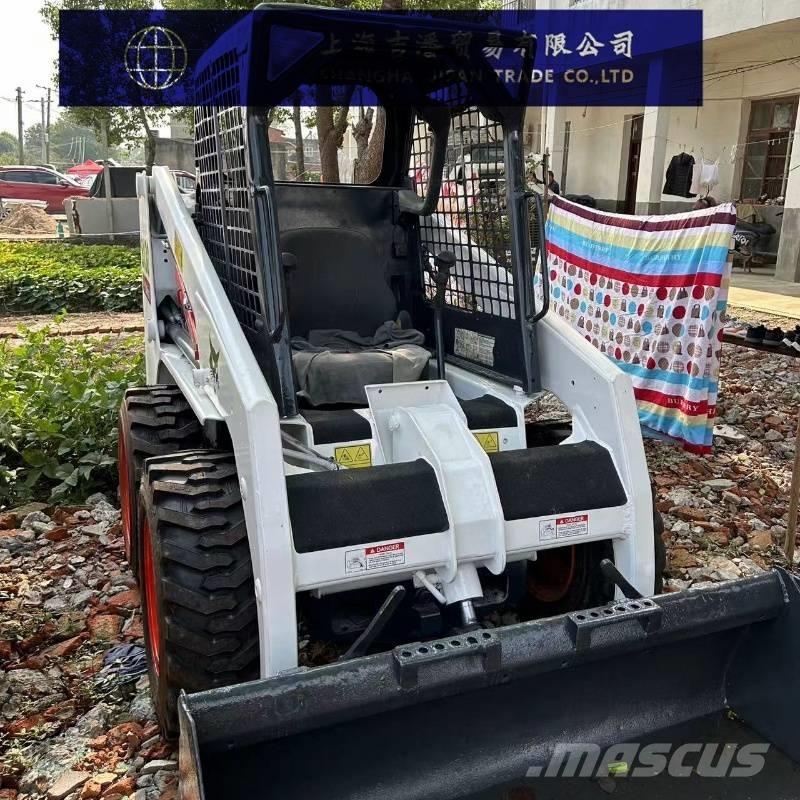

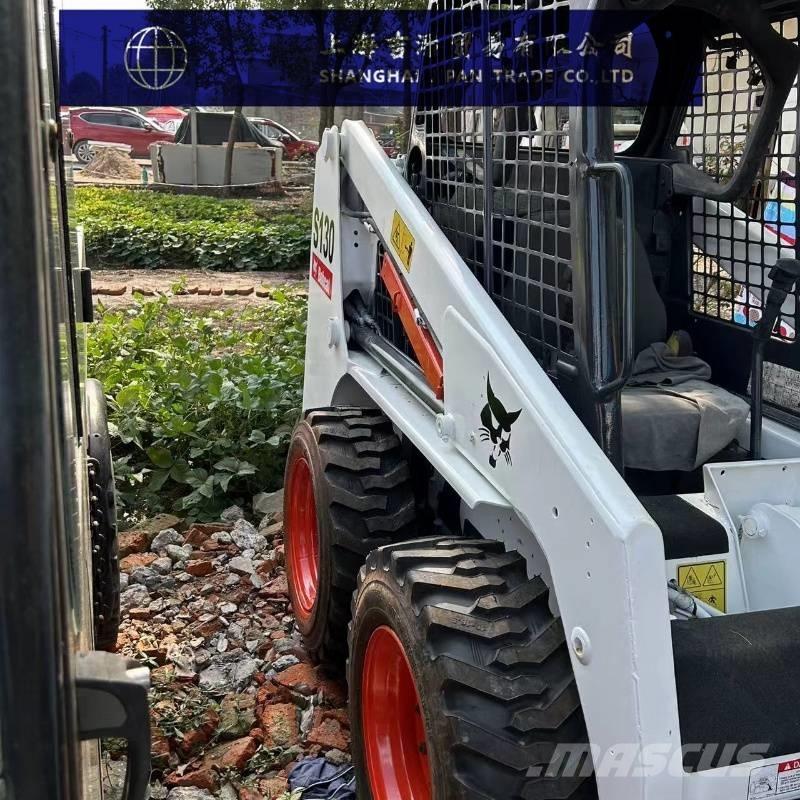

Bobcat S 130

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Performance Rated Operating Capacity: 597 kg Tipping Load: 1,195 kg Overall Machine Weight: 2,465 kg Lift Linkage Type: Radial lift Engine Model: Kubota V2203-M-DI-E2B-BC-3 Rated Power: 34.3 kW at 2,400 rpm Maximum Torque: 150 N·m Displacement: 2.2 L Number of Cylinders: 4 Mobility Maximum Travel Speed: 11.8 km/h Tire Size: 10×16.5 Front Turning Radius (with bucket): 1,745 mm Departure Angle: 23° Hydraulic System System Relief Pressure: 182.7–189.6 bar Rated Hydraulic Flow: 64 L/min Oil Capacity Fuel Tank: 50.3 L Working Range Maximum Dump Height: 2,100 mm Dump Reach at Maximum Height: 575 mm Maximum Height of Bucket Hinge Pin: 2,781 mm Dump Angle at Maximum Height: 40° Bucket Rollback Angle on Ground: 25° Bucket Rollback Angle at Maximum Height: 96° Overall Dimensions Length Without Attachment: 2,432 mm Length With Bucket: 3,152 mm Width Over Tire Edges: 1,365 mm Height to Top of Cab: 1,964 mm Wheelbase: 900 mm Width Over Bucket Edges: 1,398 mm
