Cobra T5000
Price excl. GST
POA
Print
INFO
Type of Product Group
Drilling rigs
Brand / model
Cobra T5000
Year of Production
2026
Condition
New/unused
Location
Warminster, Wiltshire
Country
United Kingdom
General grade
1
2
3
4
5
Mascus ID
2BC77F5E
ITEM DETAILS
Gross Weight
2,100 kg
Movement type
Tracked
Emission level
Stage V / Tier IV final
Original colour
Hi viz Green
Engine
3H50
Power Output
18.5 kW (25.2 hp)
Engine manufacturer
Hatz
Condition info/guarantee
12 Month
Production country
United Kingdom
Delivery terms
EXW
Certificates
EPA, CE
Accessories
Hydraulic adjustable boom
Additional hydraulics
Documents
Extra information

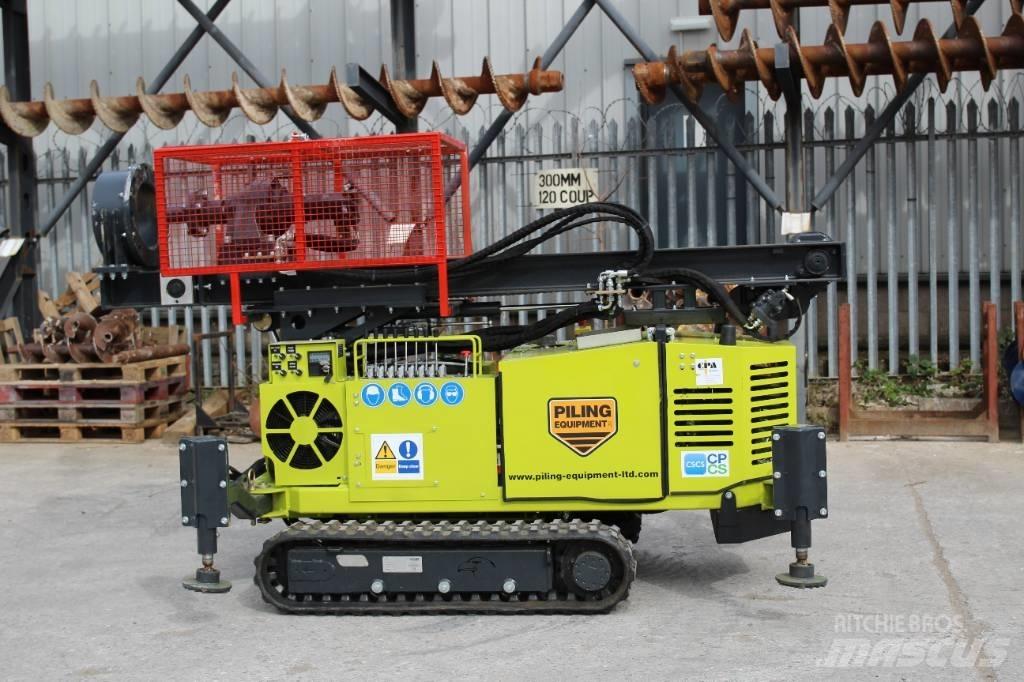

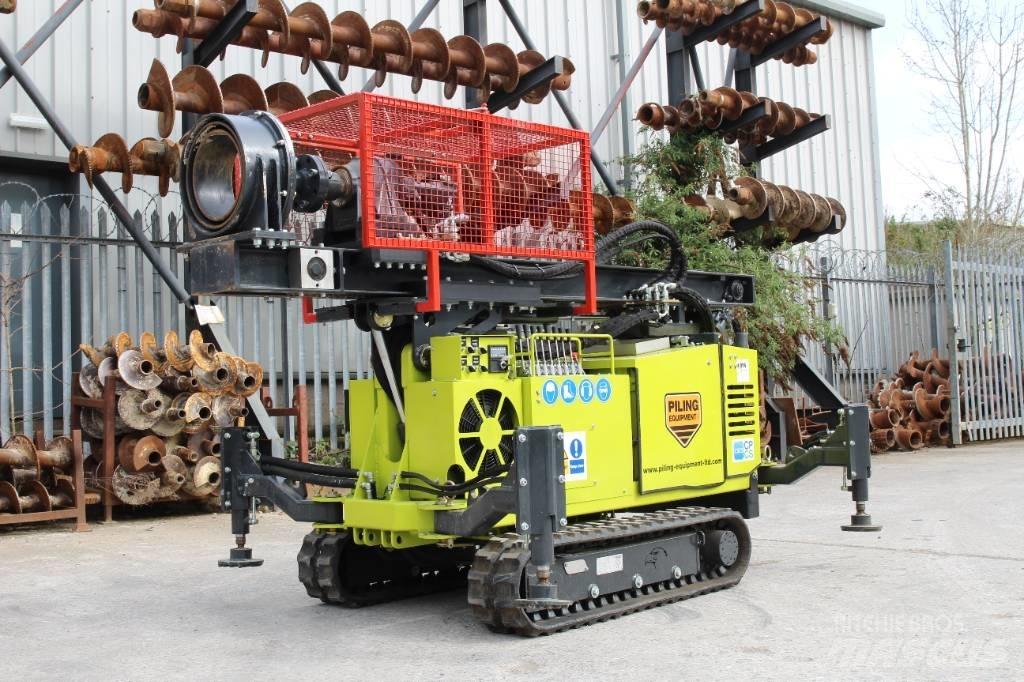

Cobra T5000
Hydraulic Mini Piling Rig
Maximum Torque : 5,000 / 2500NM
Extraction Force: 1T

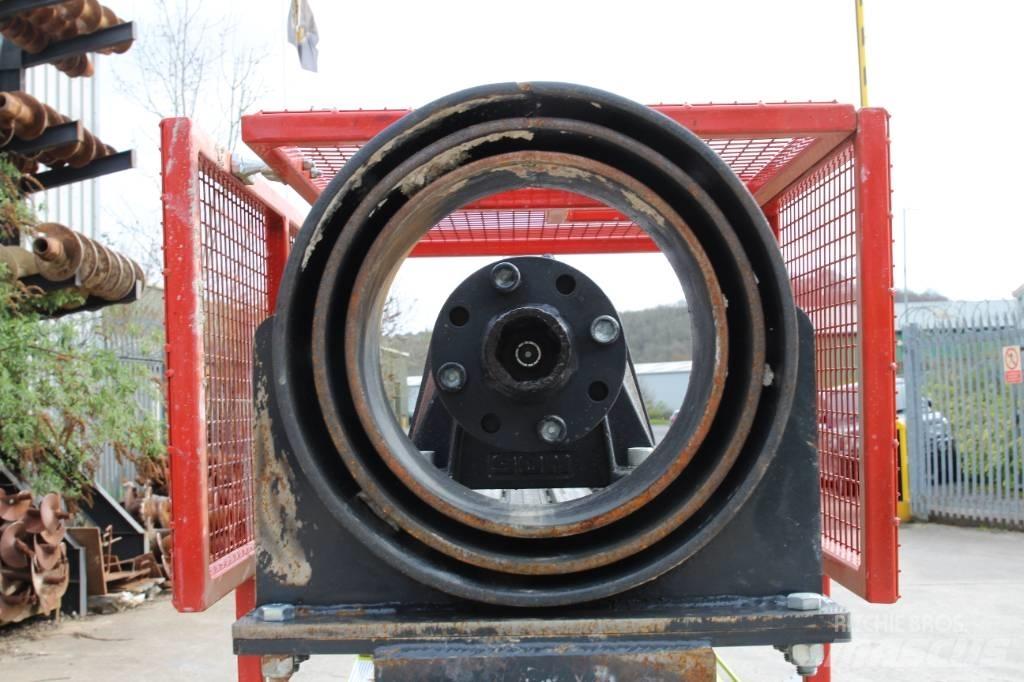

Rotary Head: Two Speed - 35/70rpm
Mast Type: Chain
Feed stroke: 2,050mm
Max Diameter: 350mm
Expandable Track Base 780mm min 1200mm max
Tracking Speeds: 2.5 km/h (low), 5 km/h (high)
Four Hydraulic Stabilizer Legs
Detachable safety gates with kill switch to HSE standards
Onboard Manual Hydraulic Controls & Scanreco Remote Controls
Engine: Hatz 3H50 T (Fulfils US EPA, Tier 4 final / EU Stage V)
Max. output / torque [kW@rpm] 18.5 @ 1300–2800 / [Nm@rpm] 130 @ 1300–1500
Emission Sound Pressure: 80dB
Sound Power Level: 82 dB
Transport dimensions (L / W / H) 3,050 / 800 / 1,700
Basic Weight : 1950 kg
