Kubota U 20
Price excl. GST
Print
INFO
Type of Product Group
Mini excavators < 7t (Mini diggers)
Brand / model
Kubota U 20
Year of Production
2017
Country
China
General grade
1
2
3
4
5
Mascus ID
68DE83F0
PRICE
Currency selection
ITEM DETAILS
Power type
Diesel
Last Inspection Time
2025-01-07
Undercarriage condition
perfect
Gross Weight
2,365 kg
Track width
250 mm
Bucket capacity
0.05 m3
Transport dimensions (LxWxH)
3.85/1.5/2.38 m
Original colour
green,yellow

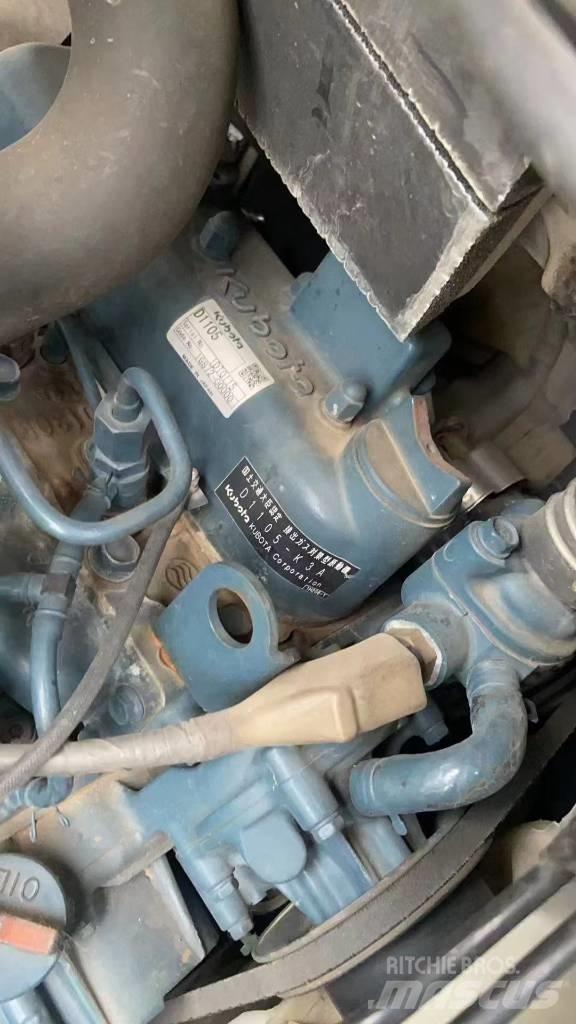

Engine
Kubota D1105
Power Output
21 kW (28.6 hp)
Engine manufacturer
kubota
Condition info/guarantee
perfect
Production country
Japan
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE, ANSI, AS
Extra information
Main Performances:
·Travelling speed(km/h):2.1/4.0
·Rotating speed(r/min):9.6
·Gradeability(°):30
·The maximum digging force of bucket(kN):18.4
Working Range:
·The maximum excavating height(mm):3880
·The maximum unloading height(mm):2550
·The maximum excavating depth(mm):2320
·The maximum vertical excavating depth(mm):1900
·The maximum excavating radius(mm):4140
Boundary Dimension:
·Track length(mm):1860
·Wheel spacing(mm):1475
·The minimum rotation radius of the rear end(mm):710
·The minimum ground clearance(mm):170
Oil Capacity:
·Fuel tank volume(L):28
Else:
·variable pump*2+gear pump*2
·orbit motor+axial piston hydraulic motor
