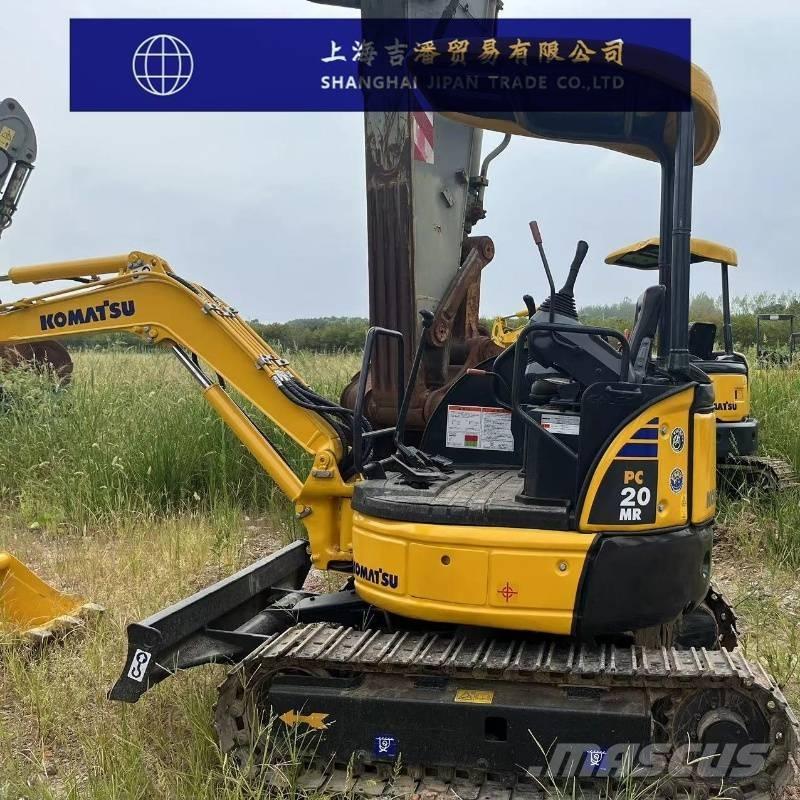

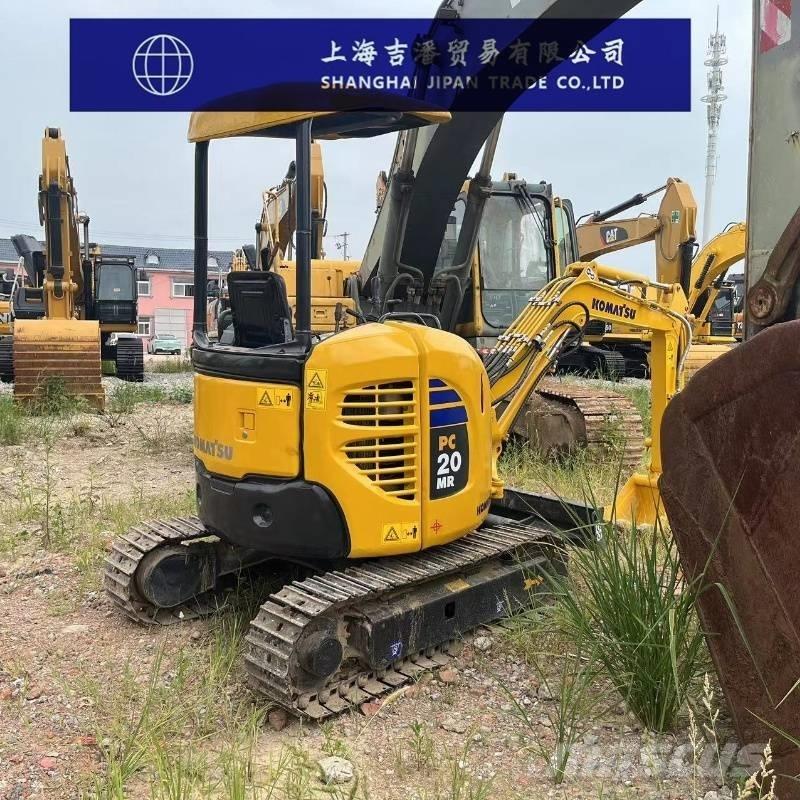

Komatsu PC 20 MR

Item Specification Operating weight 2140-2610kg Bucket capacity 0.04-0.09m³ Engine model 3D76E-5 Rated power 15.5kW Displacement 1.2L Maximum digging depth 2350-2750mm Maximum digging radius 4170-4620mm Maximum digging height 4100-4390mm Maximum dumping height 2820-3110mm Maximum vertical digging depth 1950-2350mm Swing speed 8.9rpm Travel speed 4.6km/h Track width 1200mm Track ground contact length 1880mm Minimum ground clearance 230mm Rear swing radius 800mm Fuel tank capacity 28L Hydraulic system capacity 19L Engine oil change quantity 3.4L
