INFO

Type of Product Group
Hydraulic pile hammers
Brand / model
IHC Fundex FPP 20SNZ
Year of Production
2005
Condition
Reconditioned
Location
Etten Leur, Noord-Brabant
Country
Netherlands
General grade
1
2
3
4
5
Mascus ID
9EAB5471

ITEM DETAILS

Internal stock no.
05.93.20SNZ
Fits to following machines
Fundex F12SE, Fundex F3500, Fundex F15, Hitachi KH 150/180/230/300 GLS and other pile driving or drilling rigs which need an extra hydraulic power pack
Manufacturing / Serial number
05.93-20SNZ
Emission level
Stage II / Tier II
Transport weight
8,500 kg
Engine manufacturer
DAF XF390
Transport dimensions (LxWxH)
4385 x 1600 x 2700 mm
Production country
Netherlands
Delivery terms
FCA, EXW
Attachments
Lifting points Noise reduction material in doors Control box
Extra information

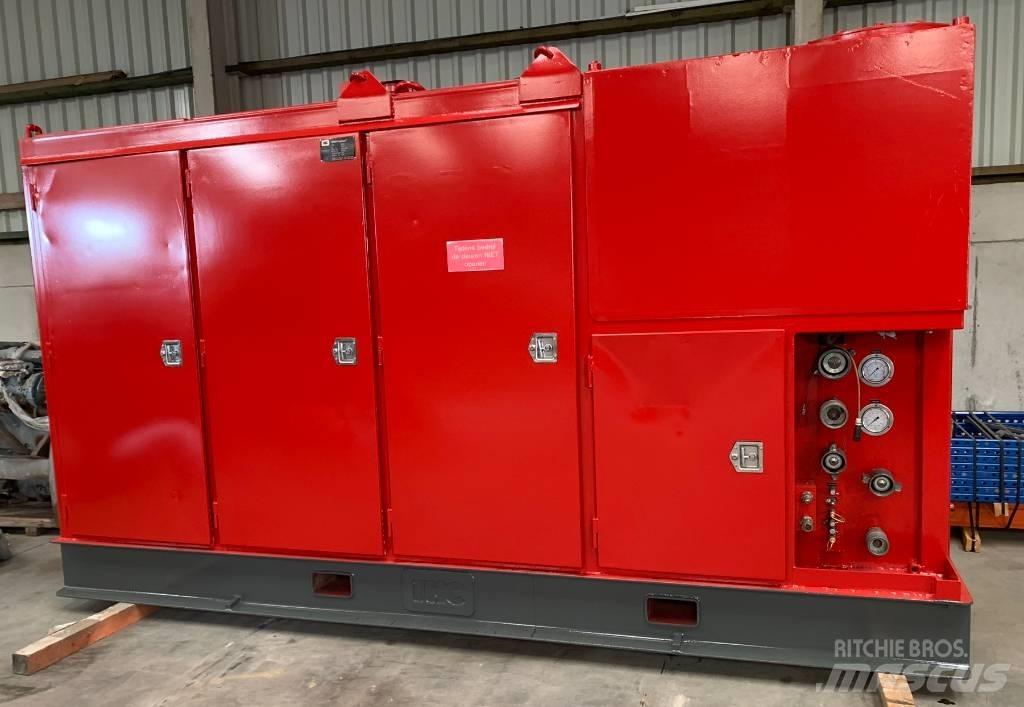

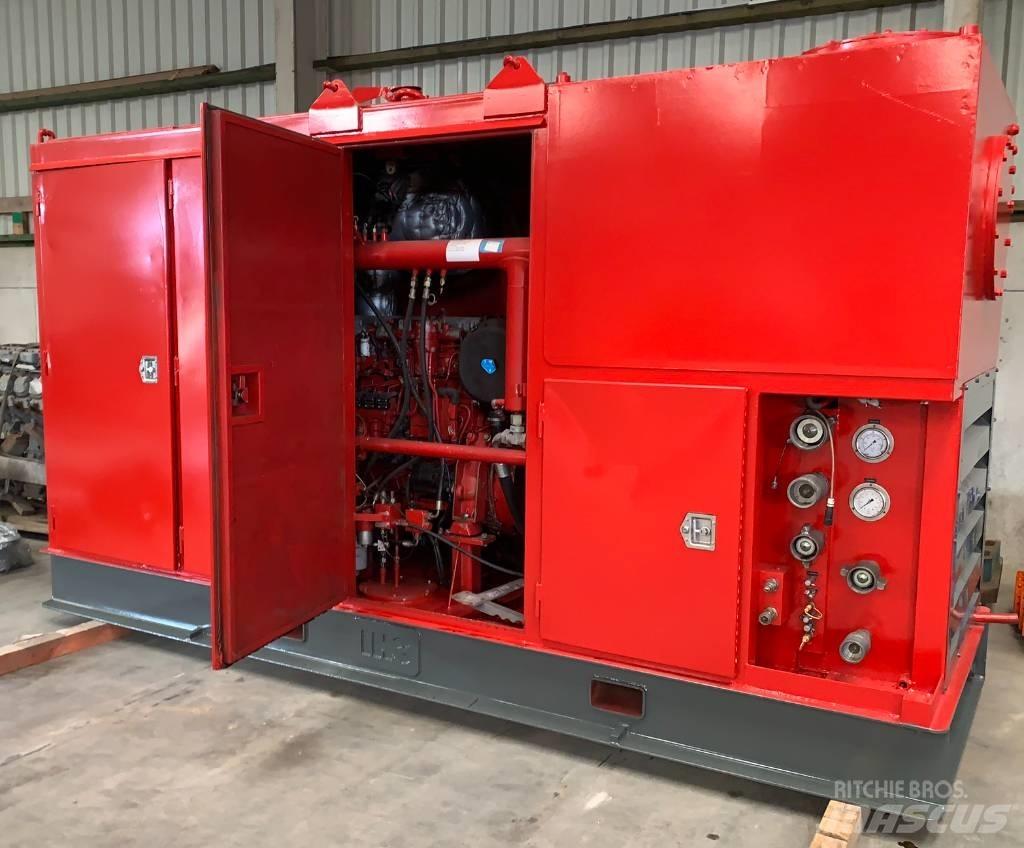

Directly available: IHC Fundex FPP 20SNZ multi purpose type, hydraulic power pack. This unit can be used to provide the necessary oil flow to power an IHC Hydrohammer, Junttan or PVE hydraulic impact hammer, rotary head or vibratory hammer. With some minor adjustments the power pack can also be used to power winches or dredging pumps. The power pack has an open loop hydraulic system and a very reliable Poclain hydraulic pump. The maximum flow at 320 bar is 520 ltr/min. The maximum oilflow at for example 225 bar is 700 ltr/min. The power pack has got lifting points and preparations to lift it easily with a forklift. The engine is from DAF. The DAF engines are also used in the DAF trucks so parts and service are widely available. This model is from the year 2005 and has 15.750 hours of which many are also stationairy because it was placed on the rear of a piling rig and it was not used for piling during the whole day. The power pack is serviced and tested and ready for immediate work.Show more
