Wiertnica SOCOMAFOR, model: 100

Price excl. GST

POA

Compnay LOGO
Images31

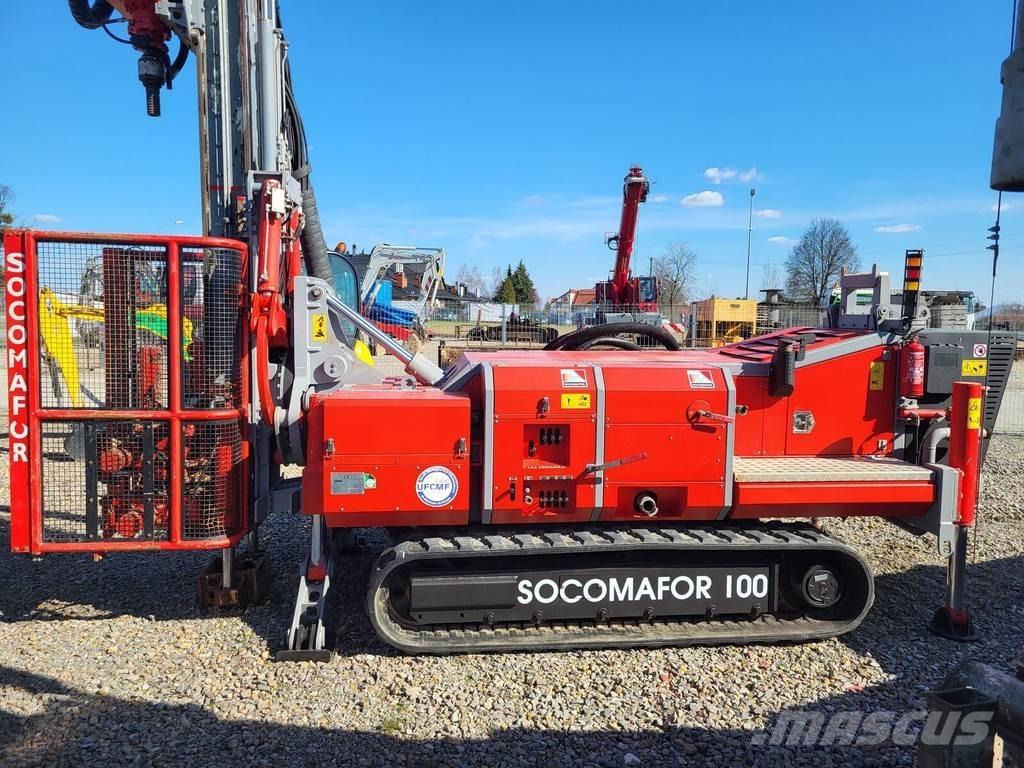

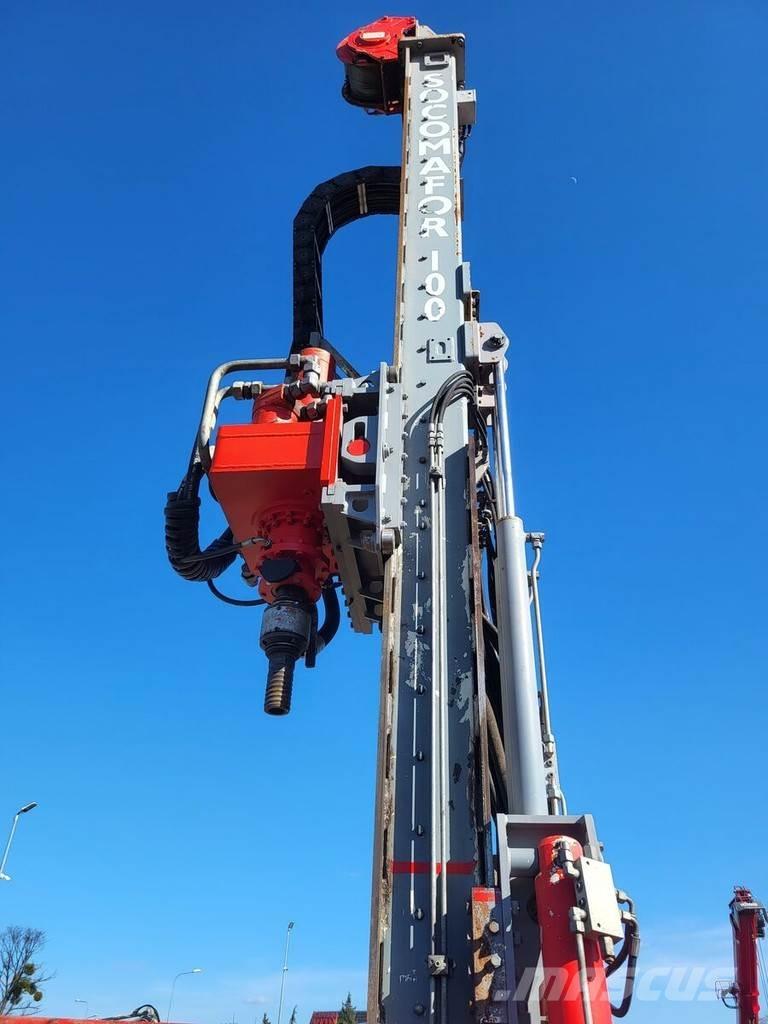

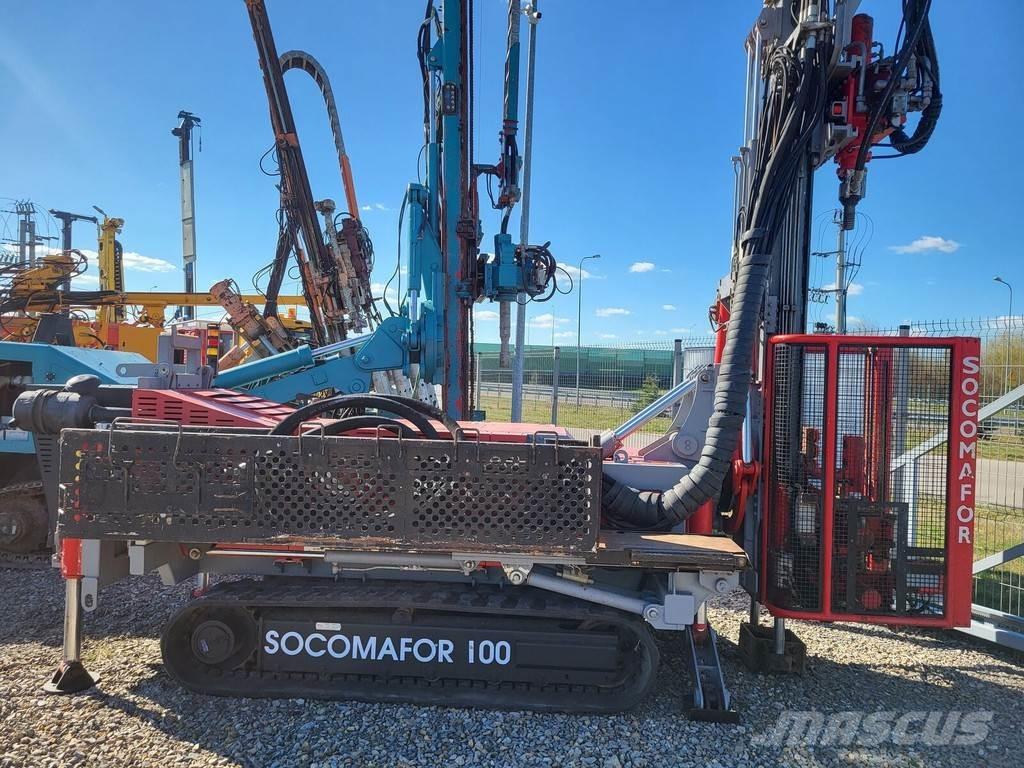

Wiertnica SOCOMAFOR, model: 100 Heavy drills
Wiertnica SOCOMAFOR, model: 100 Heavy drills
Wiertnica SOCOMAFOR, model: 100 Heavy drills
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Heavy drills
Brand / model
Wiertnica SOCOMAFOR, model: 100
Year of Production
2015
Hours of operation
4,988 h
Location
Lublin
Country
Poland
Mascus ID
779A118C

ITEM DETAILS

Engine manufacturer
Deutz
Transport dimensions (LxWxH)
5900 x 2480 x 1950 mm
Extra information
Ref. no.: SP_W_15 Type: DRILLING RIG Brand: SOCOMAFOR Model: 100 Serial number: 0285 Counter: 4988 mth Manufactured: 2015 Power: 74.4 KW Dimensions: L/H/W 5.90/2.48/1.95 SOCOMAFOR 100 – Multi-purpose drilling rig for works: - Coring - Geotechnics - Water wells - Geothermal Year of production: 2015 VERY GOOD TECHNICAL CONDITION FROM FIRST OWNER !!! TECHNICAL DOCUMENTATION ORIGINAL CE CERTIFICATE 4988 MTG!!! PARAMETERS ENGINE: DEUTZ 4 cyl., 74.4 KW (101 HP)at 2300 rpm MAST: Feed length: 3457 mm – 3.45 m Mast total length: 6100 mm Feed system: 2 x double row chain: Pull back force: 7300 N, 7.3 tons!!! Pull down force: 35,000 N, 3.5 tons!!! Additional cylinders under the mast for pulling: Pulling force of 2 cylinders: 260,000 N, 26 tons!!! HEAD: 1st gear: 330 daNm, speed: 0-305 rpm 2nd gear: 165 daNm, speed: 0-610 rpm - floating spindle - Montabert SC16 hammer/driffter: stroke rate: 1500 strokes/min, energy: 245 J/stroke - Smoothly adjustable spindle speed - Smoothly adjustable stroke rate Tilting head: YES CLAMPS: Double clamps for rods and casing pipes, maximal size: 280 mm Pulling cylinders: 26 tons of pulling at 600 mm feed Unscrewing cylinder WINCH: - Force: 2000 kg - Two speeds (2 gears) MUD PUMP: TRIPLEX MUD PUMP for coring - Capacity: 200 l/min - Pressure: 55 bar - Smoothly adjustable capacity RODS/PIPES MAGAZINE/STORAGE: - Stackable rod magazine - Capacity: 150 meters, 3 m of pipes, 76 mm or 89 mm KINEMATICS OF MAST Wireless remote control + manual control Rubber tracks Safety cage Tilting control panel Weight: 7850 kg 4988 MTH !!! PERFECT CONDITION !!! Location: Bogucin 174, 21-080 Bogucin Cross roads S17/DK17entrance JASTKÓW POLAND Office: Aleja Warszawska 131B, 20-824 Lublin Contact person: Mr. Lukasz Swieca, Ada Duda-Swieca Phone/WhatsApp: +48.695.414.388 = More information = Type: Soil drill Type of fuel: Diesel Colour: Red Number of cylinders: 4 Engine type: Deutz DEUTZ 4 cyl., 74.4 KW (101 KM)przy 2300 obr./min Selling price: € 105.000, US$ 119.200Show more
