Cummins NTA855-M400
Price excl. GST
POA
Print
INFO
Type of Product Group
Engines
Brand / model
Cummins NTA855-M400
Year of Production
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
2B03A9F5
ITEM DETAILS
Internal stock no.
NTA855-M400
Last Inspection Time
yes
Power Output
298 kW (405 hp)
Part ID
NTA855-M400
Service log books
Yes
Manufacturing / Serial number
NTA855-M400
Transport weight
1,400 kg
Transport dimensions (LxWxH)
1700 x 1100 x 1900 mm
RPM
1800
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Extra information

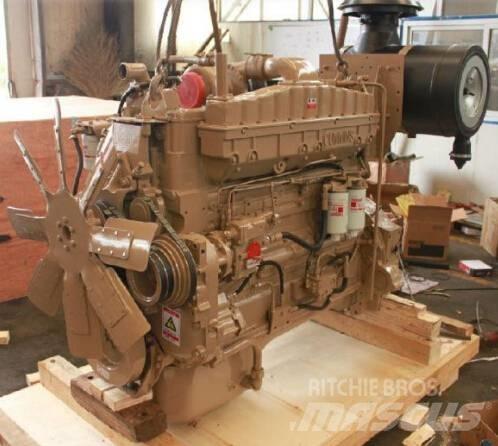

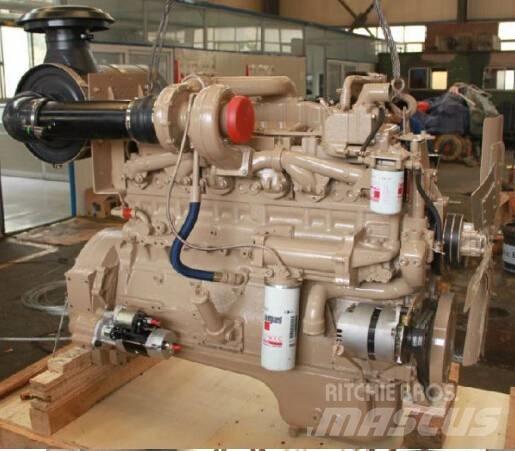

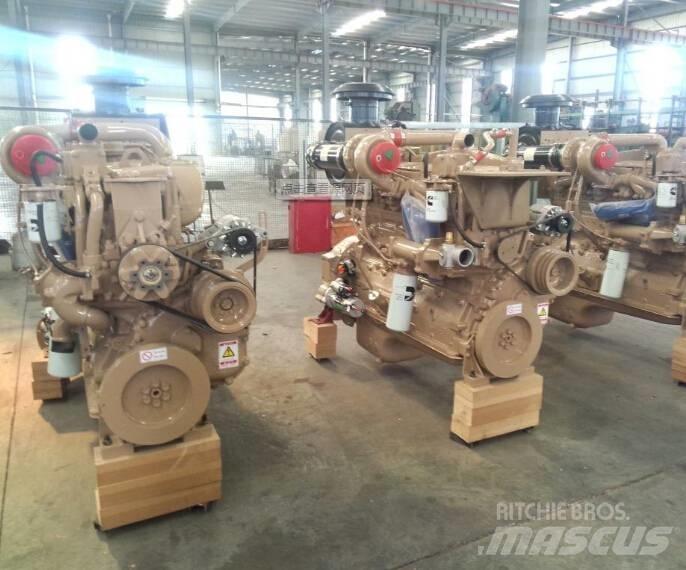

Cummins NTA855-M400 Marine Propulsion Diesel Engine
General Information of Cummins NTA855-M400 Marine Propulsion Diesel Engine
Engine Model NTA855-M400
Engine Type 6 Cylinders in Line
Displacement 14 L
Bore*Stroke(mm) 140 * 152
CPL Number CQ154
Net Weight (with flywleel & alternator) 1303 Kg
Overall Diemension(L*W*H) 1809mm*881mm*1598mm
Technical Specification of Cummins NTA855-M400 Marine Propulsion Diesel Engine
Marine Certification CCS
Aspiration Turbocharged & Inter-cooled
Fuel System PT Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Standard Thermostat Operating Range (Open) 180 °C
Standard Thermostat Operating Range (Full Open) 201 °C
Performance Data of Cummins NT855-M400 Marine Propulsion Diesel Engine
Rated Power/Speed 289 kW/400HP @ 1800rpm
Fuel Consumption @ Rated Power 72 l/hr
Compression Ratio 14.5:1
Rating Type Continuous
Idel Speed 575±650 rpm
