Cummins ISF3.8e4R154
Price excl. GST
POA
Print
INFO
Type of Product Group
Engines
Brand / model
Cummins ISF3.8e4R154
Year of Production
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
23CADF0B
ITEM DETAILS
Internal stock no.
ISF3.8e4R154
Last Inspection Time
yes
Power Output
115 kW (156 hp)
Part ID
ISF3.8e4R154
Service log books
Yes
Manufacturing / Serial number
ISF3.8e4R154
Transport weight
500 kg
Transport dimensions (LxWxH)
1100 x 1000 x 1100 mm
RPM
2600
Emission level
Stage IV / Tier IV final
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Extra information

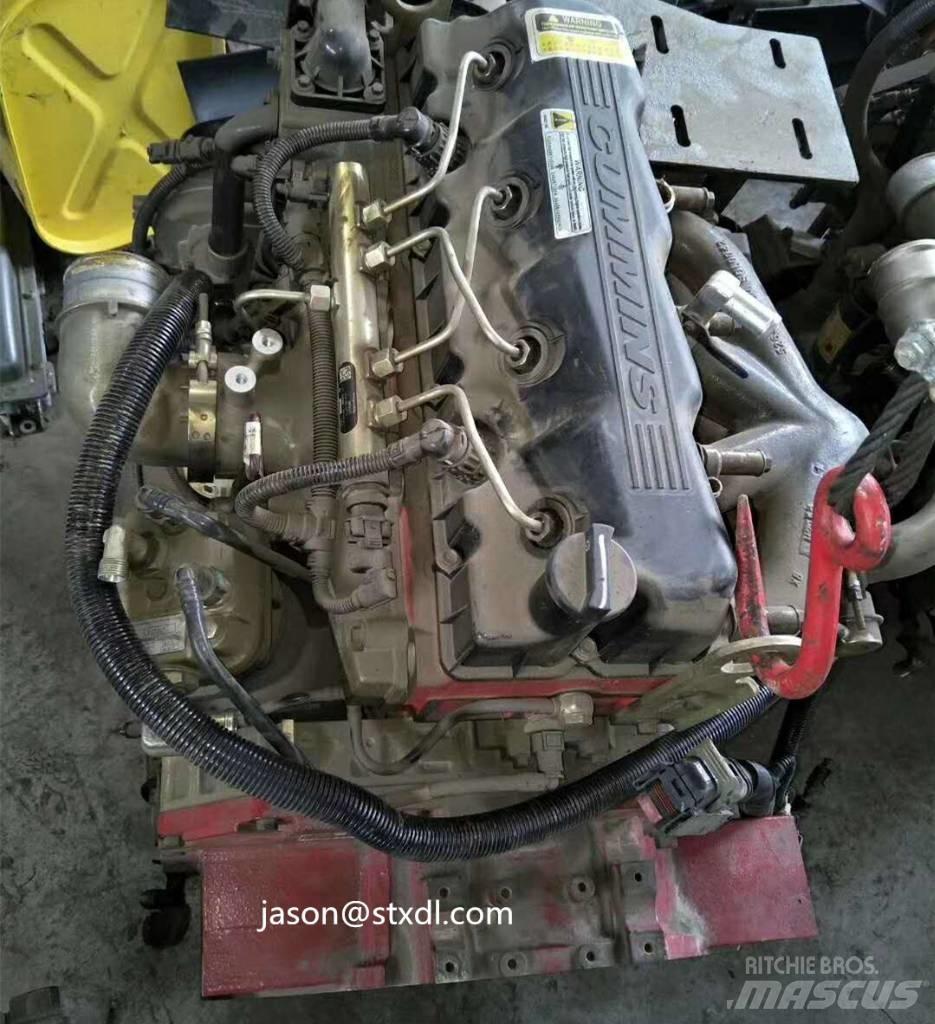

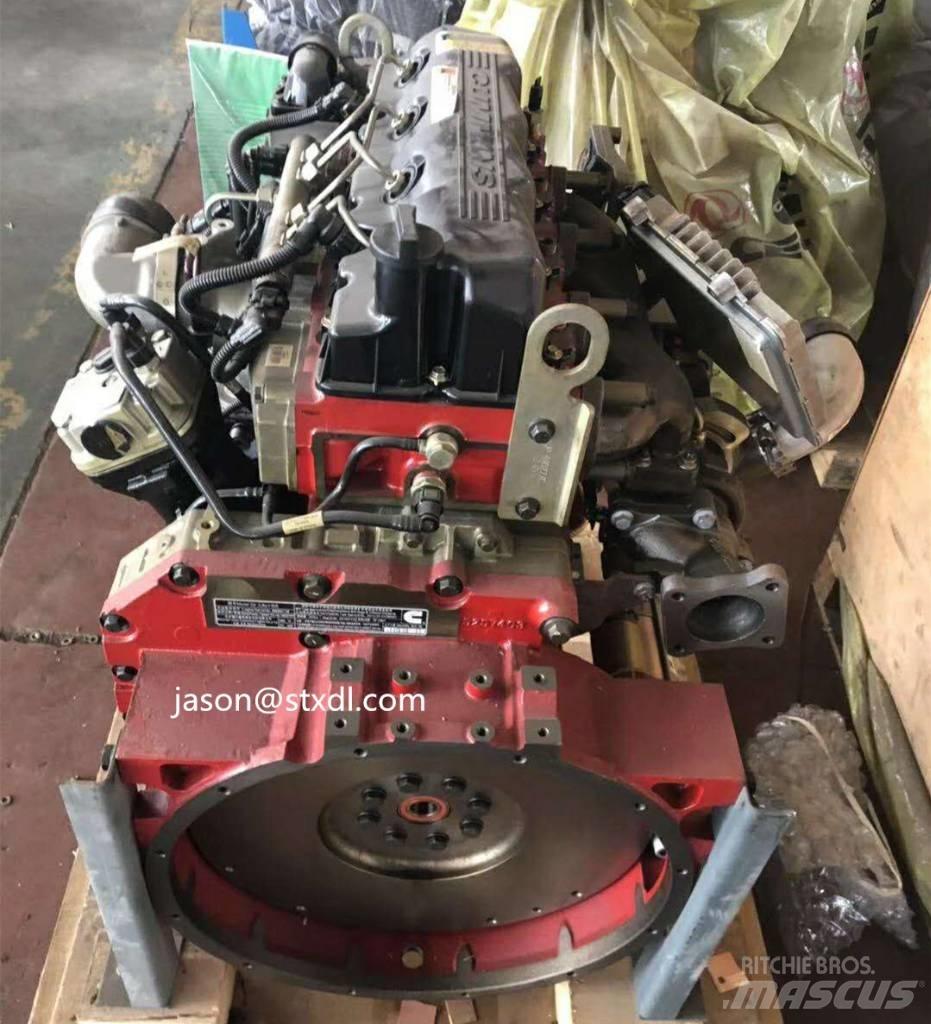

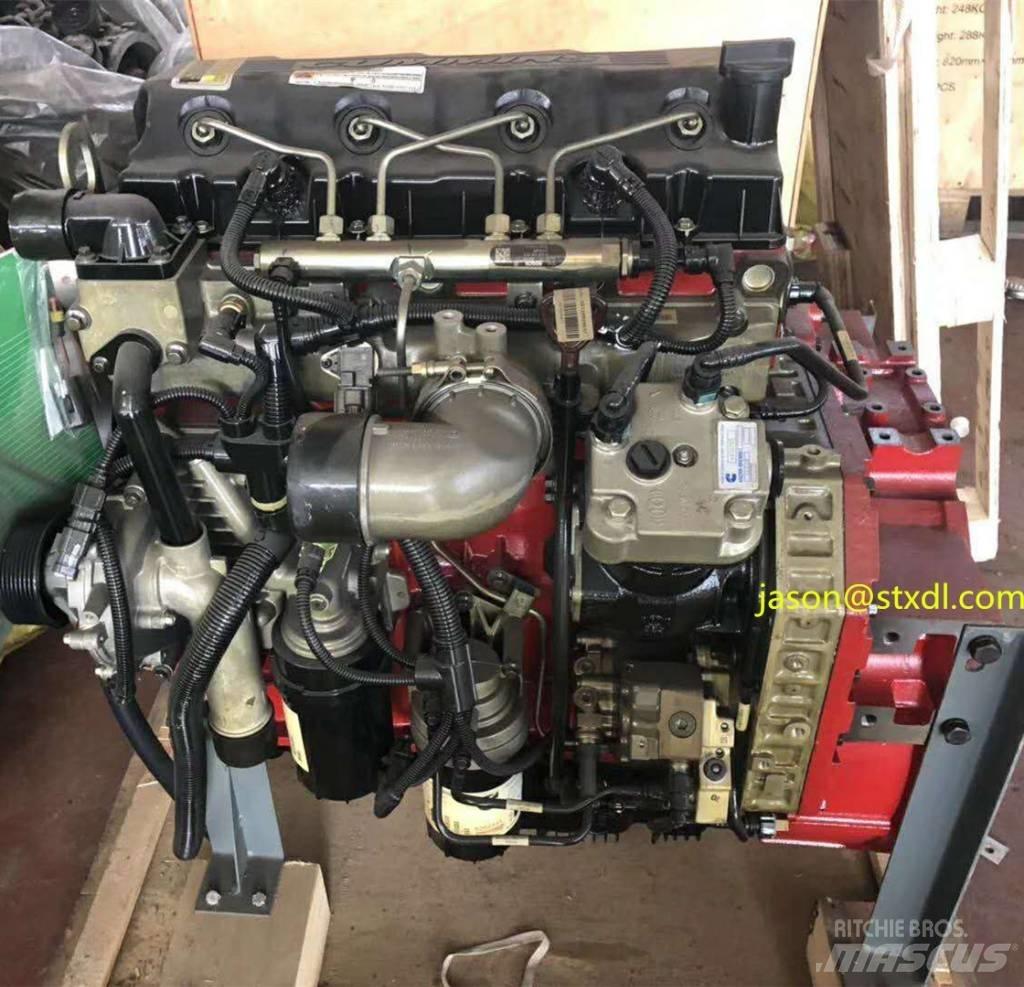

Cummins ISF3.8e4R154 Diesel Engine for Vehicle
General Information of Cummins ISF3.8e4R154 Diesel Engine for Vehicle
Engine Model ISF3.8e4R154
Engine Type 4 Cylinders, in Line
Displacement 3.8 L
Bore*Stroke(mm) 102 * 115
CPL Number -
Overhaul Mileage Over 500,000 kilometers
Net Weight (with flywleel & alternator) 340 Kg
Overall Diemension(L*W*H) 810mm*695mm*806mm
Technical Specification of Cummins ISF3.8e4R154 Diesel Engine for Vehicle
Emission Standard Euro III, IV or V
Aspiration Turbocharged & Intercooled
Fuel System Common Rail Direct Injection
Starting Method Electric Start
Cooling Method Water Cooled
Tail Gas Treatment Technique SCR, DOC Technique
Performance Data of Cummins ISF3.8e4R154 Diesel Engine for Vehicle
Rated Power/Speed 115kW/156HP @ 2600rpm
Max.Torque/Speed 500N.m @ 1900 rpm
Fuel Consumption @ Rated Power 195g/kw.h
Lowest Starting Temp.(without auxiliary system) -40℃
Max. Continuous Running Altitude 5200 m
