Cummins ISDe140 41
Price excl. GST
POA
Print
INFO
Type of Product Group
Engines
Brand / model
Cummins ISDe140 41
Year of Production
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
AA6A8A06
ITEM DETAILS
Internal stock no.
ISDe140 41
Last Inspection Time
yes
Power Output
103 kW (140 hp)
Part ID
ISDe140 41
Service log books
Yes
Manufacturing / Serial number
ISDe140 41
Transport weight
500 kg
Transport dimensions (LxWxH)
1200 x 1000 x 1400 mm
RPM
2300
Emission level
Stage IV / Tier IV final
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Extra information

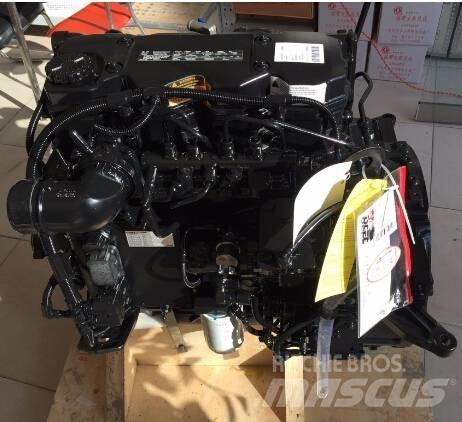

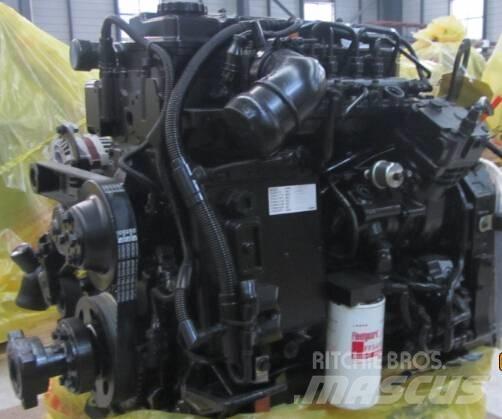

Cummins ISDe140 41 Diesel Engine for Vehicle
General Information of Cummins ISDe140 41 Diesel Engine for Vehicle
Engine Model ISDe140 41
Engine Type 4 Cylinders, in Line
Displacement 4.5 L
Bore*Stroke(mm) 107 * 124
Compression Ratio 17.3 : 1
CPL Number -
Net Weight (with flywleel & alternator) 392 Kg
Overall Diemension(L*W*H) 1060mm*700mm*860mm
Technical Specification of Cummins ISDe140 41 Engine for Vehicle
Certification Euro III
Aspiration Turbocharged & Inter-cooled
Fuel System Bosch Pump
Electrical System(Starter Motor/Alternator) 12V/500A; 24V/250A
Lowest Starting Temp.(with/without auxiliary system) -10℃/-25℃
Engine Cooling Fluid Volume 7.4 L
Performance Data of Cummins ISDe140 41 Diesel Engine for Vehicle
Rated Power/Speed 103kW/140HP @ 2300rpm
Max.Torque/Speed 450N.m @ 1300 rpm
Fuel Consumption @ Rated Power 26 l/hr
Idel Speed 600~800 rpm
Max. Continuous Running Altitude 2000 m
