Cummins 6CTA8.3-M188
Price excl. GST
POA
2
Favorite
Share
Save searchPrint
INFO
Type of Product Group
Engines
Brand / model
Cummins 6CTA8.3-M188
Year of Production
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
6C597E4D
ITEM DETAILS
Internal stock no.
6CTA8.3-M188
Last Inspection Time
yes
Power Output
138 kW (188 hp)
Part ID
6CTA8.3-M188
Service log books
Yes
Manufacturing / Serial number
6CTA8.3-M188
Transport weight
800 kg
Transport dimensions (LxWxH)
1.4×1.0×1.4 m
RPM
2328
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Extra information

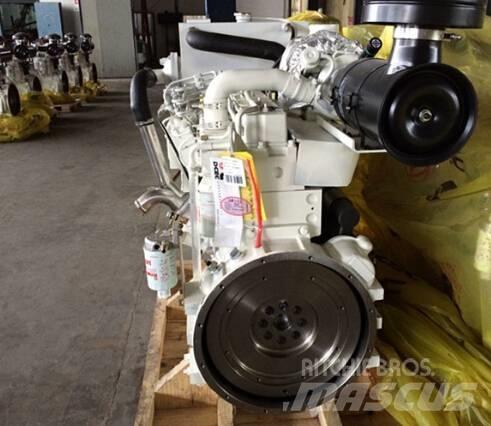

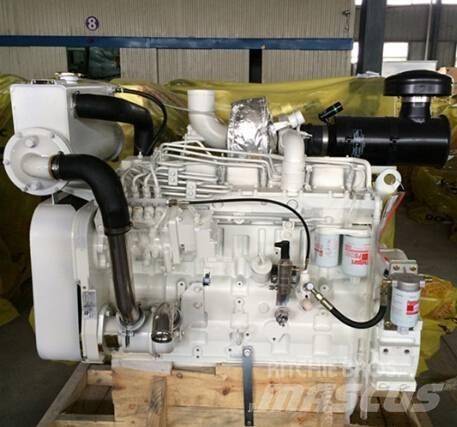

Cummins 6CTA8.3-M188 Marine Propulsion Diesel Engine
General Information of Cummins 6CTA8.3-M188 Marine Propulsion Diesel Engine
Engine Model 6CTA8.3-M188
Engine Type 6 Cylinders in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
CPL Number DC21
Net Weight (with flywleel & alternator) 604 Kg
Overall Diemension(L*W*H) 1360mm*780mm*988mm
Technical Specification of Cummins 6CTA8.3-M188 Marine Propulsion Diesel Engine
Marine Certification CCS
Aspiration Turbocharged
Fuel System BYC PB Pump/R801 Governor
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 12.3L
Performance Data of Cummins 6CTA8.3-M188 Marine Propulsion Diesel Engine
Rated Power/Speed 60 kW/80HP @ 2000rpm
Max. Power/Speed 60 kW/80HP @ 2000rpm
Fuel Consumption @ Rated Power 249g/Kw.h
Fuel Consumption @ Standby Power 249g/Kw.h
Idel Speed 750±100 rpm
