Cummins 6CTA8.3-C240
Price excl. GST
Print
INFO
Type of Product Group
Engines
Brand / model
Cummins 6CTA8.3-C240
Year of Production
2020
Country
China
Mascus ID
A51922C7
PRICE
Currency selection
ITEM DETAILS
Power Output
179 kW (243 hp)
Part ID
6CTA8.3-C240
Transport weight
700 kg
Transport dimensions (LxWxH)
1600 x 900 x 1400 mm
RPM
2200
Emission level
Stage II / Tier II
Production country
China
Delivery terms
FOB, CFR, CIF, EXW
Extra information

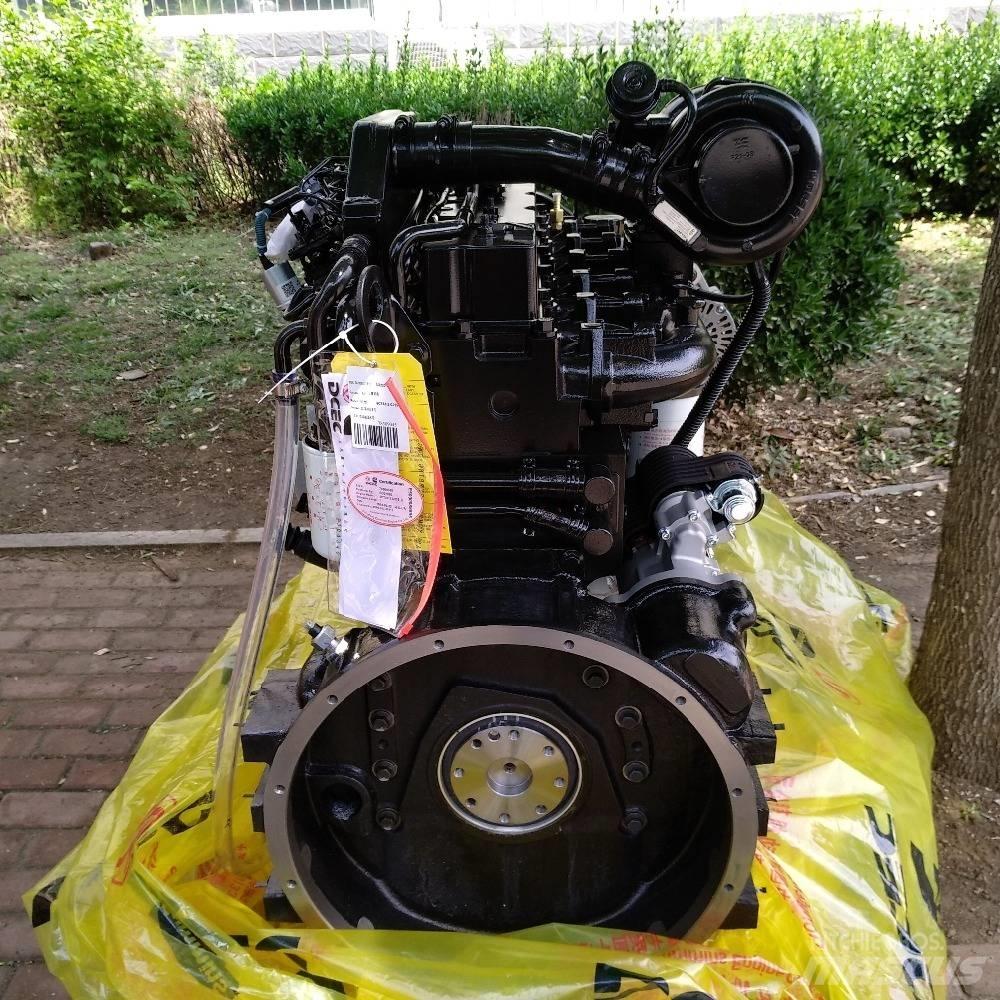

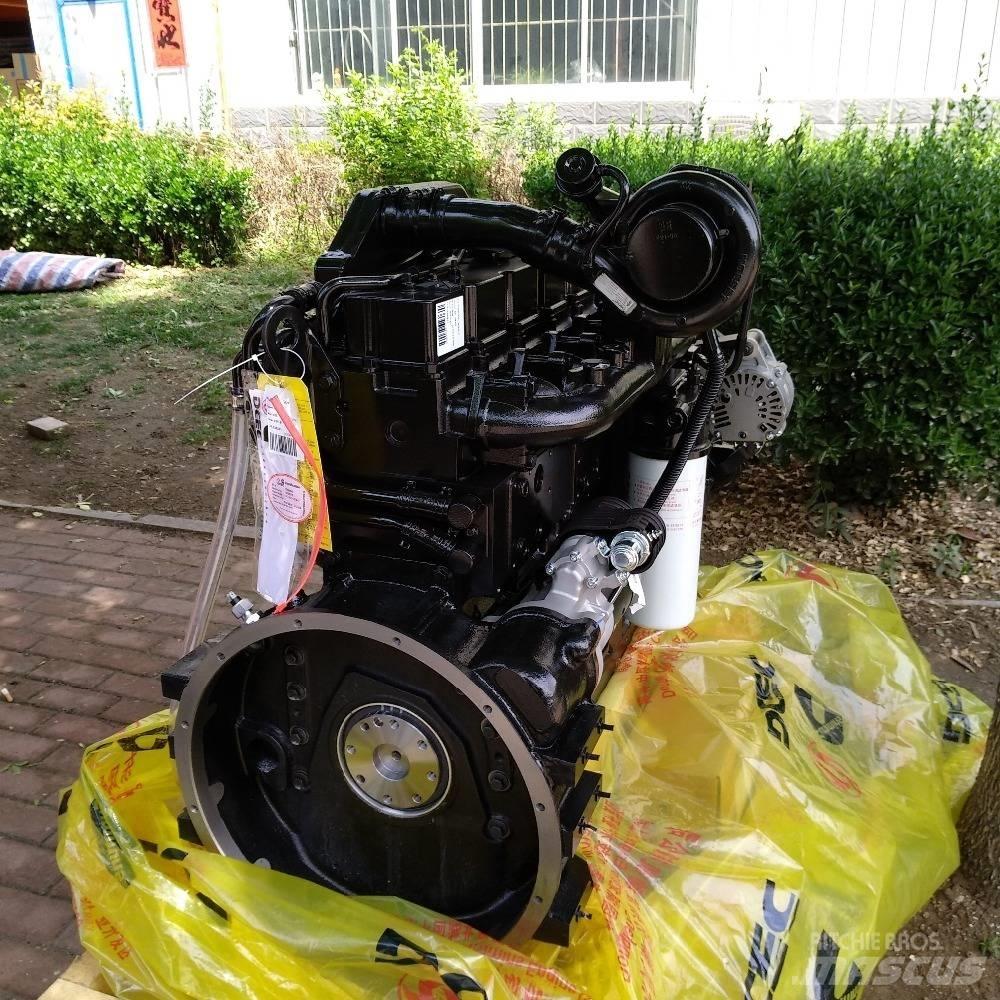

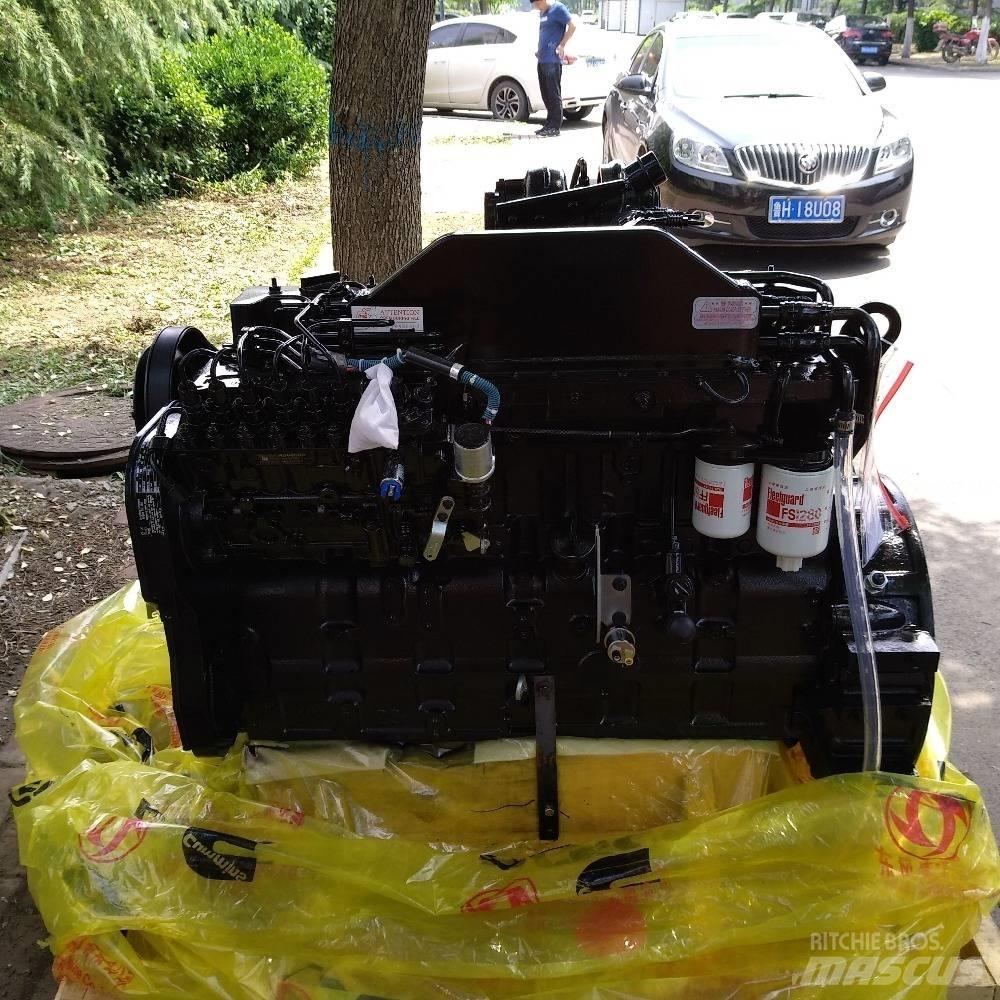

Cummins 6CTA8.3-C240 Industrial Diesel Engine
General Information
Engine Model 6CTA8.3-C240
Engine Type 6 Cylinders in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
Engine Configuration Number D413061CX03
Net Weight (with flywleel & alternator) 637 Kg
Overall Diemension(L*W*H) 1560mm*900mm*1400mm
Technical Specification
Certification Euro I
Aspiration Turbocharged & Intercooled
Fuel System Wuxi Weifu PW2000/RSV
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 9.8 L
Performance Data
Rated Power/Speed 179 kW/240HP 2200rpm
Max.Torque/Speed 1028N.m 1500 rpm
Fuel Consumption Rated Power 231g/Kw.h
Idel Speed 1000rpm
Max. Continuous Running Altitude 2000 m
