Cummins 6BT5.9-C150
Price excl. GST
Print
INFO
Type of Product Group
Engines
Brand / model
Cummins 6BT5.9-C150
Year of Production
2024
Condition
New/unused
Location
huangtun, 山东
Country
China
General grade
1
2
3
4
5
Mascus ID
E0133387
PRICE
Currency selection
ITEM DETAILS
Internal stock no.
6BT5.9-C150
Last Inspection Time
2024-12-26
Power Output
112 kW (152 hp)
Part ID
6BT5.9-C150
Service log books
Yes
Engine manufacturer
cummins
Manufacturing / Serial number
6BT5.9-C150
Fits to following machines
Firstly, assemble the internal components of the cylinder block. Secondly, install the cylinder head assembly, rocker arm chamber, oil pan, and rocker arm chamber cover. Finally, install the periphera
Transport weight
500 kg
Transport dimensions (LxWxH)
1200 x 1000 x 1400 mm
RPM
2400
Emission level
Stage II / Tier II
Condition info/guarantee
全新
Production country
China
Delivery terms
FCA, DAP, FOB, CIF, EXW
Extra information

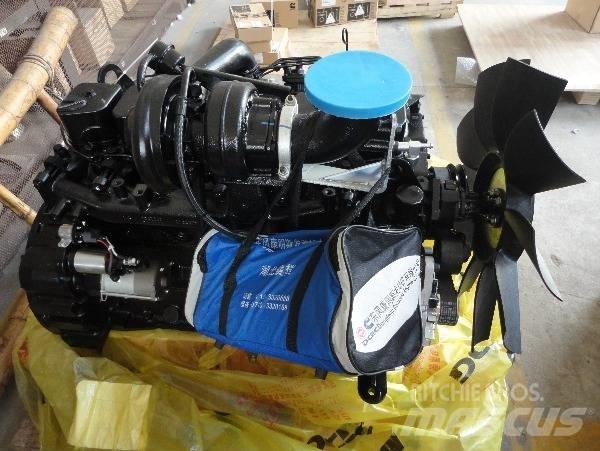

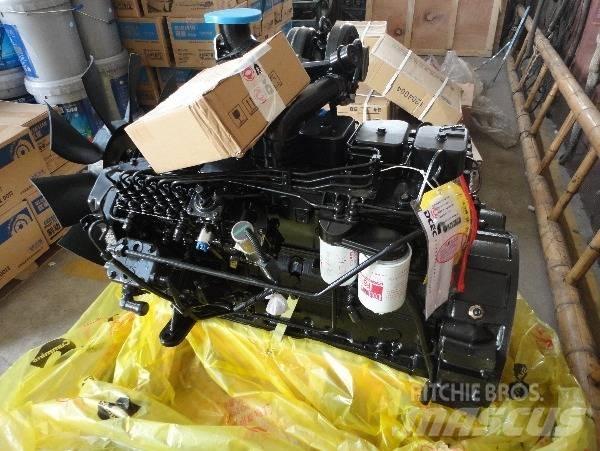

Cummins 6BT5.9-C150 Industrial Diesel Engine
General Information
Engine Model 6BT5.9-C150
Engine Type 6 Cylinders in Line
Displacement 5.9 L
Bore*Stroke(mm) 102 * 120
Engine Configuration Number D382043CX02
Net Weight (with flywleel & alternator) 432 Kg
Overall Diemension(L*W*H) 867mm*544mm*988mm
Technical Specification
Certification Euro I
Aspiration Turbocharged
Fuel System Wuxi Weifu A Pump/RSV Governor
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 9.9 L
Performance Data
Rated Power/Speed 112 kW/150HP @ 2400rpm
Max.Torque/Speed 580 N.m @ 1500 rpm
Fuel Consumption @ Rated Power 235g/Kw.h
Idel Speed 750 rpm
Max. Continuous Running Altitude 2000 m
