Cummins 4B3.9-G1
Price excl. GST
POA
2
Favorite
Share
Save searchPrint
INFO
Type of Product Group
Engines
Brand / model
Cummins 4B3.9-G1
Year of Production
2016
Condition
New/unused
Location
Jining,Shandong
Country
China
General grade
1
2
3
4
5
Mascus ID
25D86DF1
ITEM DETAILS
Power Output
23.5 kW (32 hp)
Service log books
Yes
Transport weight
350 kg
Transport dimensions (LxWxH)
1100 x 900 x 1400 mm
RPM
1500
Condition info/guarantee
NEW
Production country
China
Delivery terms
CPT, CIP, FOB, CFR, CIF, EXW
Extra information

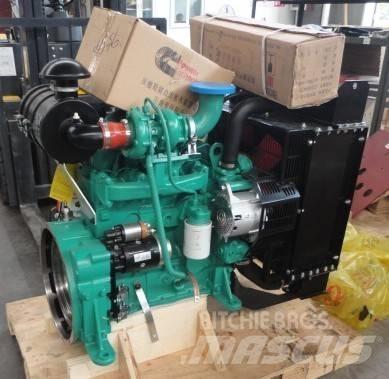

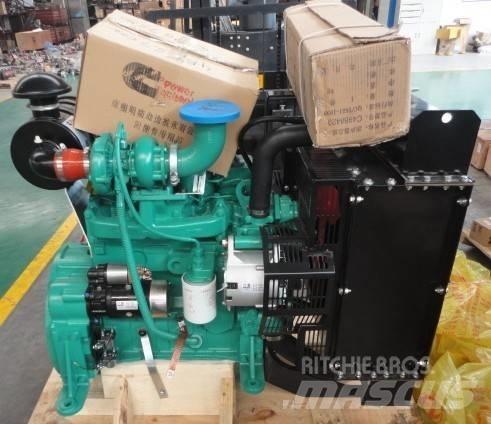

Cummins 4B3.9-G1 Generator Engine
General Information
Engine Model 4B3.9-G1
Engine Type 4 Cylinders, in Line
Displacement 3.9 L
Bore*Stroke(mm) 102 * 120
CPL Number PP 3114
Net Weight (with flywleel & alternator) 308 KG
Overall Diemension(L*W*H) 867mm*544mm*988mm
Technical Specification
Fuel System BYC A Pump/RSV Mechanical Governor
Aspiration Naturally Aspirated
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 7.2 L
Performance Data
Rated Power/Speed 24kW/32HP @ 1500rpm
Torque @ Rated Power 153 N.m @ 1500 rpm
Standby Power/Speed 27 kW/36HP @ 1500rpm
Torque @ Standby Power 172 N.m @ 1500 rpm
Fuel Consumption @ Rated Power 229g/kW.h
Fuel Consumption @ Standby Power 228g/kW.h
Idel Speed 950 – 1050 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
