Volvo EC 460

Price excl. GST

Compnay LOGO
Images9

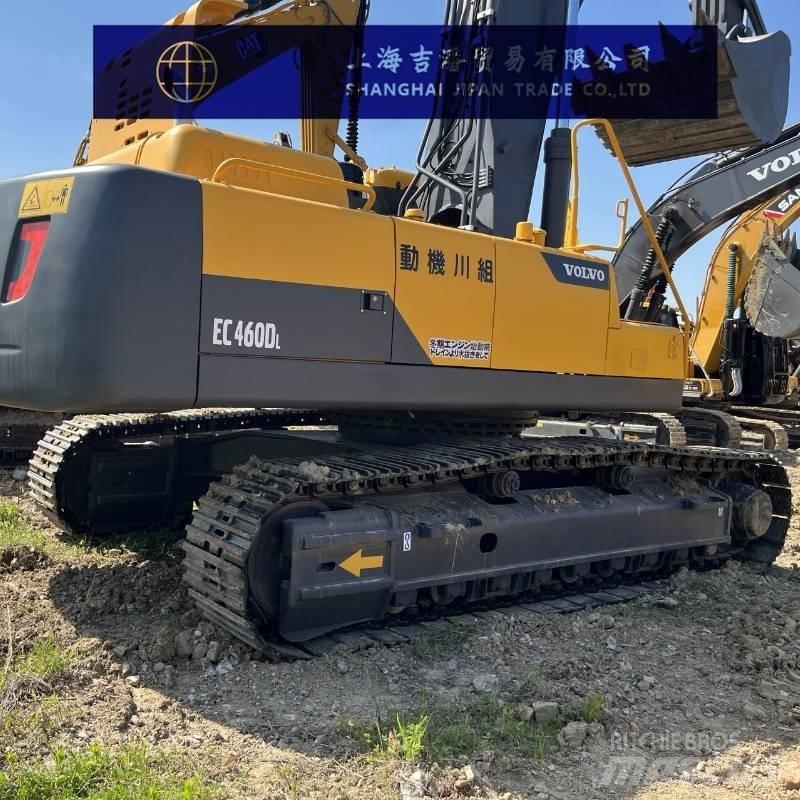

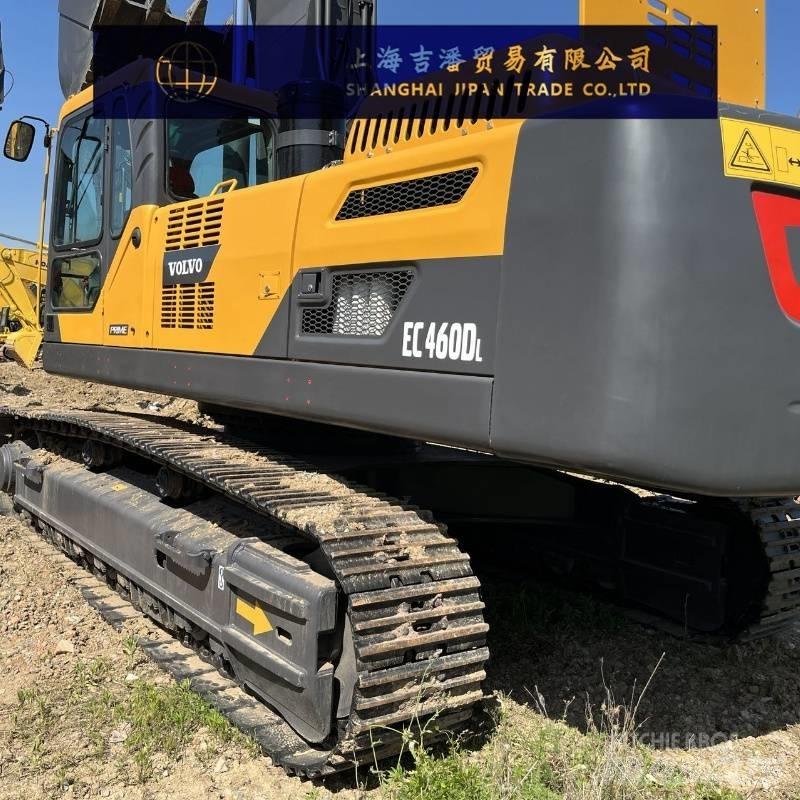

Volvo EC 460 Crawler excavators
Volvo EC 460 Crawler excavators
Volvo EC 460 Crawler excavators
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Crawler excavators
Brand / model
Volvo EC 460
Year of Production
2023
Hours of operation
700 h
Country
China
General grade
1
2
3
4
5
Mascus ID
96D1FE53

PRICE

Currency selection

ITEM DETAILS

Internal stock no.
1
Power type
Diesel
Manufacturing / Serial number
1
Amount of previous owners
1
Last Inspection Time
2025-04-15
Undercarriage condition
Good Condition
Engine
Original
Gross Weight
44,500 kg
Power Output
245 kW (333 hp)
Engine manufacturer
Original
Registration number
1
Emission level
Stage V / Tier V
Bucket capacity
3.73 m3
Track width
3,340 mm
Output of the auxiliary hydraulics
345 l/min
Top speed
4.80 km/h
Transport dimensions (LxWxH)
12070 x 3340 x 3650 mm
Original colour
Original
Dipper / stick length
3,350 mm
Condition info/guarantee
1 Year
Production country
South Korea
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Air conditioning
Additional hydraulics
Skeleton bucket
Battery disconnector
Show more
Extra information
沃尔沃EC460挖掘机参数配置 规格 整机工作重量(kg)44500 铲斗容量(m³)1.8-3.73 动臂长度(mm)7000 斗杆长度(mm)3350 原产地中国上海 吨位(吨)46 厂商合资/进口 动力传统动力 铲斗反铲 厂商合资/进口 动力传统动力 性能 回转速度(rpm)8.5 行走速度(km/h)2.9/4.8 爬坡能力(%)70 接地比压(Kpa)77.5 铲斗挖掘力(kN)253.0(标准)/276.5(加力) 斗杆挖掘力(kN)195.1(标准)/213.8(加力) 动力系统 发动机型号沃尔沃D12D 额定功率(kw/rpm)245/1800 排量(L)12.1 气缸数(个)6 缸径×行程(mm)131×150 冷却方式水冷 工作形式最大扭矩：1720N.m/1350rpm 液压系统 主泵类型变量轴向柱塞泵×2+齿轮泵 主泵最大流量(l/min)345×2+31 行走液压马达型式变量轴向柱塞马达 回转液压马达型式轴向柱塞液压马达 工作液压油路(Mpa)31.4/34.3 行走液压回路(Mpa)31.4 回转液压回路(Mpa )24.5 控制液压回路(Mpa )3.9 动臂油缸-个数×缸径×行程(mm)2-165×1590 斗杆油缸-个数×缸径×行程(mm)1-190×1850 铲斗油缸-个数×缸径×行程(mm)1-165×1335 液压破碎管路是否标配否 油类容量 燃油箱(L)685 液压油箱(L)270 液压系统(L)525 发动机油更换量(L)42 冷却液(L )60 主体尺寸 运输总长度(mm)12070 运输总宽度(mm)3340 运输总高度(mm)3650 驾驶室全高(mm)3250 配重离地间隙(mm)1275 履带接地长度(mm)4370 履带总长度(mm)5370 履带板宽度(mm)600 履带总宽度(mm)3340 履带轨距(mm)2740 最小离地间隙(mm )550 前段工作装置最小回转半径(mm)5090 后端回转半径(mm )3730 作业范围 最大挖掘半径(mm)12000 停机面最大挖掘半径(mm)11780 最大挖掘深度(mm)7700 最大挖掘高度(mm)10970 最大卸载高度(mm)7650 最大垂直挖掘深度(mm)6840 最大有效挖掘深度(mm)7550Show more
