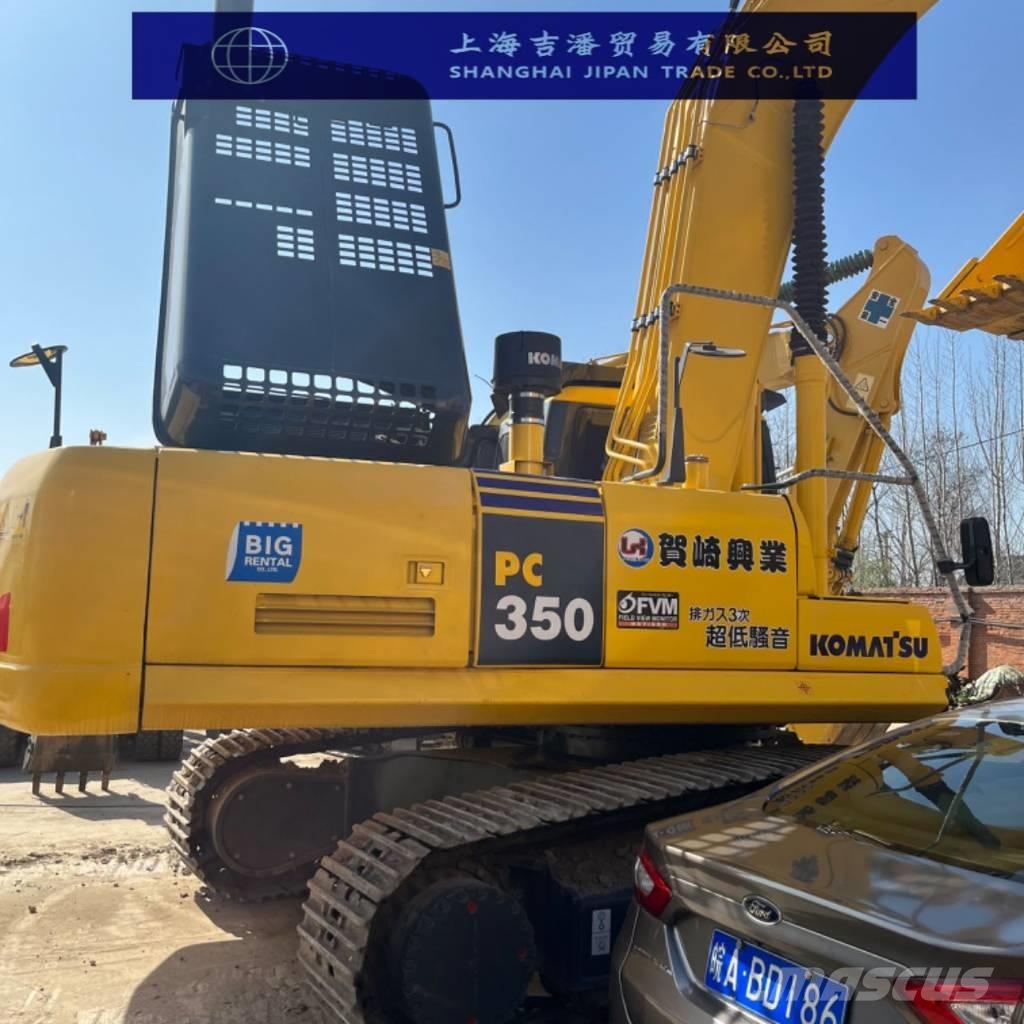

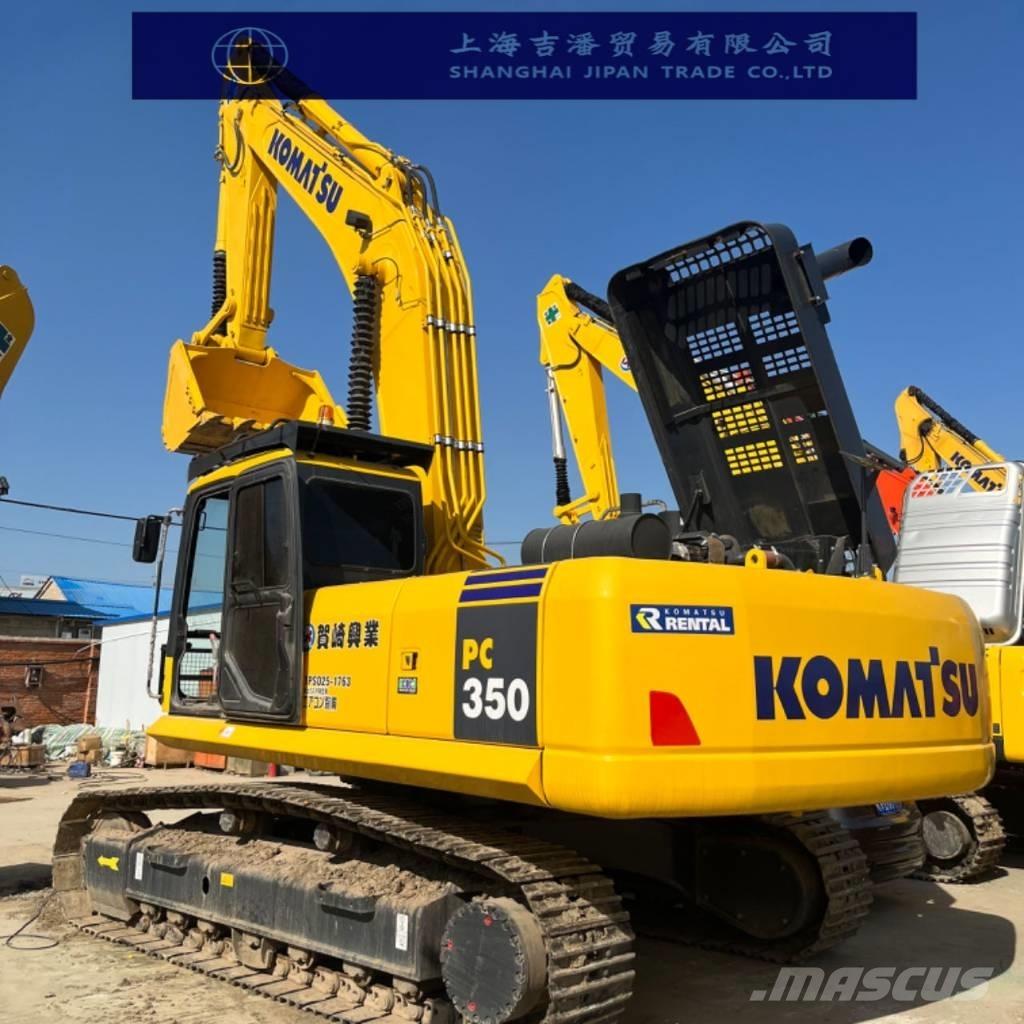

Komatsu PC 350
Price excl. GST
Print
INFO
Type of Product Group
Crawler excavators
Brand / model
Komatsu PC 350
Year of Production
2022
Hours of operation
1,564 h
Country
China
General grade
1
2
3
4
5
Mascus ID
EB6468C0
PRICE
Currency selection
ITEM DETAILS
Power type
Diesel
Amount of previous owners
1
Last Inspection Time
2025-08-22
Undercarriage condition
98%
Engine
original
Gross Weight
32,600 kg
Power Output
184 kW (250 hp)
Engine manufacturer
original
Emission level
Stage V / Tier V
Bucket capacity
1.40 m3
Track width
600 mm
Transport dimensions (LxWxH)
11140 x 3190 x 3280 mm
Original colour
original
Condition info/guarantee
1 year
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
Accessories

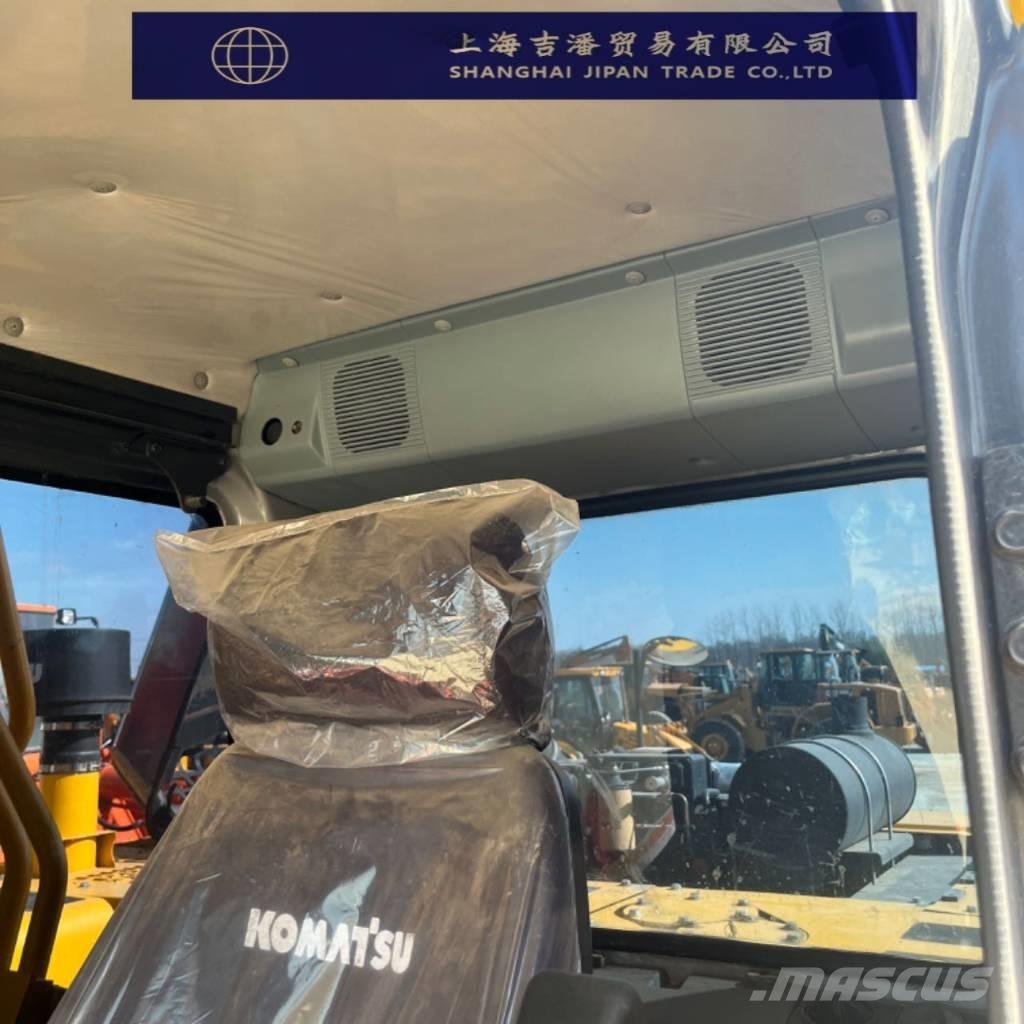

Air conditioning
Skeleton bucket
Joystick control
Standard digging bucket
Extra information
Machine Parameters:
Operating weight: 32,600 kg
Bucket capacity: 1.4 m³
Boom length: 6,470 mm
Arm length: 3,185 mm
Ton class: 35 tons
Performance Parameters:
Swing speed: 9.5 rpm
Travel speed: 3.2/4.5/5.5 km/h
Gradeability: 70%
Power System Parameters:
Engine model: Komatsu SAA6D114E-3
Rated power: 184 kW @ 1,950 rpm
Number of cylinders: 6
Bore × stroke: 114 × 135 mm
Cooling method: Water-cooled
Hydraulic System Parameters:
Maximum main pump flow: 535 l/min
Working hydraulic circuit pressure: 37.3 Mpa
Travel hydraulic circuit pressure: 37.3 Mpa
Swing hydraulic circuit pressure: 27.9 Mpa
Control hydraulic circuit pressure: 3.2 Mpa
Boom cylinders - Quantity × Bore × Stroke: 2 - 140 × 1,480 mm
Arm cylinders - Quantity × Bore × Stroke: 1 - 160 × 1,825 mm
Bucket cylinders - Quantity × Bore × Stroke: 1 - 140 × 1,285 mm
Fluid Capacity Parameters:
Fuel tank: 605 L
Hydraulic oil tank: 188 L
Engine oil change capacity: 35 L
Coolant: 32 L
