CAT 306CR

Price excl. GST

Compnay LOGO
Images24

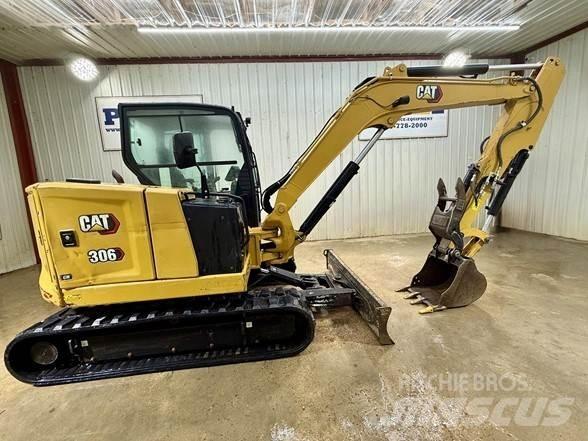

CAT 306CR Crawler excavators
CAT 306CR Crawler excavators
CAT 306CR Crawler excavators
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Crawler excavators
Brand / model
CAT 306CR
Year of Production
2020
Hours of operation
2,258 h
Location
Trinidad, Texas
Country
United States
Mascus ID
F55B25F5

PRICE

Currency selection

ITEM DETAILS

Manufacturing / Serial number
CAT00306K6G601897
Gross Weight
7,151 kg
Power Output
40.5 kW (55 hp)
Extra information
Description: Machine Highlights Year: 2020 Make: CAT Model: 306CR Cab Hydraulic Thumb Straight Blade 2 Speed 54HP Max Dig Depth: 12’16” Operating Weight: 15,766 LBS Hours: 2258 Serial Number: CAT00306K6G601897 Warranty Emissions warranty until 10/22/2025 or 3,000 hours EXTENDED WARRANTY AVAILABLE FOR PURCHASE Ask one of our salesman for more information! Engine Make: CAT Model: C2.4 Turbo Net Power: 55.9 HP Gross Power - ISO 14396: 57.9 HP Displacement: 148 in³ Bore: 3.4 in Stroke: 4 in Net Power ... 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269: 55.9 HP Specifications Straight Blade Width: 78 in Straight Blade Height: 15.4 in Stick Length: 62 in Vertical Wall: 107 in Swing Bearing – Height: 27 in Maximum Reach - Ground Level: 241 in Maximum Blade Height: 16 in Ground Clearance: 12 in Boom In Reach: 98 in Boom Swing – Right: 36 in Transport Height: 69 in Tail Swing with Counterweight: 58 in Cab Height: 100 in Width over Upper House: 77 in Maximum Dump Clearance: 170 in Tail Swing without Counterweight: 53 in Boom Swing – Left: 29 in O/A Undercarriage Length: 102 in Maximum Dig Height: 230 in Maximum Blade Depth: 24 in O/A Track Width: 78 in Dig Depth: 146 in O/A Shipping Length: 235 in Maximum Operating Weight with Cab: 15,766 LBS Travel Ground Pressure - Minimum Weight: 5.1 psi Ground Pressure - Maximum Weight: 5.7 psi Gradeability – Maximum: 30 degrees Maximum Traction Force - High Speed: 6969 lbf Maximum Traction Force - Low Speed: 12589 lbf Travel Speed – High: 3.1 mile/h Travel Speed – Low: 1.7 mile/h Service Capacity Cooling System: 2.6 gal Hydraulic System: 27.5 gal Hydraulic Tank: 14 gal Engine Oil: 2.1 gal Fuel Tank: 34.3 gal Hydraulic System Operating Pressure – Travel: 3553 psi Auxiliary Circuit - Primary – Flow: 24 gal/min Digging Force – Bucket: 11578 lbf Auxiliary Circuit - Primary – Pressure: 3553 psi Type: Load Sensing Hydraulics Variable Displacement Piston Pump Auxiliary Circuit - Secondary – Flow: 9 gal/min Operating Pressure – Equipment: 3553 psi Auxiliary Circuit - Secondary – Pressure: 3553 psi Digging Force - Stick – Standard: 6632 lbf Operating Pressure – Swing: 3263 psi Digging Force: 5957 lbf Pump Flow at 2,400 rpm: 40 gal/min Swing System Boom Swing – Right: 65 degrees Boom Swing – Left: 60 degrees Machine Swing Speed 11 r/min 2020 CAT 306CR CAB MINI TRACK EXCAVATOR WITH HYDRAULIC THUMB, STRAIGHT BLADE. WITH AN OPERATING WEIGHT OF 15,766LBS! EMISSIONS WARRANTY UNTIL 10/22/2025 OR 3,000 HOURS. EXTENDED WARRANTY AVAILABLE FOR PURCHASE. ASK ONE OF OUR SALESMAN FOR MORE INFORMATION! SE HABLA ESPAÑOL! BANK FINANCING IS AVAILABLE! PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES! Airconditioning: 1 Coupler: 1 Digdepth: 1944.000000000000 Enginemake: CAT Enginemodel: C2.4 TURB Heater: 1 Ropstype: Enclosed Thumb: 1 Tracktype: Rubber Shippinglength: 234 Thumbtype: Hydraulic Bucketwidth: 24 Numberofbuckets: 1 Quickattach: 1 Numforwardspeeds: 2 Ridecontrol: 0 Shippingheight: 95 Shippingweight: 15766 Dumpheightmax: 241 Counterweight: 1 Turbo: 1Show more

Providence Equipment

4435 State Highway 274 75163 Trinidad Texas United States
