INFO

Type of Product Group
Crawler dozers
Brand / model

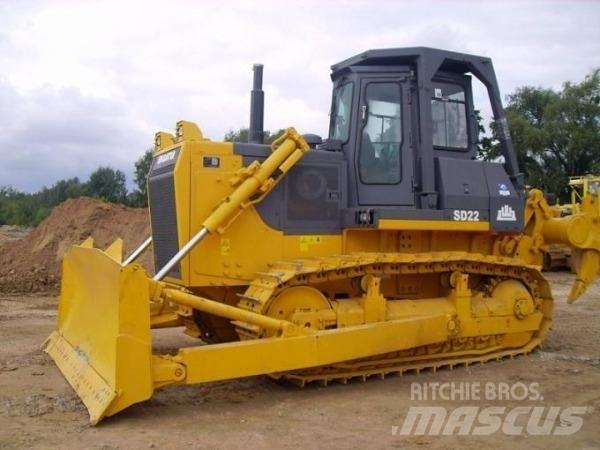

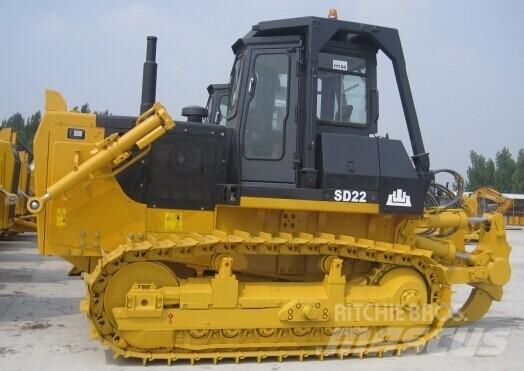

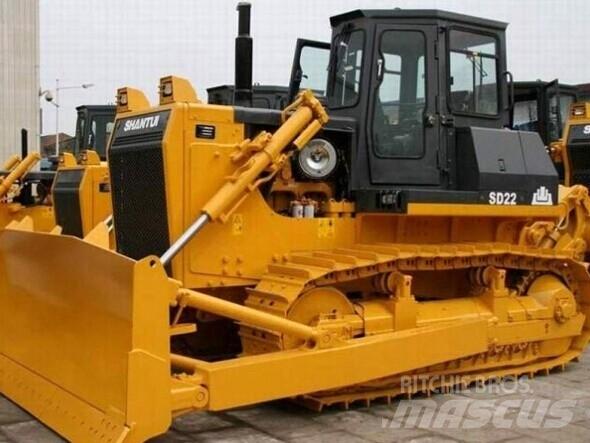

Shantui SD22
Year of Production
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
168F6307

ITEM DETAILS

Internal stock no.
SD22
Last Inspection Time
yes
Service log books
Yes
Working width
375 cm
Manufacturing / Serial number
SD22
Gross Weight
23,400 kg
Blade type
Straight blade
Undercarriage
Tracked
Cabin type
Enclosed cab
Emission level
Stage II / Tier II
Engine
NT855-C280S10
Power Output
160 kW (217 hp)
Track width
560 mm
Transmission
Shantui
Transport dimensions (LxWxH)
5750 x 3750 x 3400 mm
Original colour
yellow
Tyre brand
Shantui
Condition info/guarantee
ISO9001
Front tyres remaining
100
Production country
China
Equipped for
propertynames.pp_equippedfor_2100012
Delivery terms
FOB, CFR, CIF, EXW
Certificates
EPA, CE, ANSI
Attachments
Single ripper / Three-shank ripper
Accessories
Winch
Air conditioning
Additional hydraulics
Single shank ripper
Show more
Extra information
L×W×H (Ripper not included) 5750×3725×3395mm Operating weight (Ripper not included) 23.4t Engine CumminsNT855-C280S10 Rated power 162/1800kW/rpm Gradeability 30° Blade type Straight tilt blade U-blade  Semi-U blade  Angle blade Blade width Straight tilt blade 3725×1315mm U blade 3800×1343mm Semi-U blade 3725×1374mm Angle blade 4365×1055mm Dozing capacity Straight tilt blade 6.4m3 U blade 7.5m3 Semi-U blade 7.0m3 Angle blade 4.7m3 Ma× drop below ground of blade 540mm Lift height of blade 1210mm Ripper type Single ripper Three-shank ripper Ripping depth of ripper Single ripper 695mm Three-shank ripper 666mm Lifting height of ripper Single ripper515mm Three-shank ripper 555mm Number of carriers (each side) 2 Number of track rollers (each side) 6 Number of track shoes (each side) 38 Width of track shoe 560mm Track gauge 2000mm Ground length and ground pressure 2730-0.077mm/MPa Pitch 216mm Forward speed 0–3.6km/h 0–6.5km/h 0–11.2km/h Reverse speed 0–4.3km/h 0–7.7km/h 0–13.2km/hShow more

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
10
Years on Mascus
