Leica TCR803

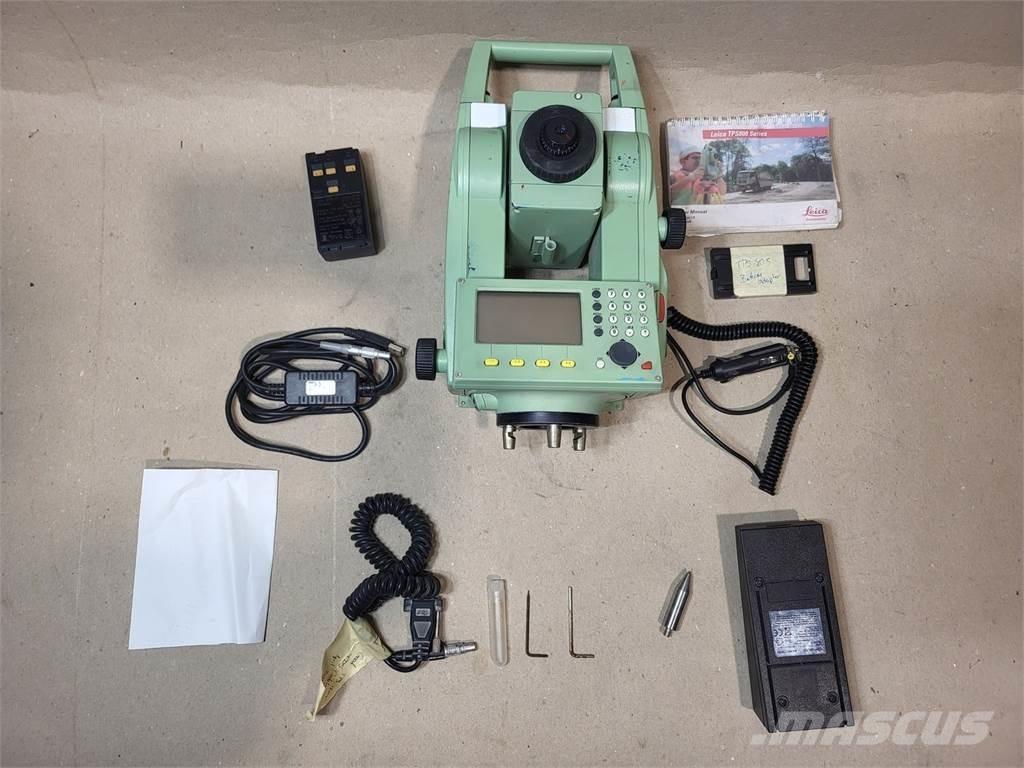

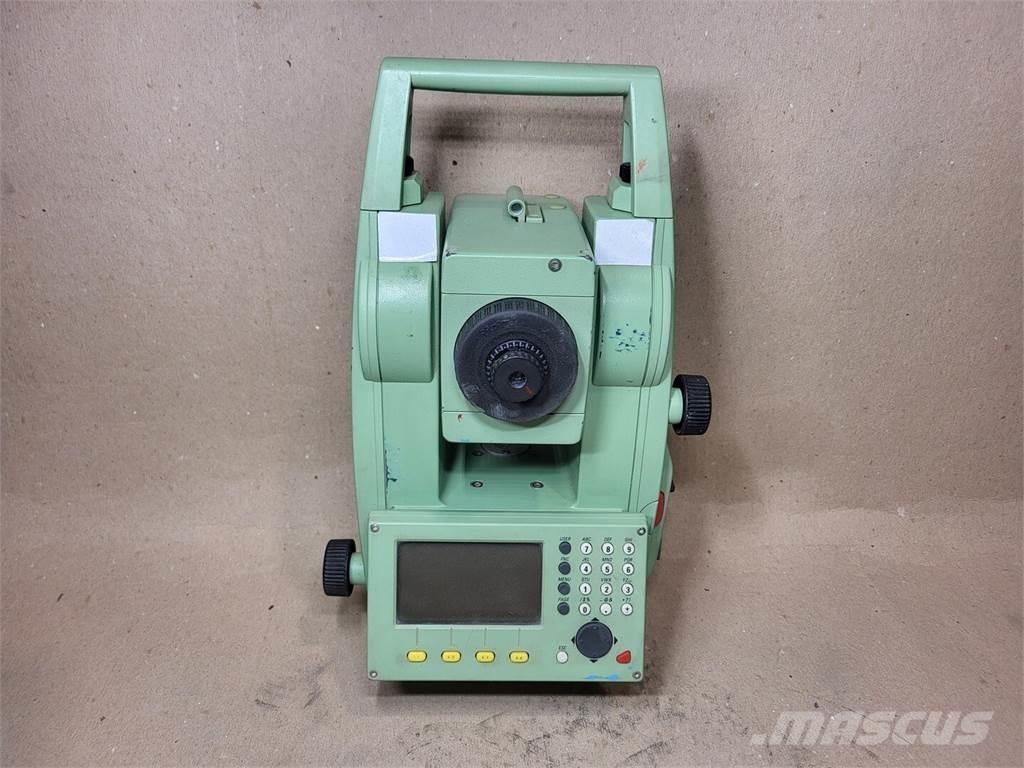

USED–LIKE NEW Leica TCR803 Robotic Total Station – Surveying Equipment Lasers Title: Robotic Total Station TCR803 SKU: 139183 Model: TCR803 Condition: Used - Like New Made In: SWITZERLAND Dimensions: 15.00 (H) x 11.00 (W) x 20.00 (L) inches Overview: - Angular Measurement - Angular Accuracy: 3 arc-seconds - Angle Reading Resolution: 1" / 5" / 10" (configuration dependent) - Distance Measurement (EDM) - With Prism: Up to approx. 5,000 m (depending on prism and conditions) - Reflector less Mode: Up to approx. 800 -1,000 m (surface and conditions dependent) - Distance Accuracy: (2 mm + 2 ppm) typical - Compensation - Compensator Type: Dual-axis compensator - Function: Automatic correction of horizontal and vertical axis misalignment - Robotic Functionality - Robotic Operation: Motorized target tracking - Remote Control Capability: Yes (with compatible Leica controller) - Software Compatibility: Leica survey software platforms (model and version dependent) - Data & Connectivity - Communication Interface: RS-232 - Internal Memory: Integrated data storage for field measurements - Data Export Formats: TXT, CSV, DXF (software dependent) - Environmental Specifications - Operating Temperature: -20°C to +50°C - Ingress Protection: Approx. IP55 (dust and splash resistant) - Field Use: Designed for harsh outdoor and construction environments - Power Supply - Power Source: Rechargeable Leica battery (GEB series) - Battery Voltage: Approx. 7.2 - 7.4 V DC - Typical Operating Time: 8 - 10 hours (usage dependent)
