Schwing sp305

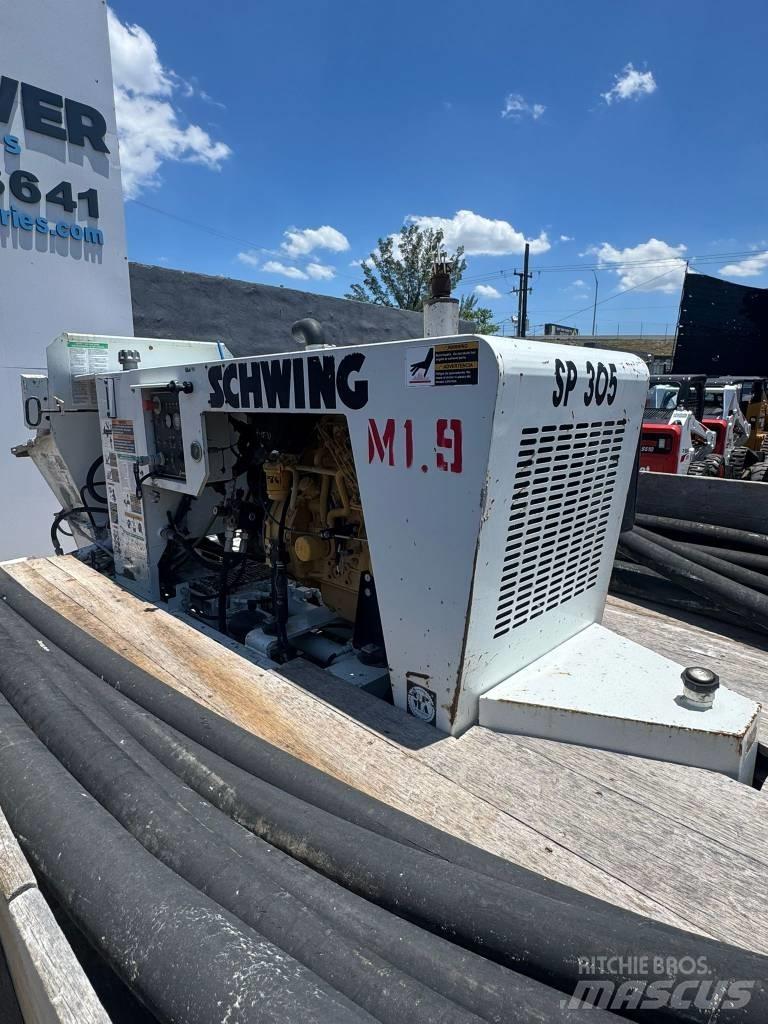

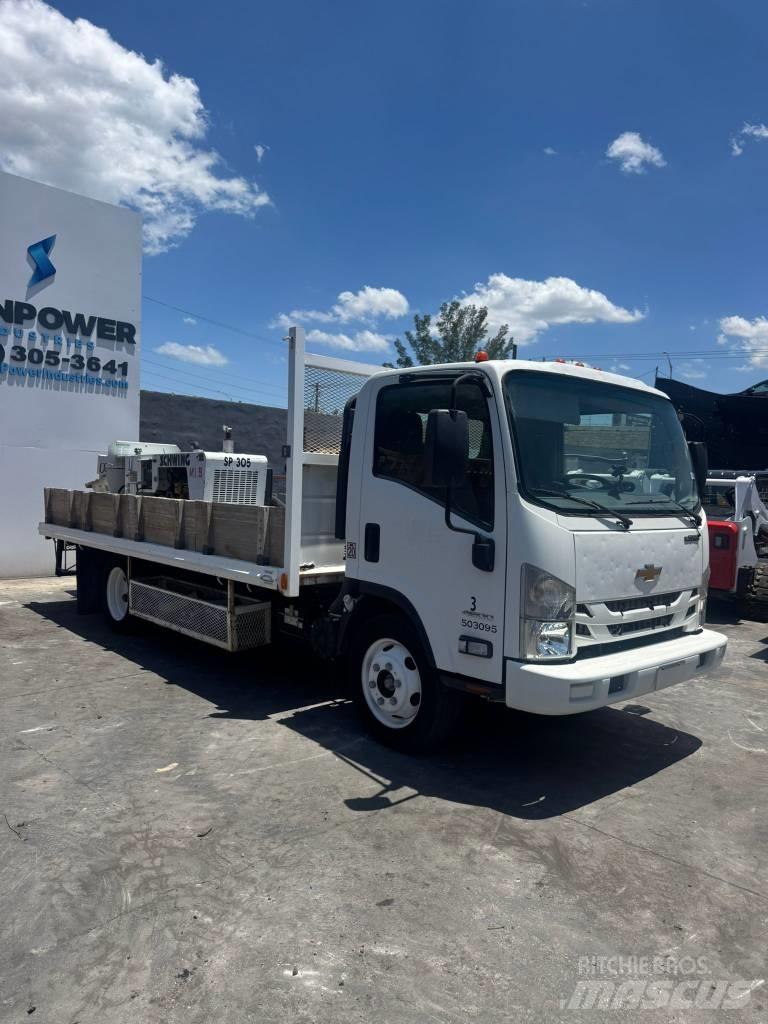

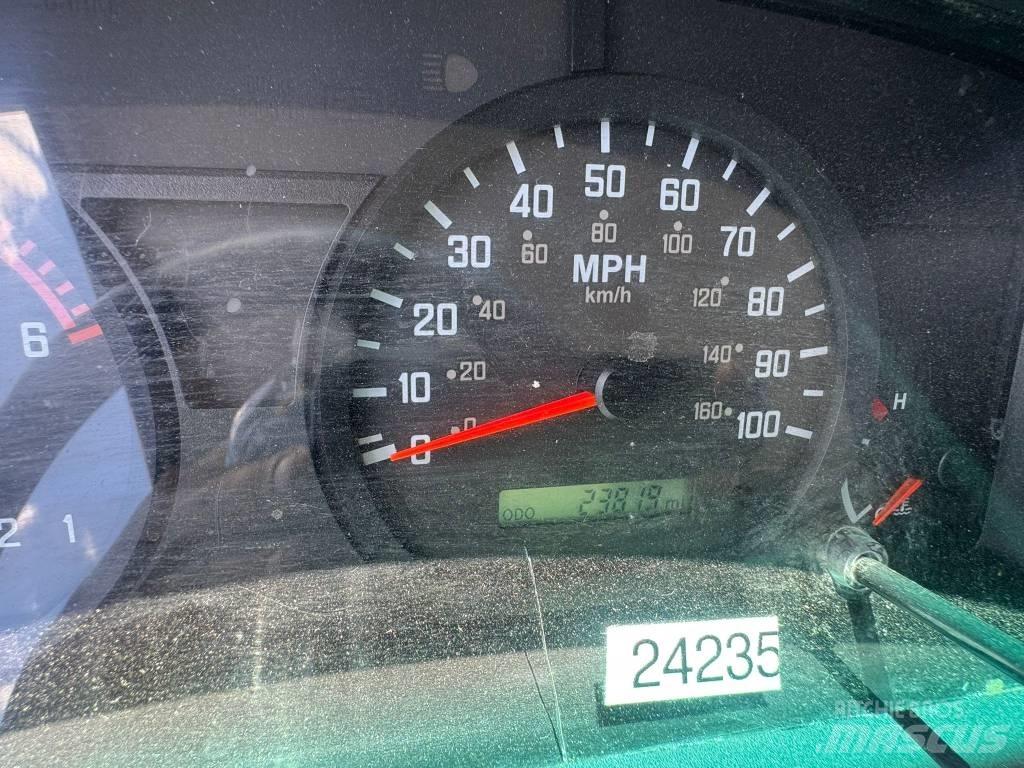

2018 Schwing Concrete pump SP 305 on a 4500 Chevy Truck Item SKU: 121510 Chevy 4500 Specs Milles: 23,819 Year: 2018 Type: 6.0-liter V8 Horsepower: 341 Torque: 373 lb-ft Transmission: Type: 6-speed automatic Drivetrain: Drive: Rear-wheel drive GVWR: 14,001–16,500 lbs Wheelbase: 165" to 243" (Regular Cab), 175" to 235" (Crew Cab) Cab Styles: Regular Cab, Crew Cab, Cutaway Bed Lengths: 84", 108", 120", 132", 156", 176" Max Payload: Up to 9,000 lbs Max Towing Capacity: Up to 37,000 lbs Gross Combined Weight Rating (GCWR): Up to 34,000 lbs Schwing SP305 Concrete pump Specs Year: 2018 Hours: 1,054 Concrete Output Per Hour: 30 cu yds Maximum Pressure on Concrete: 625 ps Maximum Aggregate Size: 0.75 in Concrete Cylinder Diameter: 5 in Concrete Cylinder Stroke Length: 30 in Differential Piston/Rod Diameter: 2.5/1.75 in Outlet Diameter: 4 in Concrete Valve Type: Transfer Tube Shifting Cylinders: 2 Max. Pump Strokes Per Minute:40 Volume Control: 0% to Maximum Hydraulic System: Open Loop Main Hydraulic Pump: A10VO45 Hydraulic Pressure: 2500 psi Hydraulic Tank Capacity: 35 gal Engine Model – Diesel Tier 4 F: CAT® C2.2 Engine Power: 48.8 hp Fuel Tank Capacity: 19 gal Hopper Capacity: 8 cu ft Hopper-Height: 50.5 in Axle Single Standard Axle Capacity Rating : 5500 lbs Tires: ST 225/75 R12 Brake: Electric Outrigger Legs: Manual Standard Dimensions: Length : 12’ 2” Width: 151 in Height: 80 in Units Weight 4450 lbs
