Putzmeister M56-5

Price excl. GST

Images39Videos1

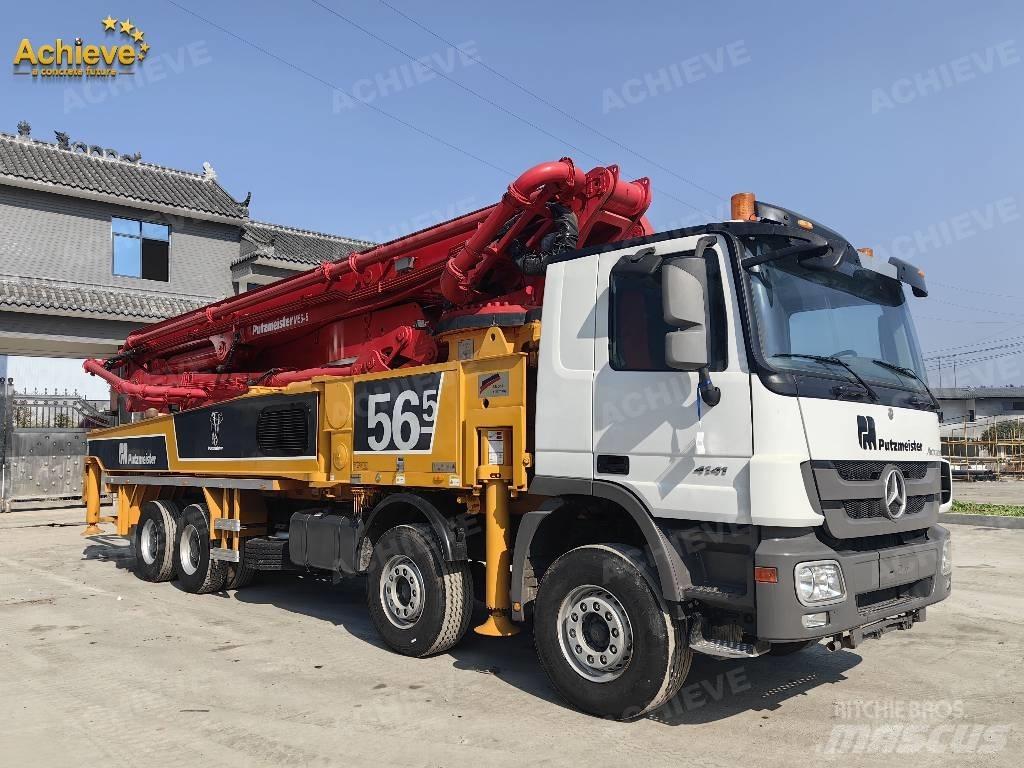

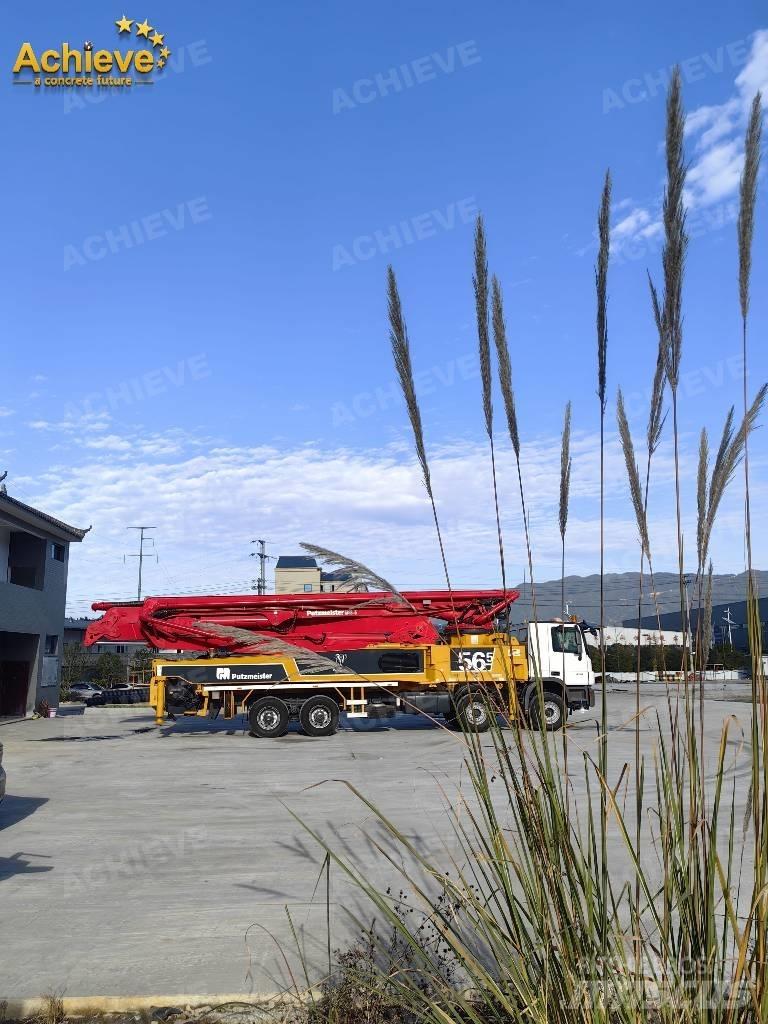

Putzmeister M56-5 Concrete pumps
Putzmeister M56-5 Concrete pumps
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Concrete pumps
Brand / model
Putzmeister M56-5
Year of Production
2017
Hours of operation
3,000 h
Condition
Reconditioned,Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
379C7292

PRICE

Currency selection

ITEM DETAILS

Internal stock no.
AICPT028
Number of boom sections
5
Last Inspection Time
2024-09-26
Gross Weight
32,000 kg
Boom length
300 cm
Max horizontal reach
4,990 cm
Max vertical reach
5,510 cm
Movement type
Static
Pump power type
Diesel
Pump power
300 kW
Transport dimensions (LxWxH)
14100 x 2500 x 4000 mm
Emission level
Stage V / Tier V
Engine manufacturer
Ergonic3. EU Version
Pump type
Piston
Chassi manufacturer
Mercedes Benz
Tyre brand
Mercedes Benz
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Attachments
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 55.1 m Horizontal Reach gross 49.9 m Horizontal Reach net 45.6 m Reach Depth 40.3 m Unfolding Height 15.6 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 9.0 / 12.4 m Support width OSS (front-rear) 5.9 / 8.1 m Support width iSC (front/rear) 2.6-9 / 3-12.4 m Length x Width x Height 14.1 x 2.5 x 4 mm Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Extra information
The Putzmeister M56-5 truck-mounted concrete pump is ideal for industrial or high-rise building projects which require large radius of distribution and high performance. The M56-5 is compact, reliable, easily manageable, and economical. As an option this truck-mounted concrete pump can be mounted on a 4 axle (for countries outside of Europe) or 5 axle chassis of various manufacturers. The new fully flexible outrigger gives you all the freedom you need when space on the construction site is tight again. Key Features Longlife design for tough jobs - industry leader with light steel design Maximum safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Minimal service costs thanks to maintenance-free components Longest steel boom on 4 axlesShow more

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
