Putzmeister M38-4

Price excl. GST

Images30Videos1

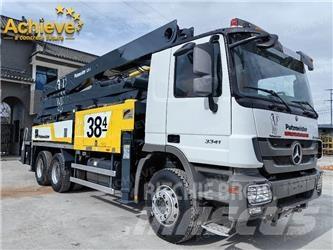

Putzmeister M38-4 Concrete pumps
Putzmeister M38-4 Concrete pumps
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Type of Product Group
Concrete pumps
Brand / model
Putzmeister M38-4
Year of Production
2012
Hours of operation
3,000 h
Condition
Reconditioned,Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
DBCC6170

PRICE

Currency selection

ITEM DETAILS

Internal stock no.
AICPT008
Number of boom sections
4
Last Inspection Time
2024-09-26
Service log books
Yes
Gross Weight
26,000 kg
Boom length
400 cm
Max horizontal reach
3,240 cm
Max vertical reach
3,560 cm
Movement type
Static
Pump power type
Diesel
Pump power
300 kW
Transport dimensions (LxWxH)
11500 x 2500 x 3900 mm
Emission level
Stage V / Tier V
Engine manufacturer
Mercedes Benz OM501LA.III/17
Pump type
Piston
Chassi manufacturer
Mercedes Benz
Tyre brand
Mercedes Benz
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Attachments
General Information Arms 5 Folding Type RZ-Folding Vertical Reach 37.5 m Horizontal Reach gross 32.8 m Horizontal Reach net 30.3 m Reach Depth 25.3 m Unfolding Height 7.4 m Slewing Range 365 degree End Hose - Length 4 m Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27
Extra information
Putzmeister M38-5 is the perfect truck-mounted concrete pump for medium to high-volume concrete pours. It can also be used for universal job sites. It is consistently efficient thanks to clever ergonomic design. It is also safer than before considering the current standards and guidelines. This truck mounted concrete pump can be mounted on Chassis of various manufacturers as well as on 3-axles and 4-axles chassis. Key Features A gross weight of less than 26 t incl. sufficient reserves for payload and operating materials Steady 5-arm placing boom, thanks to intelligent laying of the delivery line and the harmonious development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs, thanks to maintenance-free components, fewer special components (e.g. only 2 sShow more
