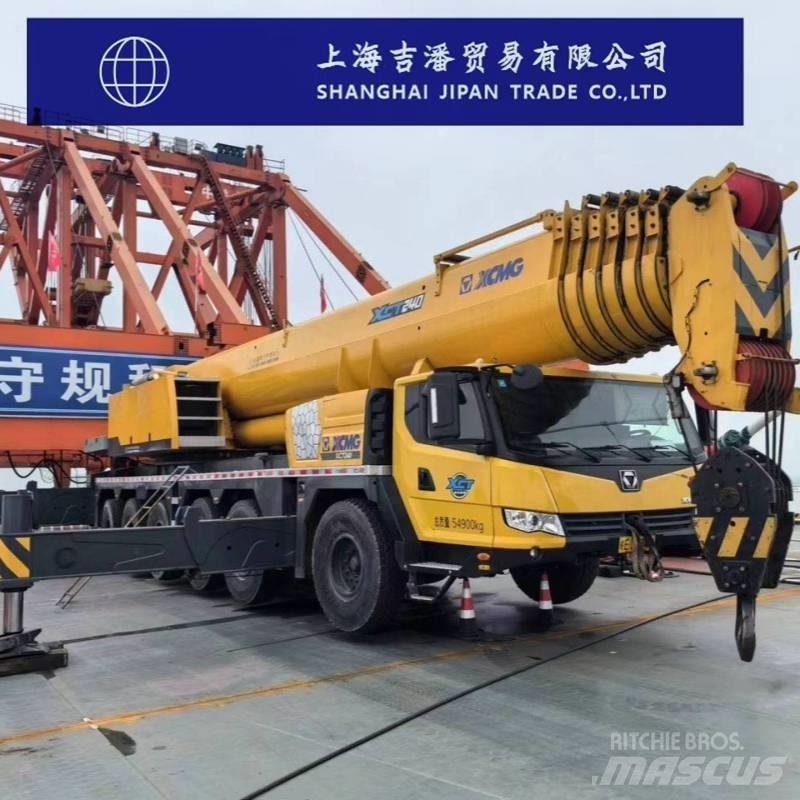

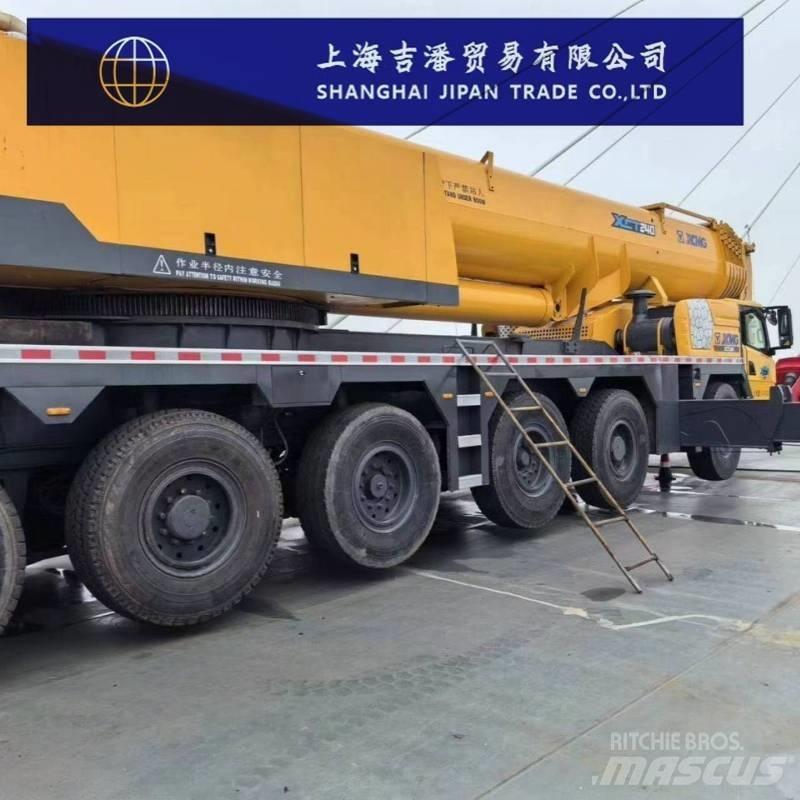

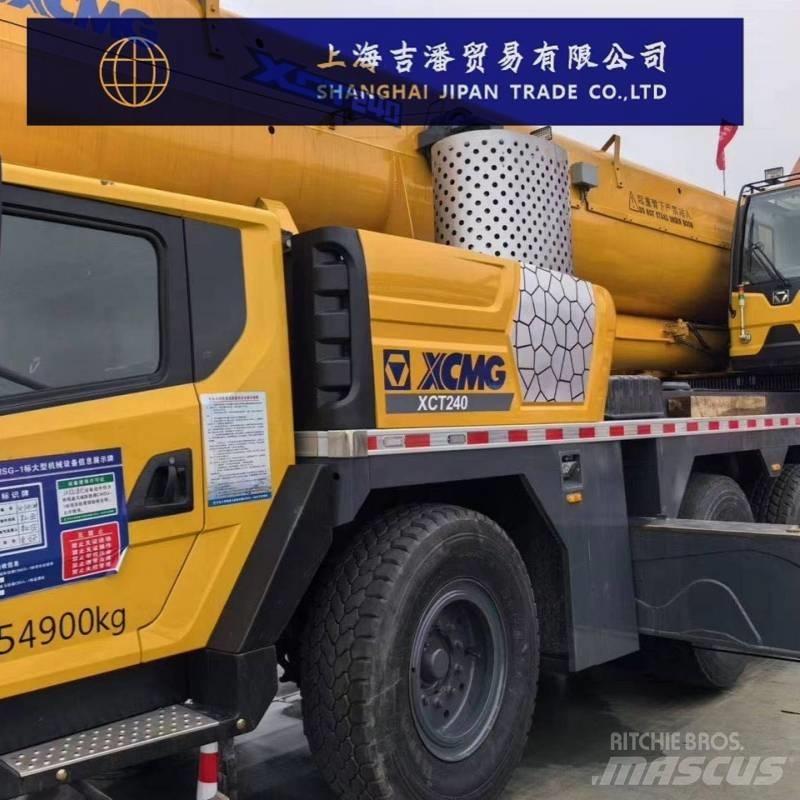

XCMG XCT 240
Price excl. GST
Print
INFO
Type of Product Group
All terrain cranes
Brand / model
XCMG XCT 240
Year of Production
2022
Hours of operation
2,000 h
Country
China
General grade
1
2
3
4
5
Mascus ID
23A1D290
PRICE
Currency selection
ITEM DETAILS
Internal stock no.
1
Last Inspection Time
2025-07-10
Manufacturing / Serial number
1
Amount of previous owners
1
Gross Weight
220,000 kg
Maximum lift capacity
240,000 ton
Registration number
1
Max lifting capacity at end of jib
240,000 ton
Min boom length
14 m
Emission level
Stage V / Tier V
Boom length
16 m
Min luffing jib
11 m
Luffing jib
15 m
Jib length of crane
15 m
Maximum lift height
85 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
14 m
Upper engine
Benz
Upper hours
857 h
Crane type
Hydraulic jib
Original colour
Original
Counterweight
14,000
Carrier engine
Original
Engine manufacturer
Original
Transport dimensions (LxWxH)
Original m
Carrier type
Wheeled
Condition info/guarantee
Good Condition
Tyre brand
米其林
Front tyres remaining
98
Rear tyres remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib ,Hook ,Counter Weight, ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Extra information
Maximum rated lifting capacity: 240 tons
Boom: 7-section "U" -shaped cross-section boom, with a length of up to 67 meters
Chassis: 6-axle chassis, drive/steering mode: 12×6×10
Engine: The engine model of the vehicle is OM502LA.Ⅲ/5, which is a V-type, liquid-cooled, eight-cylinder, four-stroke, turbocharged, intercooled, electronically fuel-injected diesel engine. It has a maximum net power of 420kW/1800r/min and a maximum torque of 2700N · m/1080r/min. The engine model for the vehicle is TAD722VE or TAD750VE, with a maximum net power of 194/2100kW or 181/2100kW, and a maximum torque of 1050/1400N · m or 1050/1500N · m
Transmission: German ZF original imported electronically controlled transmission, with 16 forward gears and 2 reverse gears
Fuel tank capacity: approximately 500 liters
Hydraulic oil tank capacity: approximately 1200L
Tires: Specifications are 385/95R25 and 14.00R25, with a total of 12 tires (excluding spare tires)
Main hoisting mechanism: Single rope tension 147KN, wire rope diameter φ24mm, length 320m
Auxiliary lifting mechanism (optional) : Single rope tensile force 130KN, wire rope diameter φ24mm, length 220m
Full extension time of the boom: 650 seconds
Maximum rotational speed: 1.6r/min
Lifting speed: 115m/min for the main lifting mechanism
Outrigger distance (full extension) : 9.625m longitudinally, 8.7m laterally
Basic boom lifting height: 12.6 meters
The longest main boom lifting height: 65.6 meters
The maximum lifting height of the longest main boom + auxiliary boom (12m) is 78.1m
The maximum lifting height of the longest main boom plus auxiliary boom (20m) is 85.7 meters
The tail turning radius of the counterweight: 4800mm
Maximum driving speed: 71km/h
Minimum stable driving speed: 2.1km/h
Minimum turning diameter: 24 meters
Minimum ground clearance: 280mm
Approach Angle: 25°
Departure Angle: 18°
Braking distance (with an initial braking speed of 30km/h) : ≤10 meters
Maximum climbing ability: 48%
External noise during acceleration: 84dB (A)
Driver's ear noise: 90dB (A)
