INFO

Type of Product Group
All terrain cranes
Brand / model

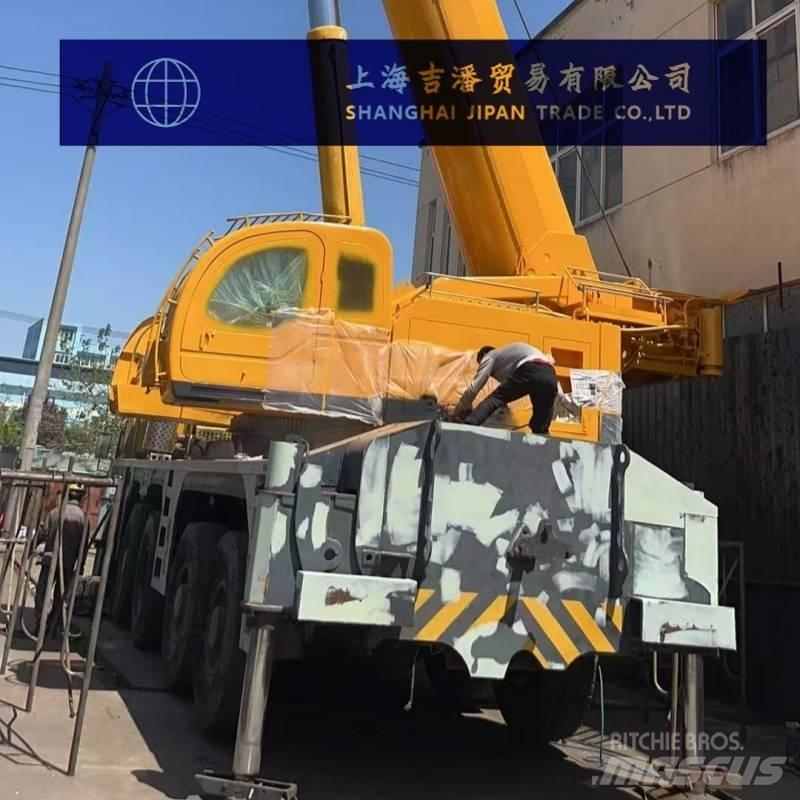

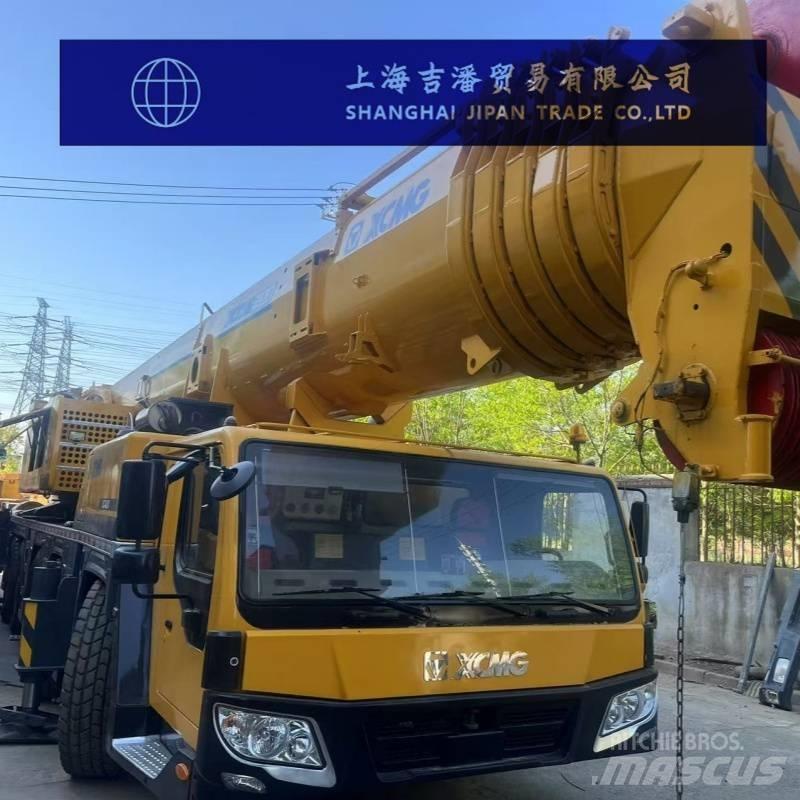

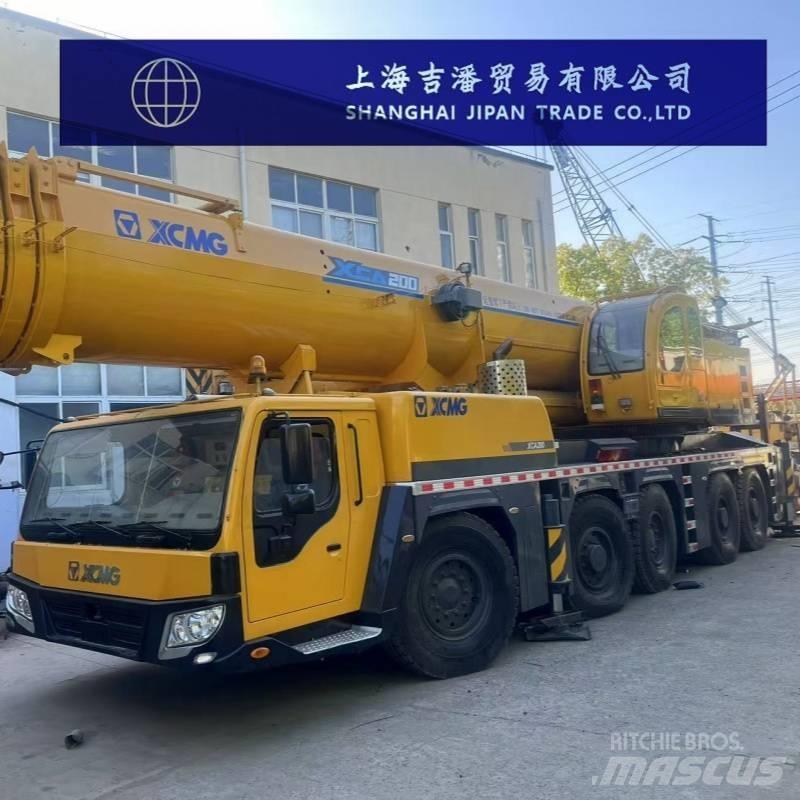

XCMG XCA 200
Year of Production
2021
Hours of operation
3,000 h
Country
China
General grade
1
2
3
4
5
Mascus ID
6CEAC4AF

PRICE

Currency selection

ITEM DETAILS

Internal stock no.
1
Last Inspection Time
2025-07-10
Manufacturing / Serial number
1
Amount of previous owners
1
Gross Weight
150,000 kg
Maximum lift capacity
200,000 ton
Registration number
1
Max lifting capacity at end of jib
200,000 ton
Min boom length
14 m
Emission level
Stage V / Tier V
Boom length
16 m
Min luffing jib
3 m
Luffing jib
15 m
Jib length of crane
15 m
Maximum lift height
84 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
14 m
Upper engine
Benz
Upper hours
857 h
Crane type
Hydraulic jib
Original colour
Original
Counterweight
14000
Carrier engine
Original
Engine manufacturer
Original
Transport dimensions (LxWxH)
15350 x 3000 x 3950 mm
Carrier type
Wheeled
Condition info/guarantee
Good Condition
Tyre brand
米其林
Front tyres remaining
98
Rear tyres remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib,Hook,Counter Weight,ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Extra information
Basic parameters The overall length of the machine is 15,350mm Overall width of the machine: 3000mm Overall height of the machine: 3950mm Wheelbase: 2650/1650/2900/1650mm Wheel base: 2590/2590/2590/2590/2590 mm Axial load: 11650/11650/11650/10020/10020 kg Maximum driving speed: ≥80km/h Minimum stable driving speed: 1-1.5km/h Minimum turning diameter: ≤18.5m Minimum ground clearance: 307mm Approach Angle: 18° Departure Angle: 14° Fuel consumption per 100 kilometers: 72 liters Longitudinal span of outriggers: 9.19m Maximum rotational speed: ≥1.5r/min The turning radius at the tail of the turntable (at the counterweight point) : 5100mm Full extension time of the boom: ≤720 seconds Engine parameters Chassis engine model: MC13.54-50/MC13.54-61 The rated power of the chassis engine is 338kW The rated power of the engine on the vehicle is 221kW Lifting capacity parameters Maximum rated total lifting capacity: 200 tons The maximum lifting moment of the basic boom is 6,657 kN·m Longest main arm: 90 meters Fixed auxiliary arm: 18.5m The maximum length of the main boom and auxiliary boom is 118.5 meters Job performance parameters Working range: The maximum working range is 84 meters Load-bearing extension and retraction: The main arm can extend and retract under load at any point within the working condition range. The comprehensive performance is no less than 40% of the rated load, and the maximum performance is 70% of the rated load. It has a wide construction range and the efficiency is increased by 30% to 50% Variable support: Supports any combination of outrigger extension lengths, flexible operation, safe and stable Full-action wireless remote control: Operated by a single person, it can achieve the disassembly and assembly of counterweights, foot pads, and auxiliary arms, reducing operational cost input Other parameters Hydraulic system: Utilizing advanced hydraulic technology, the system features high working pressure and large flow rate, ensuring that all movements of the crane are completed smoothly, quickly and accurately. Electrical system: Equipped with an intelligent electrical control system, it features functions such as fault diagnosis and automatic protection, enhancing the reliability and safety of the crane. Safety devices: A variety of safety devices are installed, such as overload protection devices, moment limiters, height limiters, amplitude limiters, anti-overturning devices, etc., to ensure the safety of the crane during operation
