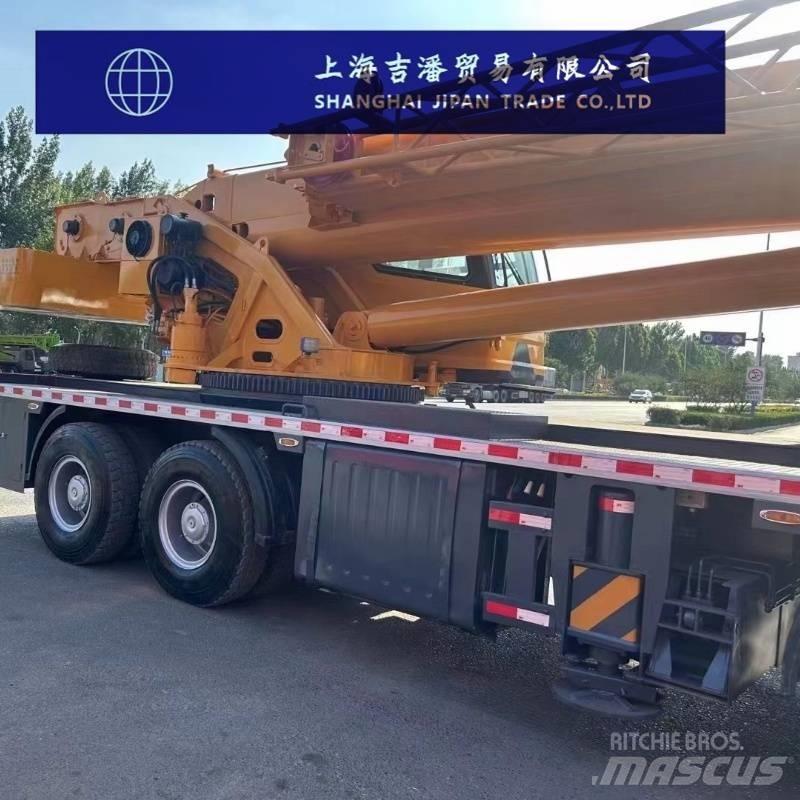

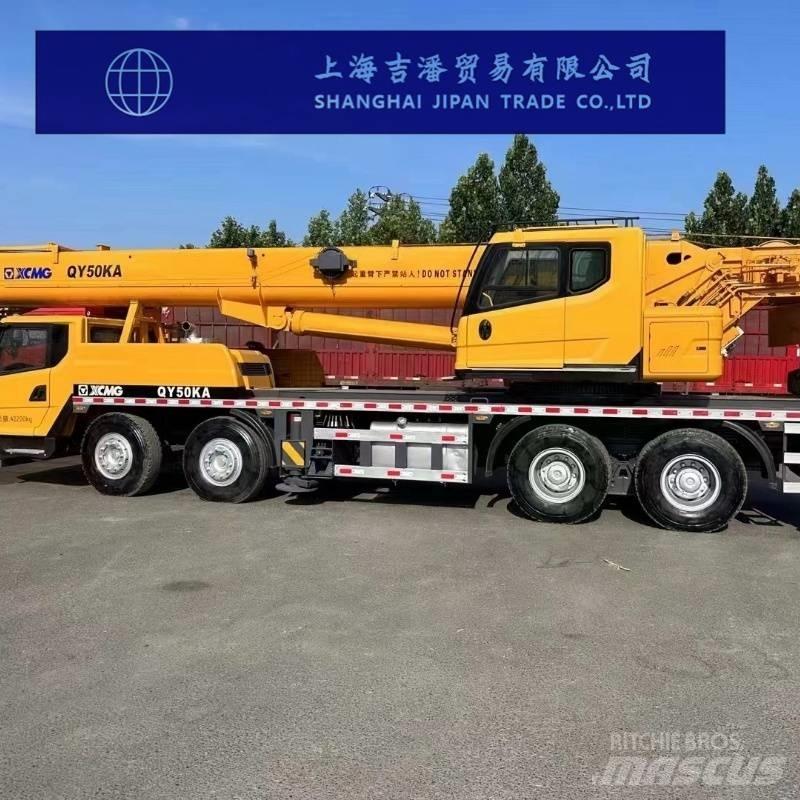

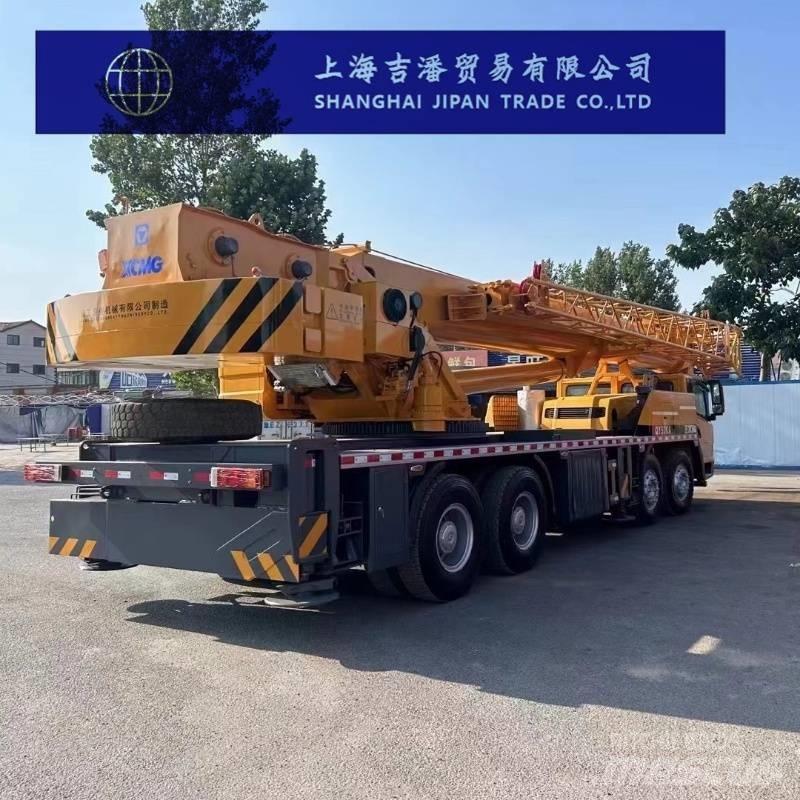

XCMG QY 50 KA
Price excl. GST
Print
INFO
Type of Product Group
All terrain cranes
Brand / model
XCMG QY 50 KA
Year of Production
2021
Hours of operation
2,000 h
Country
China
General grade
1
2
3
4
5
Mascus ID
5EFFDCE7
PRICE
Currency selection
ITEM DETAILS
Internal stock no.
1
Last Inspection Time
2025-07-10
Manufacturing / Serial number
1
Amount of previous owners
1
Gross Weight
58,000 kg
Maximum lift capacity
50,000 ton
Registration number
1
Max lifting capacity at end of jib
50,000 ton
Min boom length
14 m
Emission level
Stage V / Tier V
Boom length
16 m
Min luffing jib
3 m
Luffing jib
15 m
Jib length of crane
15 m
Maximum lift height
44 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
14 m
Upper engine
Benz
Upper hours
857 h
Crane type
Hydraulic jib
Original colour
Original
Counterweight
14000
Carrier engine
Original
Engine manufacturer
Original
Transport dimensions (LxWxH)
12680 x 2500 x 3400 mm
Carrier type
Wheeled
Condition info/guarantee
Good Condition
Tyre brand
米其林
Front tyres remaining
98
Rear tyres remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib,Hook,Counter Weight,ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Accessories
Hook blocks
Extra information
Detailed parameters of XCMG QY50KA truck crane
Dimensional parameters
The overall length of the machine is 13,770mm
Overall width of the machine: 2800mm
Overall height of the machine: 3570mm
Wheelbase: 1470+4105+1350mm
Track: 2304/2304/2075/2075mm
Weight parameter
Total mass in driving condition: 42,000 kg
Axle load: Front axle 16,000 kg/rear axle 26,000 kg
Engine parameters
Engine type: D10.38 A - 40 / SC10E380. 1 q4 / WP10.375 E41
Rated engine power: 276/2200kW, 279/2200kW
Engine rated torque: 1500N·m/ (1100-1600) r/min, 1500N·m/1300r/min, 1480N·m/ (1200-1600) r/min
Driving parameters
Maximum driving speed: 80km/h
Minimum turning diameter: 24 meters
Minimum turning diameter of the boom head: 28.158 meters
Maximum climbing gradient: 40%
Minimum ground clearance: 327mm
Approach Angle: 17°
Departure Angle: 11°
Braking distance: ≤10 meters
Fuel consumption per 100 kilometers: 42 liters
Main performance parameters
Maximum rated total lifting capacity: 50 tons
Minimum rated amplitude: 3m
The maximum lifting moment of the basic boom is 1822kN·m
The turning radius at the tail of the turntable: 3482mm
Outrigger parameters
Longitudinal: 5.91m
Horizontal: 6.9m (4.7m)
Crane boom parameters
Main arm length: 11.3-42.7 meters
Auxiliary arm length: 9.2m or 16m
The maximum lifting height of the basic boom is 11.5 meters
The maximum lifting height of the longest main boom is 42.7 meters
The maximum lifting height of the longest main boom and auxiliary boom is 57.7 meters
Working speed parameter
Lifting speed - Main lifting mechanism: 85m/min when fully loaded, 130m/min when unloaded
Outrigger retraction and release - horizontal (simultaneously) : 20 seconds
