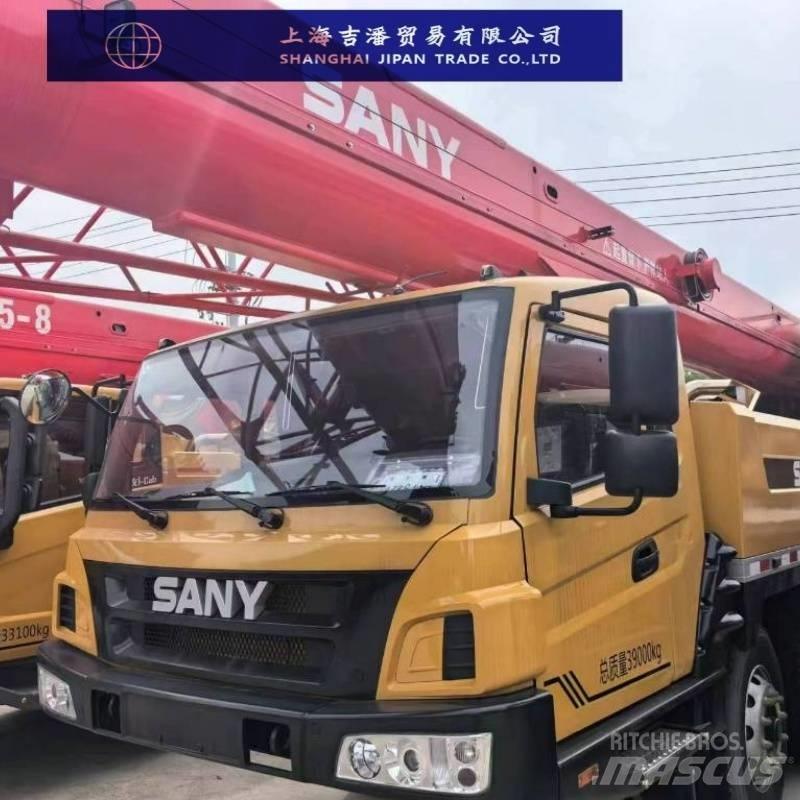

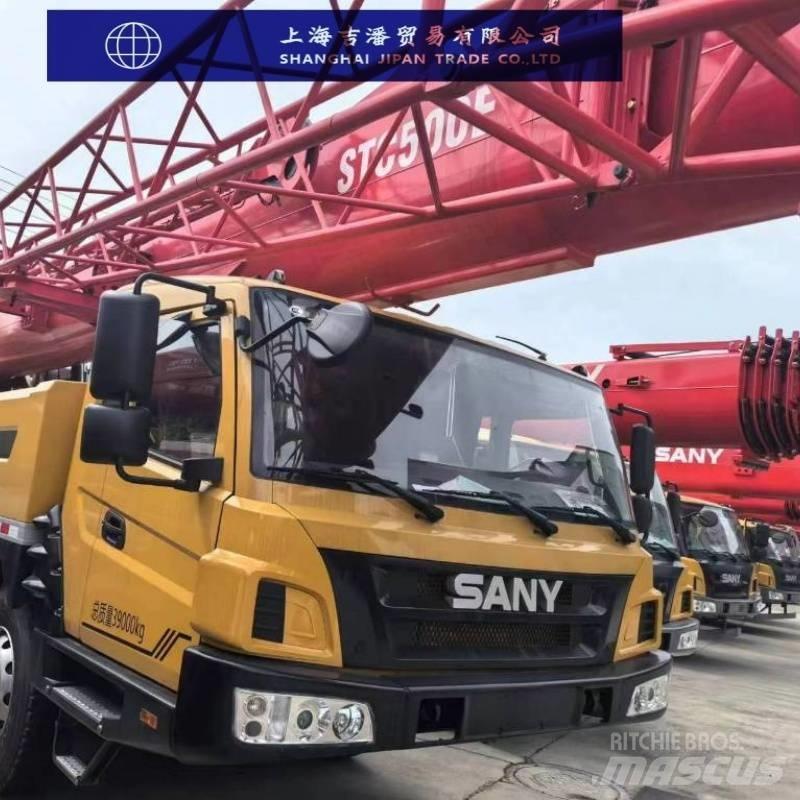

Sany STC500E
Price excl. GST
POA
Print
INFO
Type of Product Group
All terrain cranes
Brand / model
Sany STC500E
Year of Production
2017
Hours of operation
5,542 h
Country
China
General grade
1
2
3
4
5
Mascus ID
FD9D542F
ITEM DETAILS
Last Inspection Time
2025-06-09
Amount of previous owners
1
Gross Weight
39,000 kg
Maximum lift capacity
50,000 ton
Max lifting capacity at end of jib
50,000 ton
Min boom length
15 m
Emission level
Stage V / Tier V
Boom length
14 m
Min luffing jib
14 m
Luffing jib
14 m
Jib length of crane
14 m
Maximum lift height
62 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
15 m
Upper hours
857 h
Crane type
Hydraulic jib
Original colour
original
Carrier engine
4 t
Engine manufacturer
original
Transport dimensions (LxWxH)
13960 x 2650 x 2700 mm
Carrier type
Tracked
Condition info/guarantee
1 year
Front tyres remaining
98%
Rear tyres remaining
2
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib ,Hook ,Counter Weight, ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Fly Jib ,Hook ,Counter Weight, ETC.
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Extra information
起升能力参数
最大额定起重量:50t
最大额定起重力矩:1644kN·m-2107kN·m
最大起升高度 - 全伸臂:45.5m-62m
最大起升高度 - 基本臂 + 副臂:61.5m-62m
作业速度参数
主卷扬最大单绳速度:120m/min-145m/min
起重臂全伸时间:90s-100s
起重臂全缩时间:110s-120s
起重臂全起时间:45s-60s
起重臂全落时间:70s-90s
最大回转速度:2r/min-2.5r/min
发动机参数
发动机型号:玉柴 YCK08330-61、潍柴 WP9H336E62 等
额定功率:243/2200kW/rpm(玉柴 YCK08330-61)、247/1900kW/rpm(潍柴 WP9H336E62)
行驶参数
最高行驶速度:85km/h-90km/h
最小转弯半径:12m
最大爬坡度:45%-47%
接近角:18°-19°
离去角:11°-14°
最小离地间隙:250mm-320mm
整机规格参数
整机全长:13960mm-14420mm
整机全宽:2650mm-2800mm
整机全高:3700mm-3885mm
支腿跨距(横 × 纵):6.05m×7.4m-8.0m×6.24m
重量参数
整机总重量:39000kg-42000kg
最大配重:6t+2.5t-9.8t
