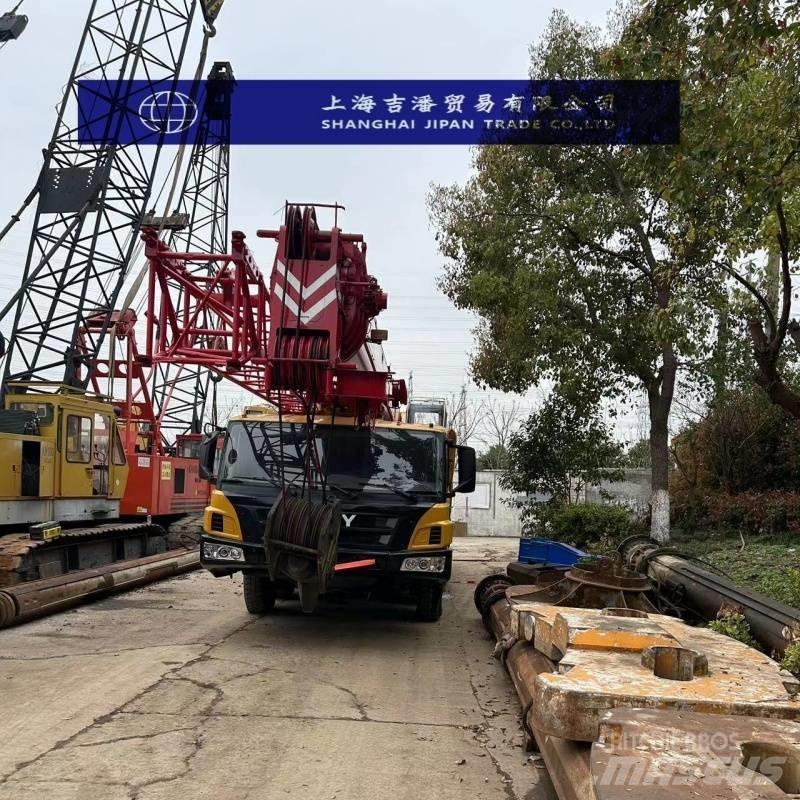

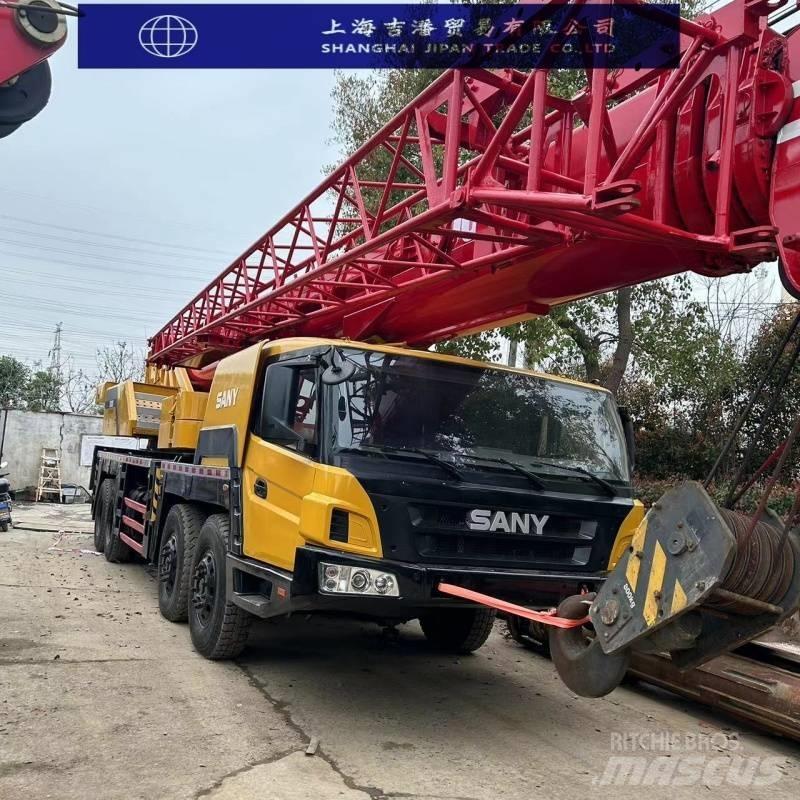

Sany STC 800S
Price excl. GST
POA
Print
INFO
Type of Product Group
All terrain cranes
Brand / model
Sany STC 800S
Year of Production
2018
Hours of operation
4,550 h
Country
China
General grade
1
2
3
4
5
Mascus ID
E3A0729E
ITEM DETAILS
Last Inspection Time
2025-06-10
Amount of previous owners
1
Gross Weight
50,000 kg
Maximum lift capacity
80,000 ton
Max lifting capacity at end of jib
80,000 ton
Min boom length
15 m
Emission level
Stage V / Tier V
Boom length
14 m
Min luffing jib
14 m
Luffing jib
14 m
Jib length of crane
14 m
Maximum lift height
64.7 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
15 m
Upper hours
857 h
Crane type
Hydraulic jib
Original colour
original
Carrier engine
4t
Engine manufacturer
original
Transport dimensions (LxWxH)
15290 x 2800 x 3880 mm
Carrier type
Tracked
Condition info/guarantee
1 year
Front tyres remaining
98%
Rear tyres remaining
2
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Extra information
基本尺寸参数
整机全长:15290mm
整机全宽:2800mm
整机全高:3880mm
动力系统参数
发动机型号:潍柴 WP12.375E50
发动机最大功率:276/1900Kw/rpm
发动机最大输出扭矩:1800/1000-1400N.m/rpm
行驶性能参数
最高行驶速度:80Km/h
最小转弯半径:12m
最大爬坡度:44%
接近角:≥10°
离去角:≥14°
百公里油耗:≤44L
起重能力参数
最大额定总起重量:80t
最大起重力矩 - 基本臂:3293kN.m
最大起重力矩 - 最长主起重臂:1803kN.m
支腿跨距(横向 × 纵向):8×6.43m
起重臂参数
起重臂长度 - 基本臂:12.96m
起重臂长度 - 最长主起重臂:50m
起重臂长度 - 最长主起重臂 + 副起重臂:67.5m
工作速度参数
主卷扬单绳最大速度(空载):130m/min
副卷扬单绳最大速度(空载):130m/min
起重臂全伸 / 缩时间:140s/160s
起重臂全起 / 落时间:65s/90s
回转速度:0~1.8r/min
其他参数
整机总质量:50000kg
轴荷 - 一、二轴负荷:24000kg
轴荷 - 三、四轴负荷:26000kg
