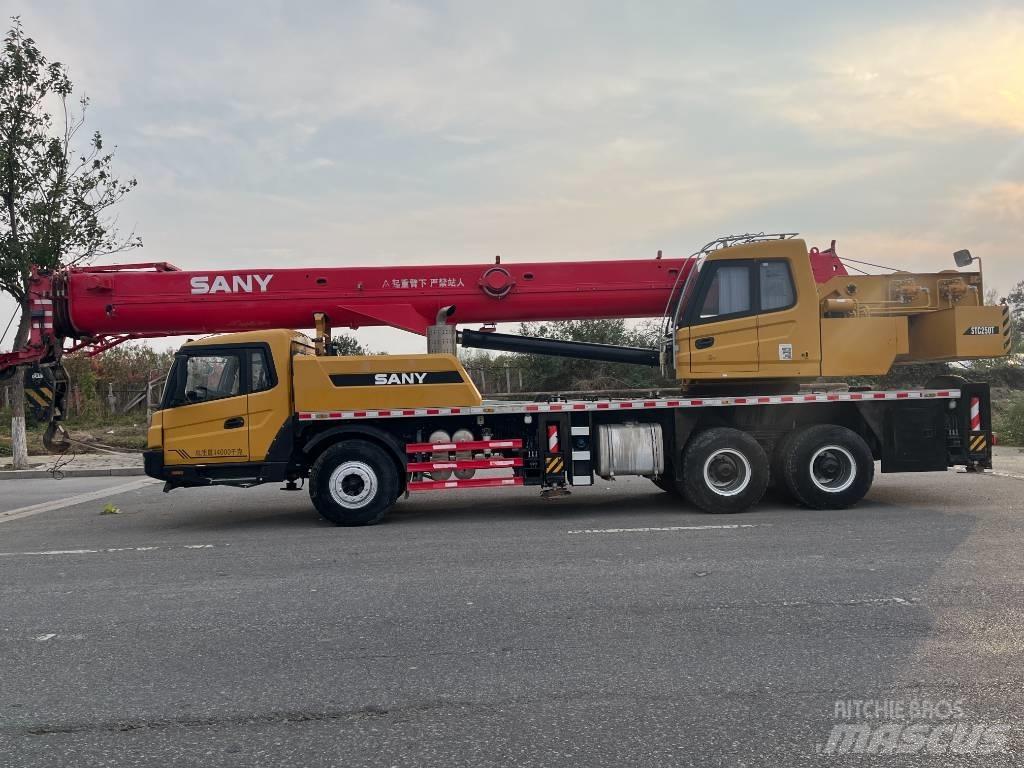

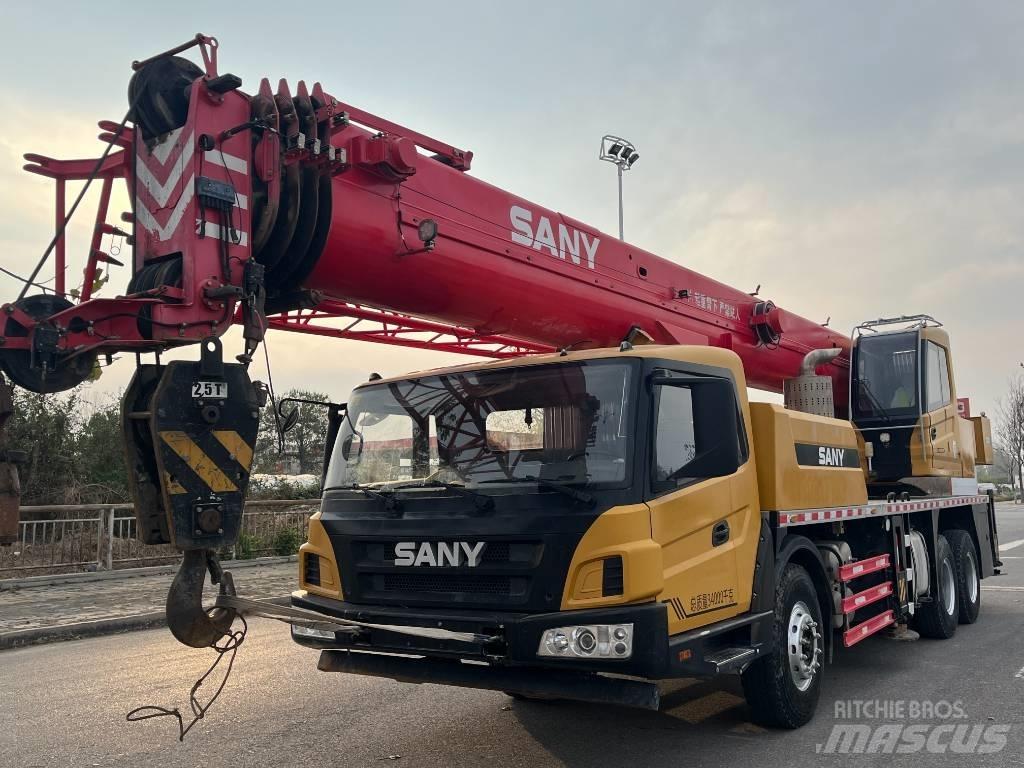

Sany STC 250 S
Price excl. GST
POA
Print
INFO
Type of Product Group
All terrain cranes
Brand / model
Sany STC 250 S
Year of Production
2021
Hours of operation
3,856 h
Country
China
General grade
1
2
3
4
5
Mascus ID
C60A1D84
ITEM DETAILS
Last Inspection Time
2025-05-22
Amount of previous owners
1
Gross Weight
20,900 kg
Maximum lift capacity
25,000 ton
Max lifting capacity at end of jib
20,000 ton
Min boom length
3 m
Emission level
Stage V / Tier V
Boom length
41 m
Min luffing jib
3 m
Jib length of crane
41 m
Maximum lift height
45 m
Crane type
Hydraulic jib
Original colour
Orginal
Engine manufacturer
WEICHAI
Transport dimensions (LxWxH)
1285025003.65 m
Carrier type
Wheeled
Condition info/guarantee
1 Year

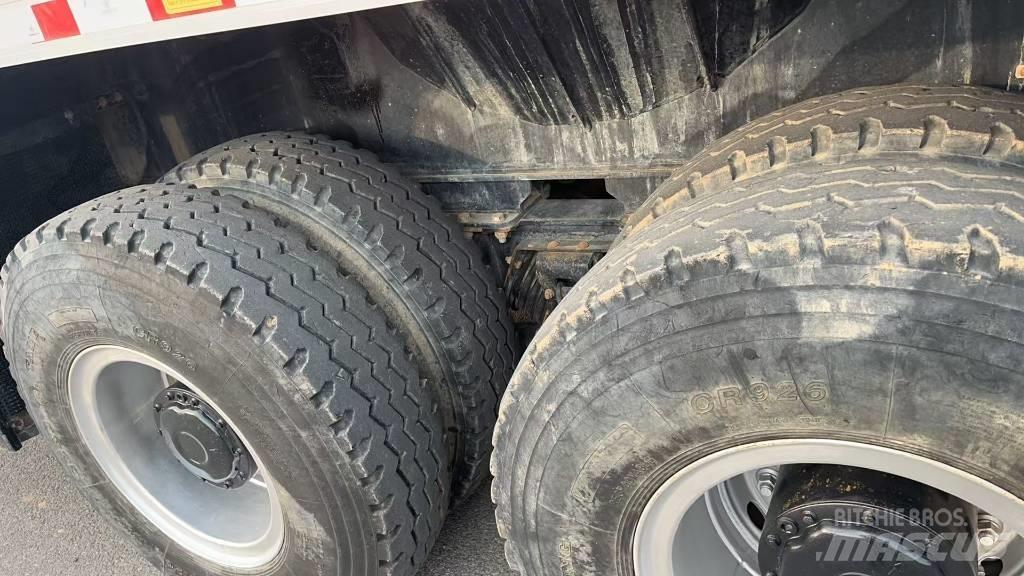

Front tyres remaining
98
Rear tyres remaining
2
Production country
China
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Accessories
Hook blocks
Extra information
整体全长:12850mm
整体全宽:2500mm
整体全高:3650mm
动力参数
发动机最大功率:206/2200、220/2300Kw/rpm
发动机最大输出扭矩:1112/(1300~1500)、1110/(1200~1700)N.m/rpm
行驶参数
最高行驶速度:89Km/h
最小转弯半径:10.5m
最大爬坡度:40%
百公里油耗:34.5L
性能参数
最大起重力矩:基本臂 1029kN.m、最长主起重臂 573kN.m
起升高度:基本臂 11.3m、最长主起重臂 41m、最长主起重臂 + 副起重臂 49m
起重臂长度:基本臂 10.6m、最长主起重臂 40.5m、最长主起重臂 + 副起重臂 48.5m
工作速度参数
主卷扬单绳最大速度(空载第 4 层):130m/min
起重臂全伸 / 缩时间:100/100s
起重臂全起 / 落时间:45/55s
回转速度:2.2r/min
水平支腿全伸 / 缩时间:30/25s
垂直支腿全收 / 放时间:35/30s
其他参数
额定总起重量:25t
支腿纵向 / 横向跨距:6200×5300mm
底盘型号:SYM5323J
总质量:32400kg
整备质量:32270kg
