INFO

Type of Product Group
All terrain cranes
Brand / model
Link-Belt HTC-835
Year of Production
1989
Location
British Columbia, Canada, British Columbia
Country
Canada
General grade
1
2
3
4
5
Mascus ID
63DD65AA

PRICE

Currency selection

ITEM DETAILS

Internal stock no.
936
Maximum lift capacity
35,000 kg
Maximum lift height
2,438 cm
Attachments
https://freecranespecs.com/Link-Belt/HTC-835
Extra information

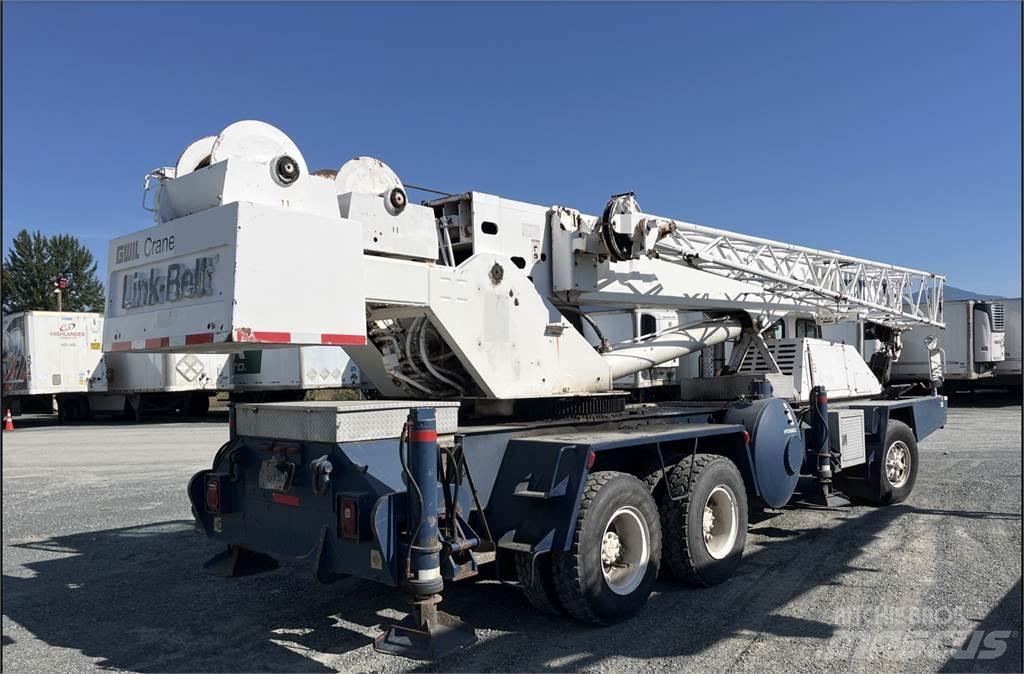

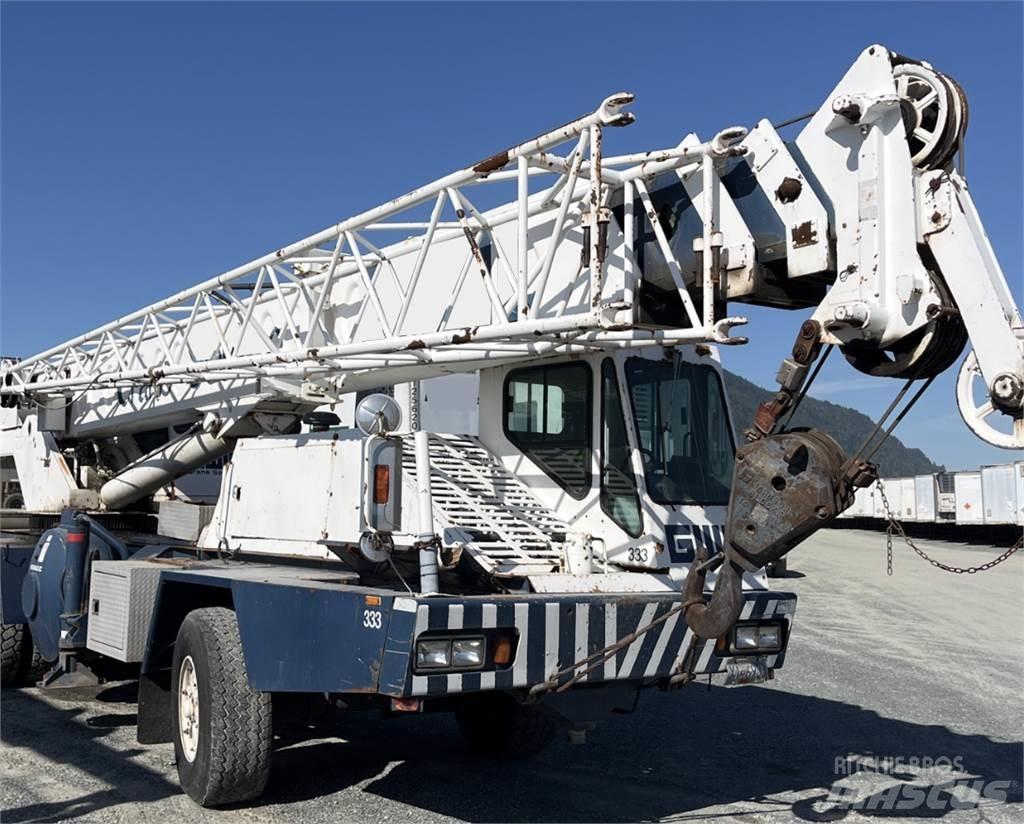

1989 Link-Belt HTC835, 35 Ton Hydraulic Truck Crane; CranesList ID: 936, 32' - 80'  Three Section Boom with Auxiliary Lifting Sheave, 29’ Swing-away Fly (Jib) with 2° offset, Main and *Auxiliary Winches with 5/8" wire rope, Two Speed, LSI GS550 Load Moment Indicator (LMI) with Anti-Two Block, Overhaul Hook Ball,  Johnson, 35 Ton, Four Sheave, 610#, Hook Block, 8’ Wide Link-Belt Carrier With 6 x 4 Drive, GM V8-8 2T V8 8.2 L Diesel Engine,   Fuller Roadranger RT-6613; 13 speeds forward, 3 reverse Transmission,  Front Tires: 16.5 x 22.5 (16 PR) transport type tubeless, Rear Tires: 10.0 x 20F (12 PR) transport type with tube, Power hydraulic, double box, single beam outriggers, front and rear. Vertical jack cylinders, each equipped with integral holding valve. Beams extend to 18' centerline-to-centerline and retract to within 8' overall width. Equipped with stowable 19" square lightweight floats. Controls and sight level bubble located in upperstructure cab, 5th Front Outrigger, Last Certification was in 2023. ... IN BRITISH COLUMBIA, CANADA! Show more
