Bredal

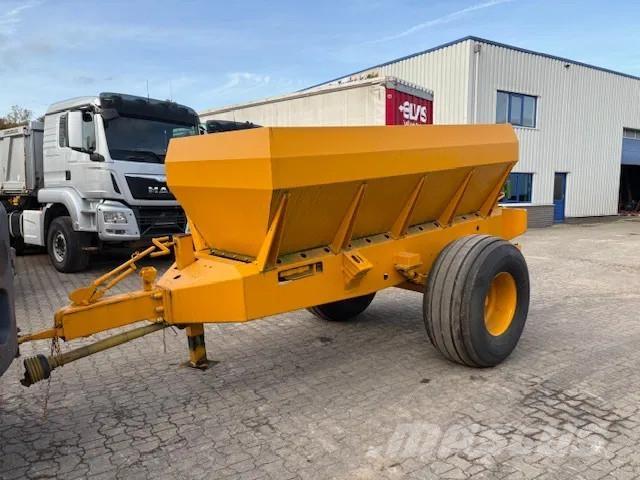

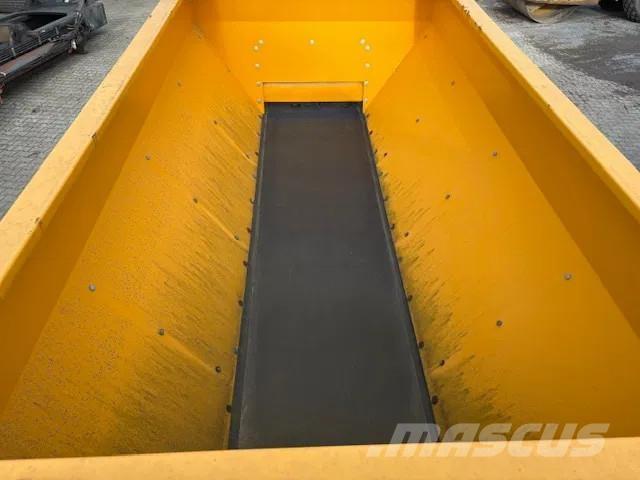

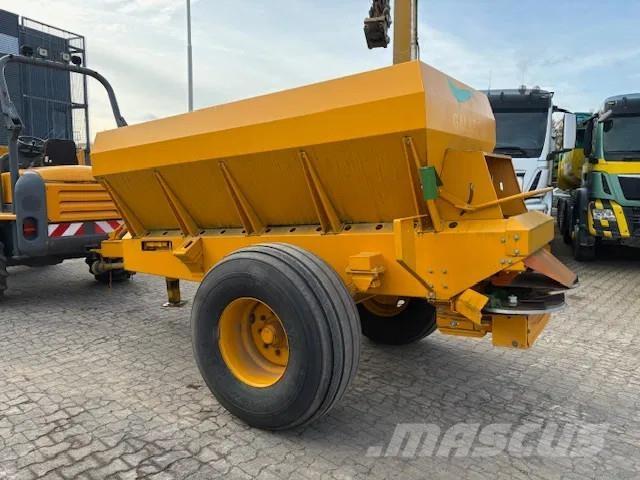

Trailed Twin-Disc Spreader – Heavy Duty General Information Brand: Universal (similar to Bredal / Amazone / Rauch) Type: Trailed twin-disc spreader Version: Heavy-duty, hydraulic drive Application: Fertilizer, lime, sand, salt, or granulate Operation: Mechanical or hydraulic (optional ISOBUS on modern models) Dimensions (own measurements) Hopper length (top): 3.00 m Hopper width (top): 1.32 m Rear opening: 25 cm high x 75 cm wide Total machine length: approx. 4.00 m (including drawbar) Total machine width: approx. 2.00 m Hopper & Capacity Hopper capacity: approx. 7,500–9,400 liters (7.5–9.4 m³) Filling height: approx. 1.50– 1.60 m Hopper material: Steel, thick-walled, heavy-duty Conveyor belt: Rubber floor belt with hydraulic drive Tailgate: Adjustable metering opening (25x75 cm) Performance Spreading width: up to approx. 50–54 m (depending on material and settings) Travel speed during spreading: up to approx. 30 km/h Max. hydraulic operating pressure: 180–200 bar Max. Working capacity: 10–15 hectares/hour (indicative) Chassis Configuration: Single axle or tandem (depending on model) Tire size: approx. 500/50 R17 or equivalent Brake system: Hydraulic or air brakes Coupling: 50 mm towing eye or K80 ball Suspension: Rigid or sprung (heavy-duty model) Weights Net weight: approx. 3,000–5,000 kg (depending on model) Permitted total weight: approx. 8,000–10,000 kg Electronics and options Optional features: Weigh cells (automatic dosing) Border spreading system (AutoTS / hydraulically adjustable) ISOBUS compatible (Rauch / Amazone models) Hydraulic cover Work lights and LED beacons Other Color: Yellow (as per your photo) Condition: Used, heavy-duty Model Notes: Dimensions measured on the machine without the identification plate; specifications based on the heaviest class of trailed spreaders (Bredal B8 / Amazone ZG-TS / Rauch Axent). = More information = Technical condition: very good Visual appearance: very good Price: On request Please contact Klaas Gerrits (+31651255444), Henk Gerrits (+31653173689) or Dhr. Gerrits (+31543530199) for more information
